Stanley Meyer VIC Driver Board for OSE Distribution Version 5.0
by
Dog-One.
2
layer board of
4.28x2.22
inches
(108.74x56.36
mm).
Shared on
February 23rd, 2017 08:37.

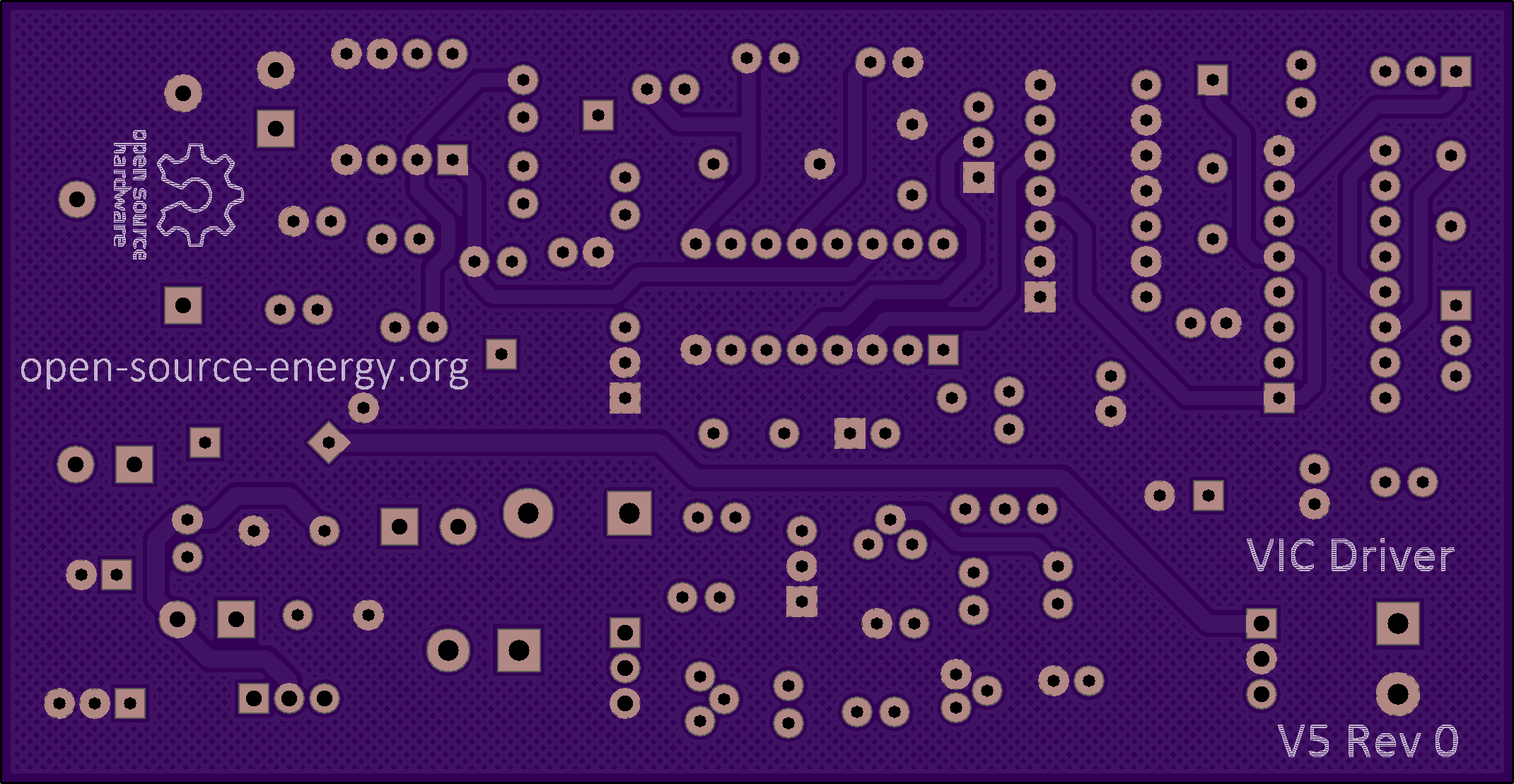

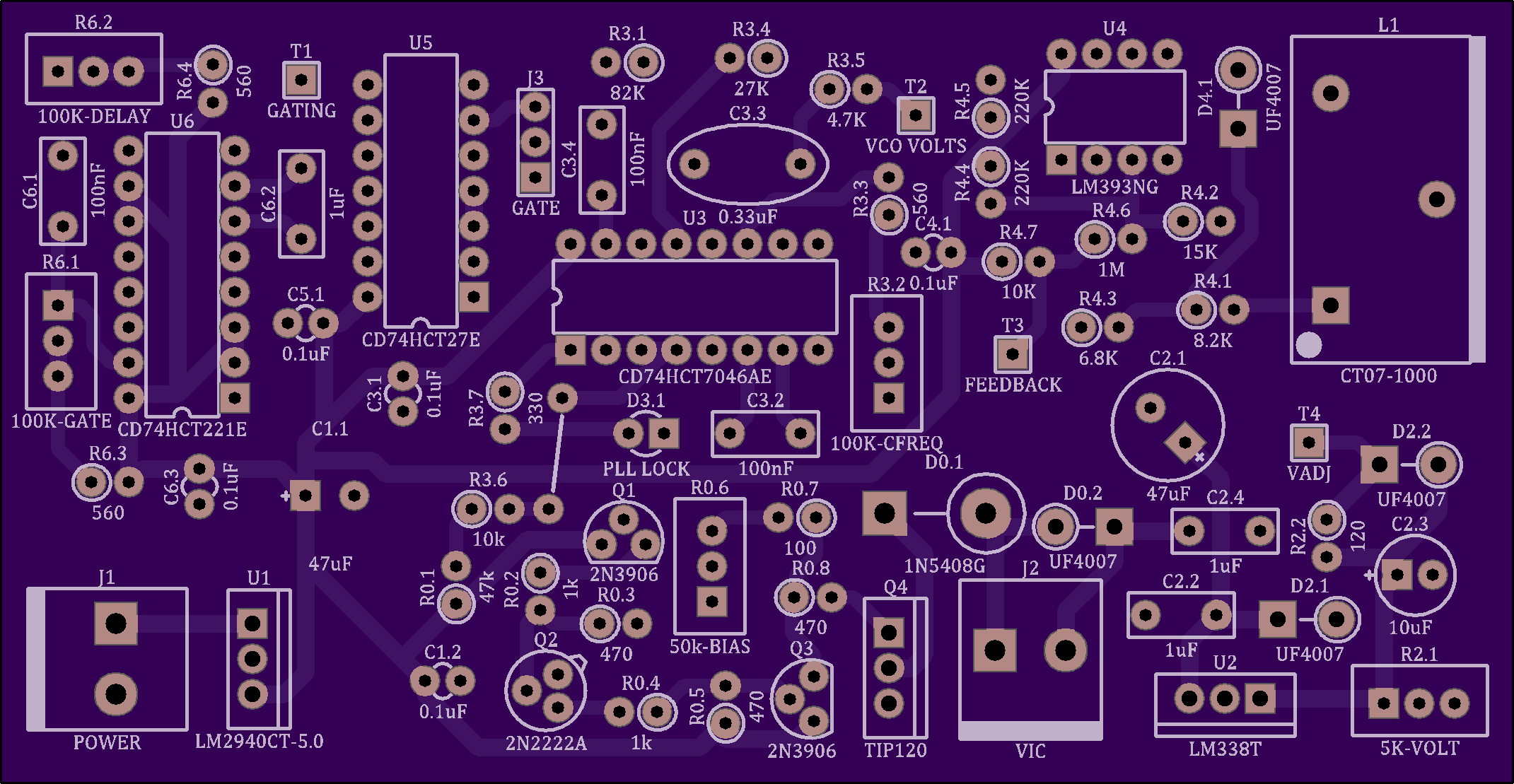

Improved VIC Driver Board Version 5.0
This PCB is a revised driver circuit based on the Stan Meyer estate photos and patent WO9207861A1. It includes gating, PLL and voltage control.
Please read this forum thread for more details: http://open-source-energy.org/?topic=2820.0
