Shared projects

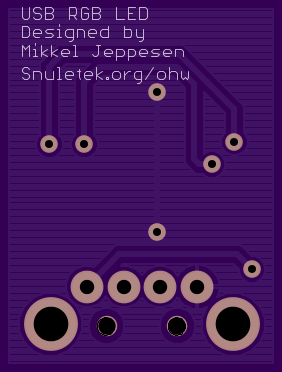

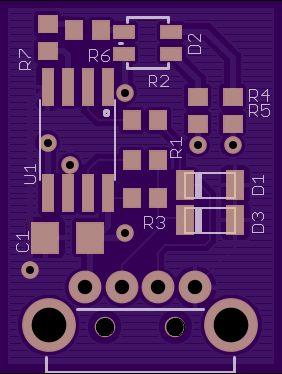

USB RGB LED
by
Dumle29.
2
layer board of
0.71x0.93
inches
(17.96x23.67
mm).
Shared on
June 9th, 2015 17:24.
Just a little board with an RGB LED, intended for use with the micronucleus bootloader for the ATTiny85, which is based on V-USB

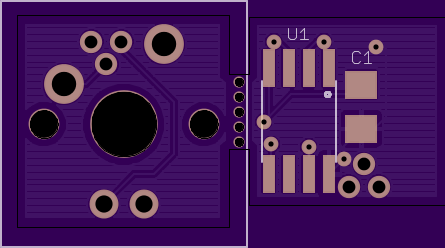

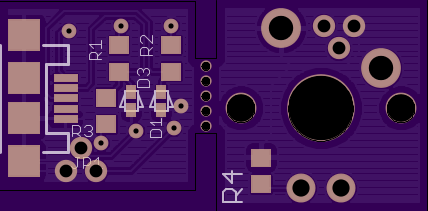

0.96% Keyboard rev 4
by
Dumle29.
2
layer board of
1.07x0.53
inches
(27.20x13.44
mm).
Shared on
June 9th, 2015 14:20.
This is the smallest board so far, in hopes of fitting this in very small cases, and now fits entirely under the switch. The trade-off is that it uses double sided load, and a two board solution.

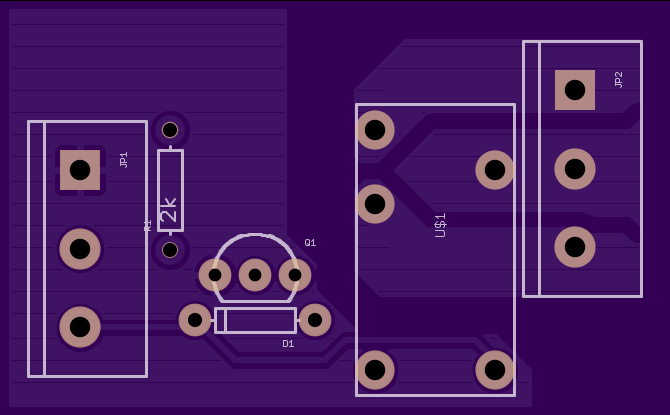

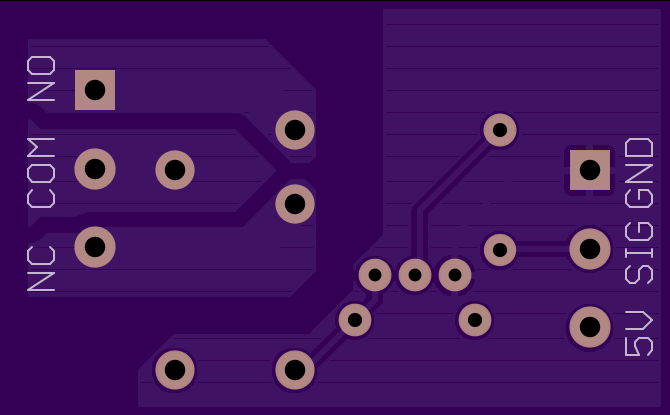

A simple relay board
by
Dumle29.
2
layer board of
1.68x1.04
inches
(42.55x26.37
mm).
Shared on
May 27th, 2015 07:35.
well yeah.

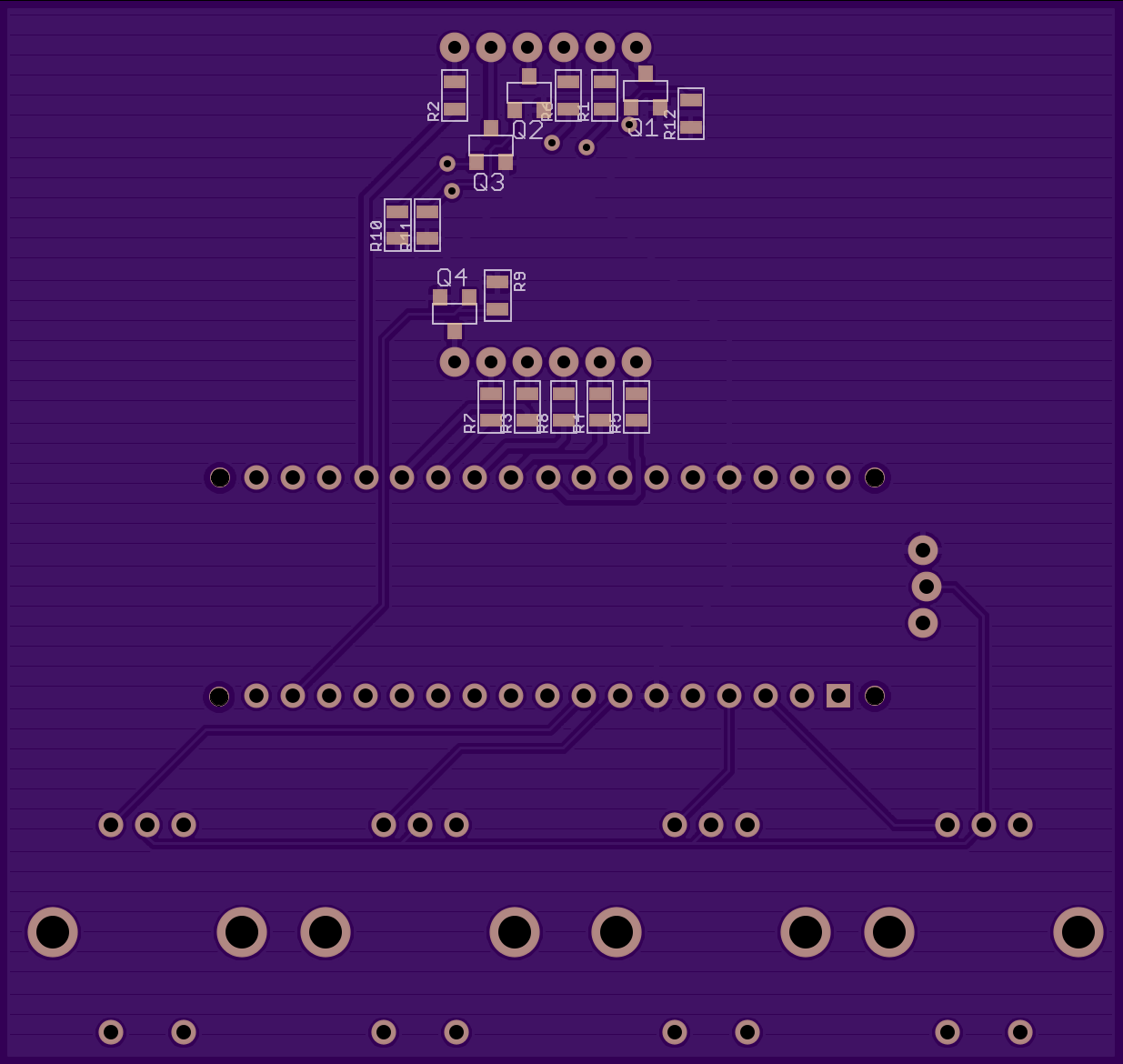

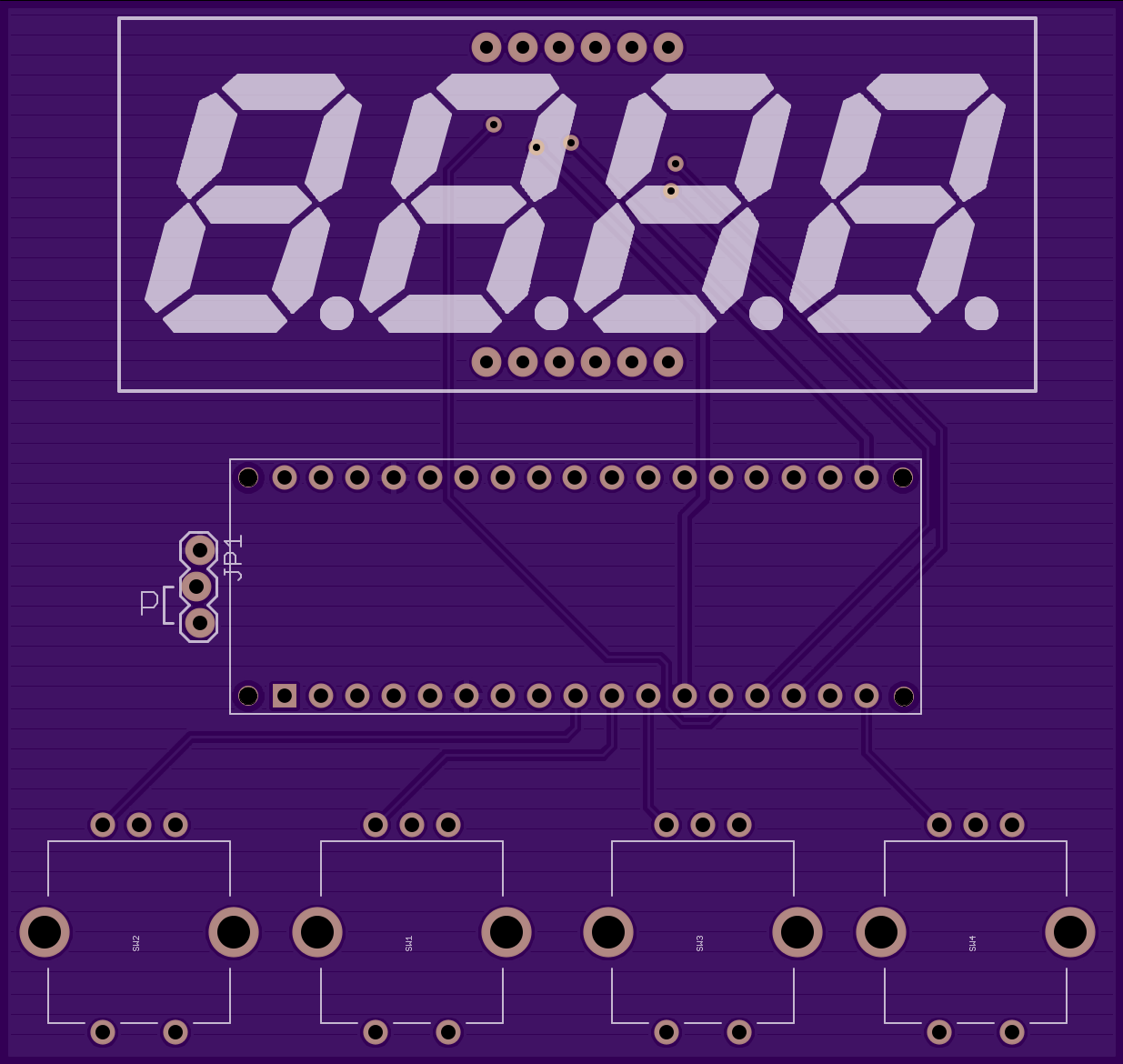

4x7seg + 4 rotary encoders for arduino micro
by
Dumle29.
2
layer board of
3.09x2.93
inches
(78.44x74.30
mm).
Shared on
May 23rd, 2015 02:06.
4x7seg + 4 rotary encoders for arduino micro

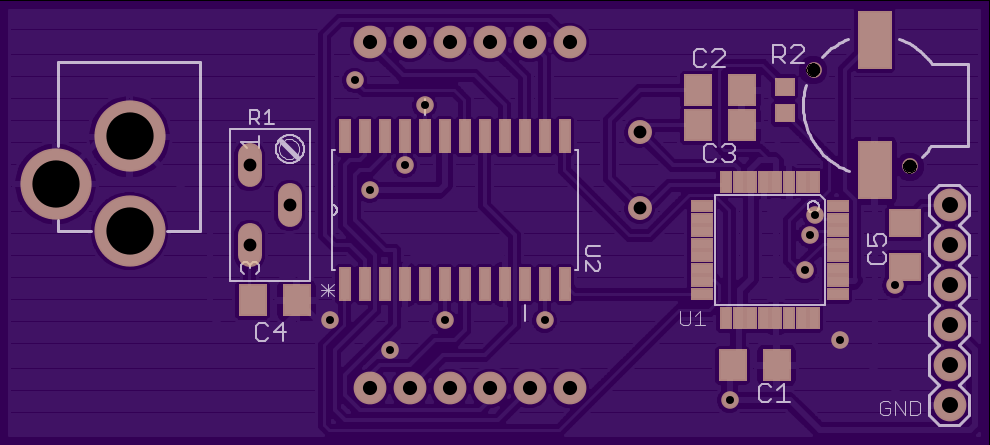

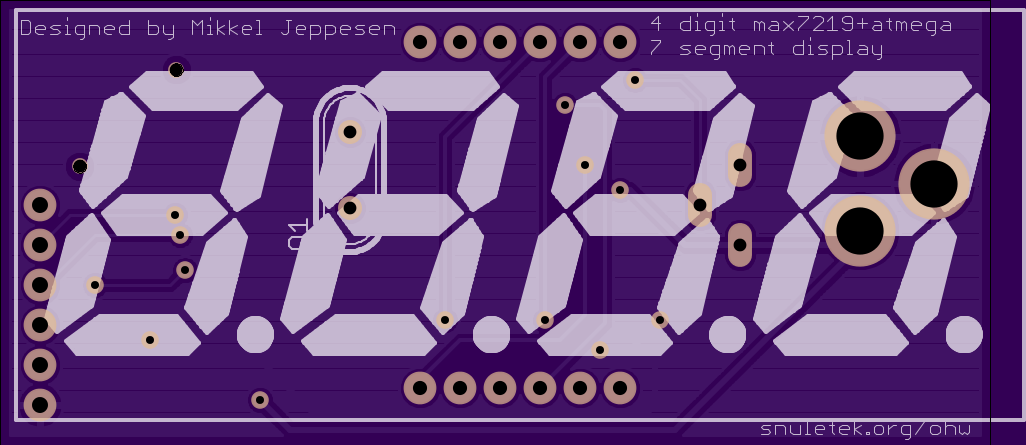

4 digit max7219+atmega 7 segment display
by
Dumle29.
2
layer board of
2.48x1.11
inches
(62.86x28.27
mm).
Shared on
February 17th, 2015 12:45.
A 4 digit 7 segment display driven by a MAX7219 and arduino compatible ATMega328p
