Shared projects

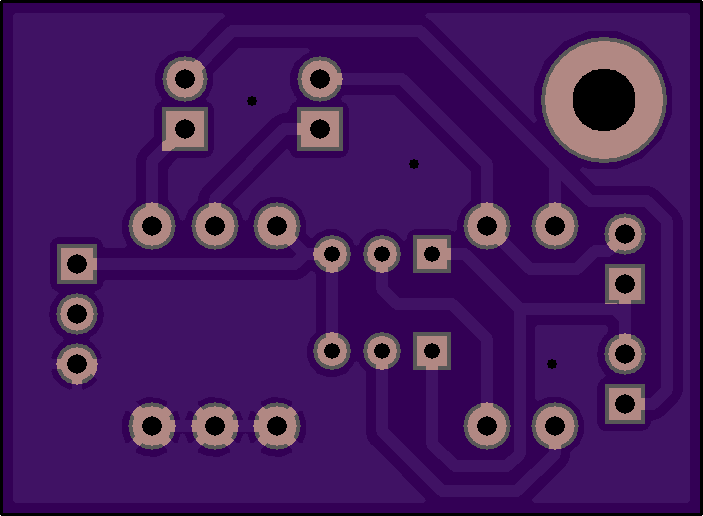

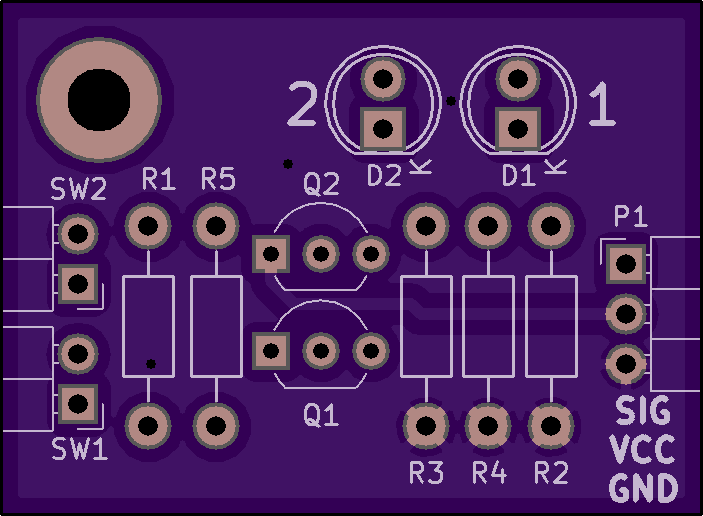

Valdure-sensor.kicad_pcb

by Dumle29.
Top
Bottom

2 layer board of 1.41x1.03 inches (35.71x26.19 mm).
Shared on March 1st, 2017 08:03.

A PCB I made for Valdure. It ORs together two NO switches, while giving a status light for them.

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

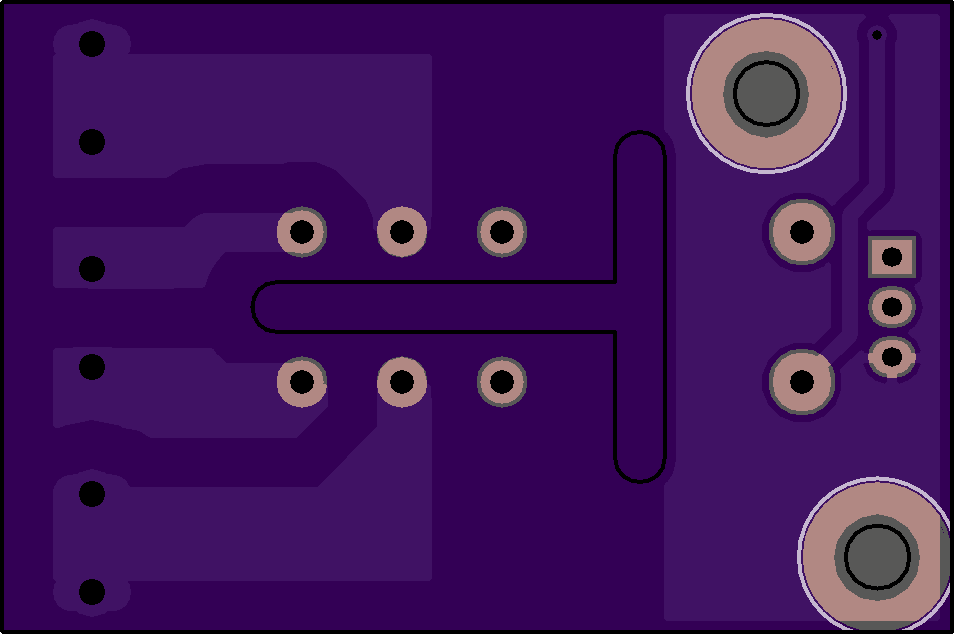

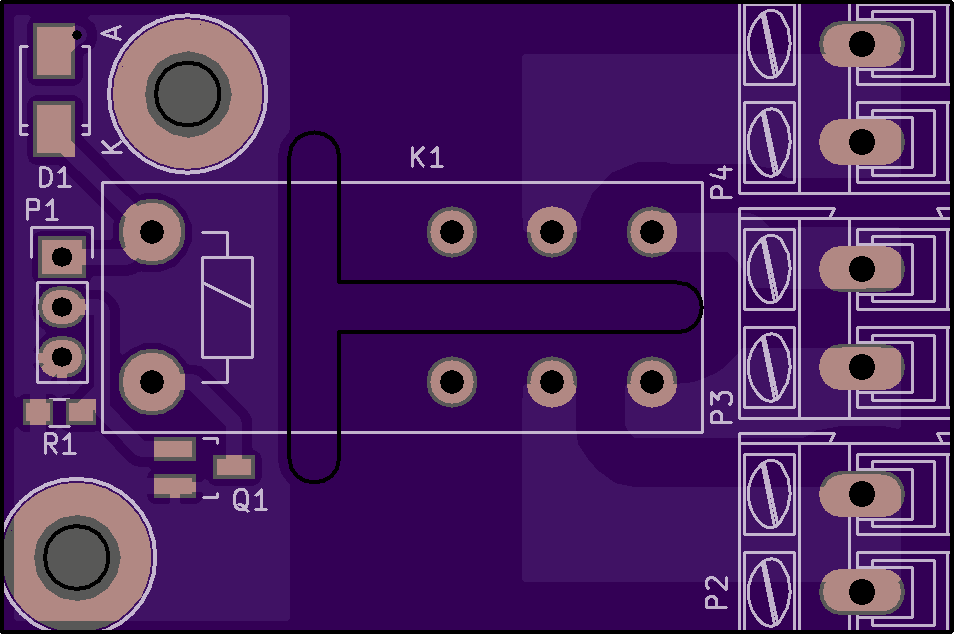

Mains relay

by Dumle29.
Top
Bottom

2 layer board of 1.91x1.27 inches (48.46x32.21 mm).
Shared on September 25th, 2016 14:16.

A board for controlling mains with a FORM C relay. with extra mains connections

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

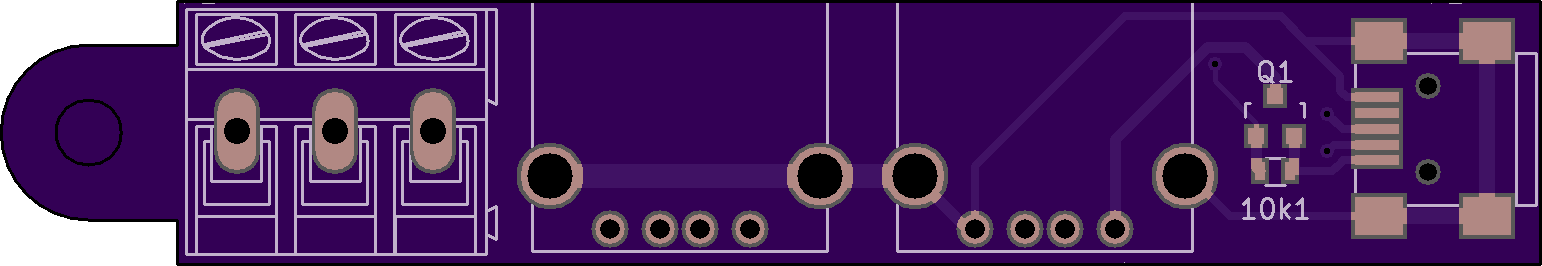

USB-power-board

by Dumle29.
Top
Bottom

2 layer board of 3.08x0.53 inches (78.33x13.49 mm).
Shared on September 25th, 2016 14:16.

A PCB for providing 5v USB power, and for controlling power to a USB device

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

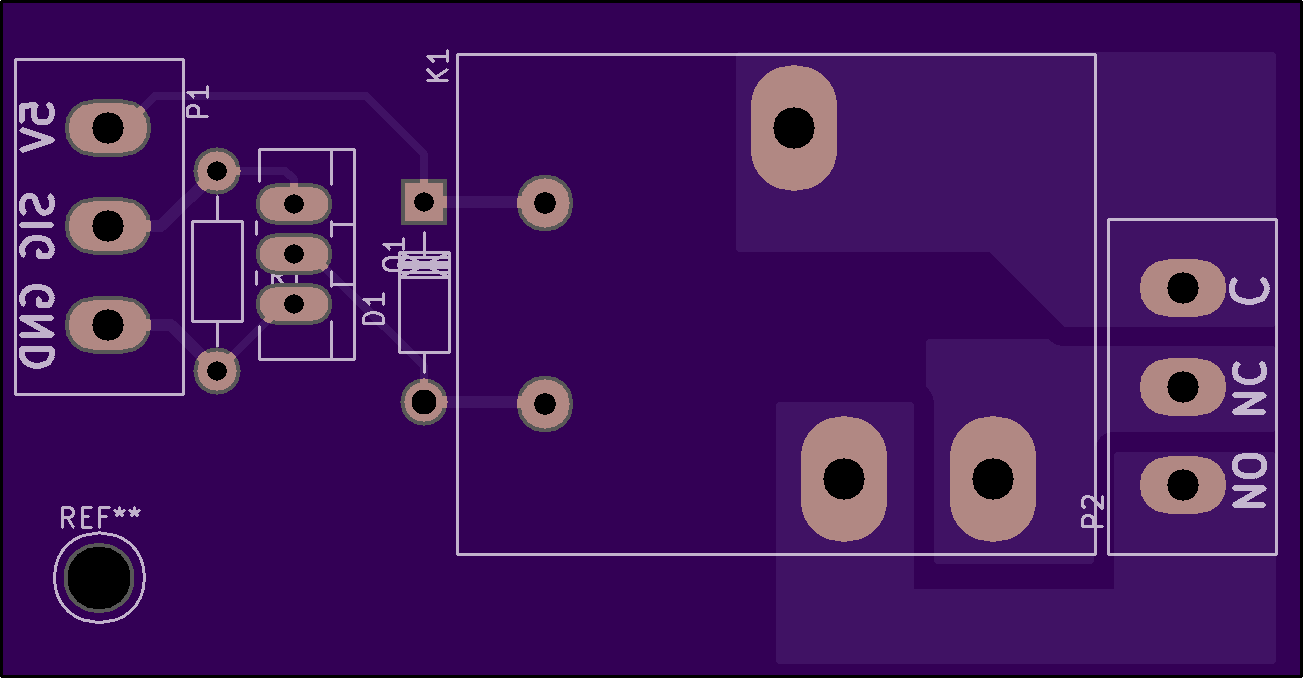

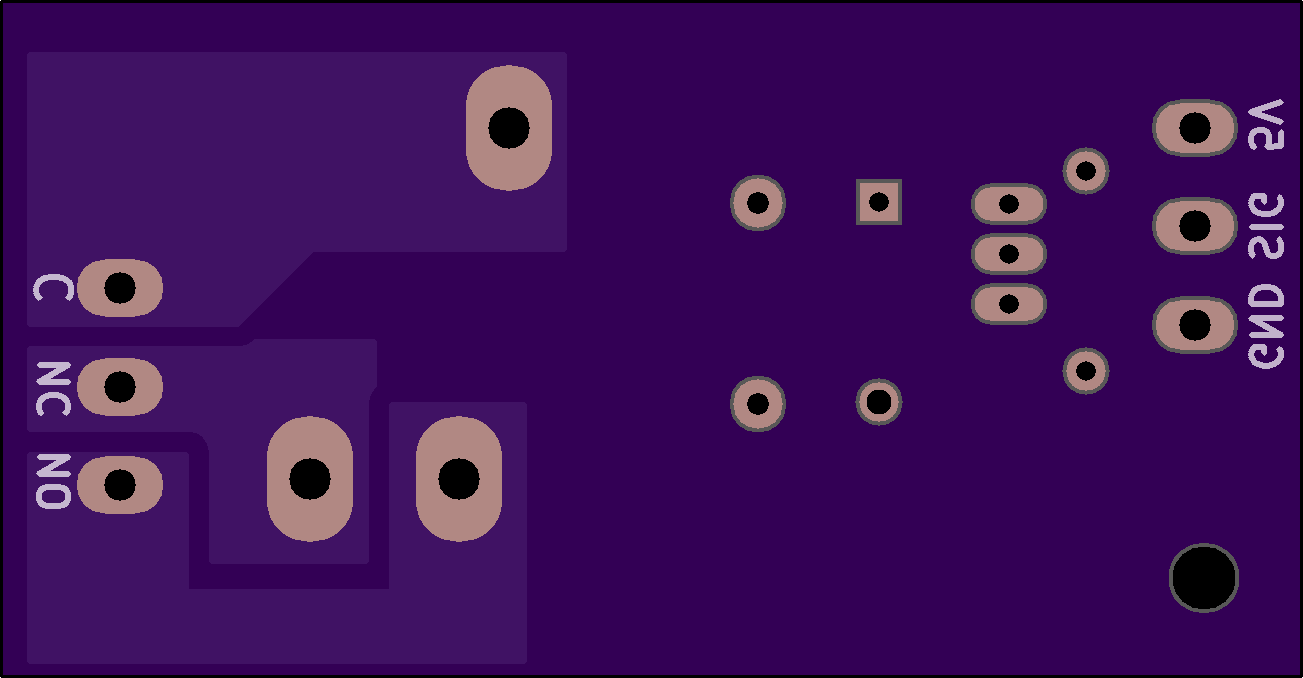

non-isolated.kicad_pcb

by Dumle29.
Top
Bottom

2 layer board of 2.61x1.36 inches (66.19x34.44 mm).
Shared on August 12th, 2016 04:36.

a small relay board

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

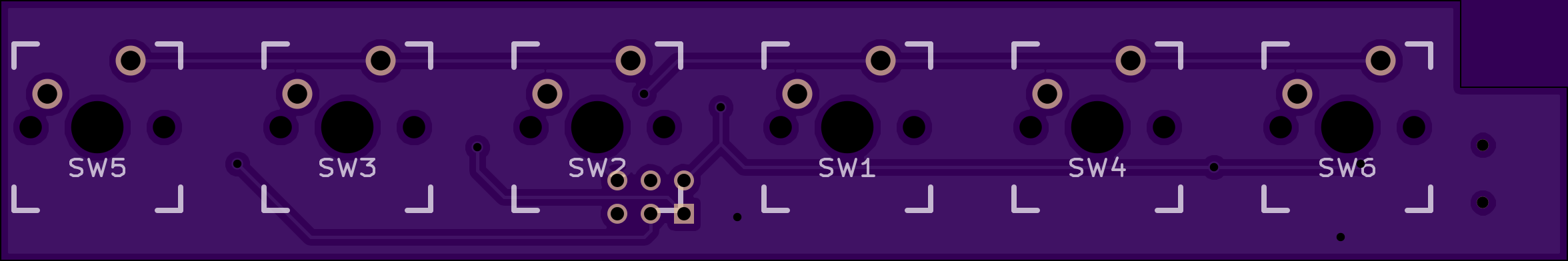

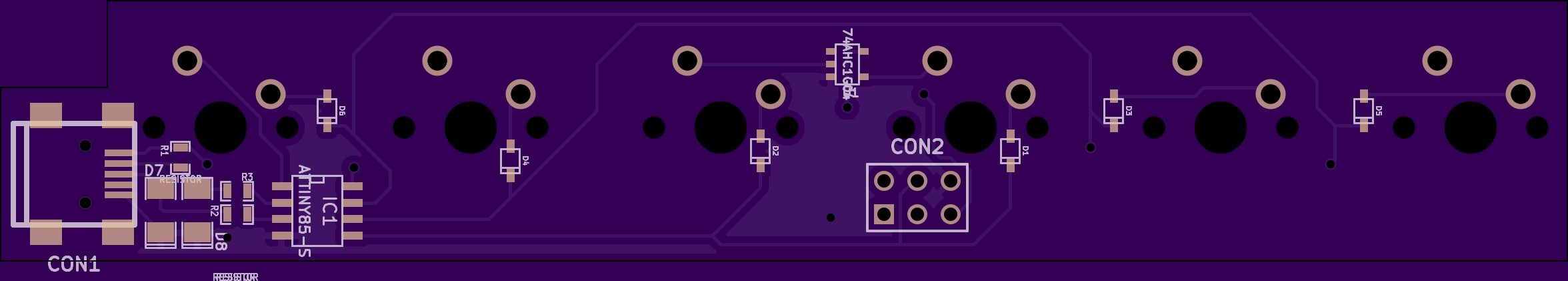

WASD Keytester keyboard

by Dumle29.
Top
Bottom

2 layer board of 4.70x0.78 inches (119.48x19.91 mm).
Shared on October 4th, 2015 22:02.

!!NOT TESTED!! Made as a first project using KiCAD. Mistakes have probably been made.

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project
