Profile for GertSanders
Shared projects
Narrow node v1-1 (atmega328p+nrf24L01SMD)
by
GertSanders.
2
layer board of
1.96x0.45
inches
(49.86x11.46
mm).
Shared on
February 14th, 2016 16:37.

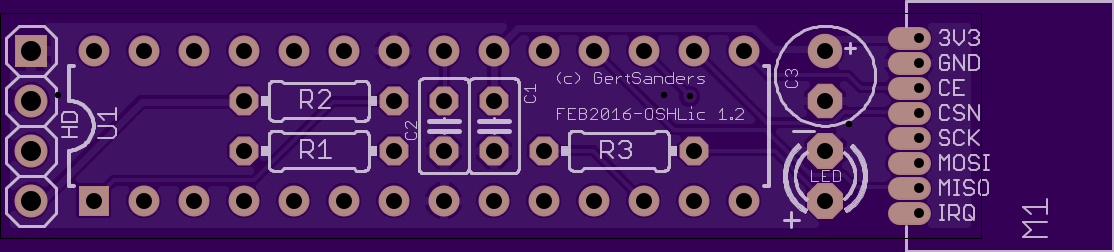

Narrow node v1-1 (atmega328p+nrf24L01SMD) - tested
NRF24L01+ in SMD format, 1 optional pull up resistors and contact for D2, as well as jumpers for I2C ports (A4 and A5) exposed on header.
Assumes use of the internal oscillator and preloaded boot loader/sketch.
No FTDI or SPI.
More info at:
https://www.openhardware.io/view/28/Very-narrow-and-minimal-switch-node
Narrow node v1 (atmega328p+nrf24L01SMD)
by
GertSanders.
2
layer board of
1.96x0.43
inches
(49.86x10.80
mm).
Shared on
January 29th, 2016 19:05.

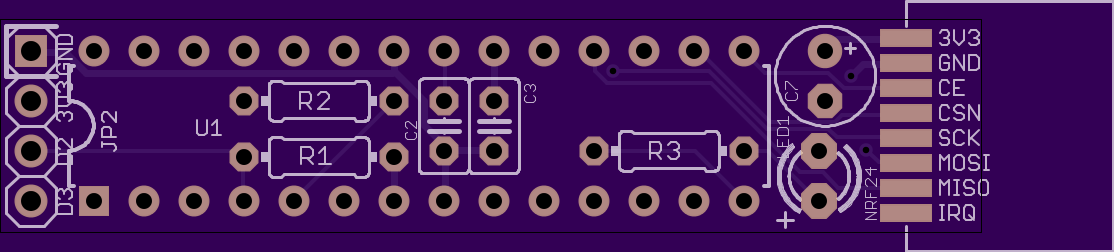

Narrow node v1 - tested
NRF24L01+ in SMD format, 2 optional pull up resistors and contacts for D2 and D3 connection, as well as 3V3 and GND. Assumes use of the internal oscillator and preloaded boot loader/sketch.

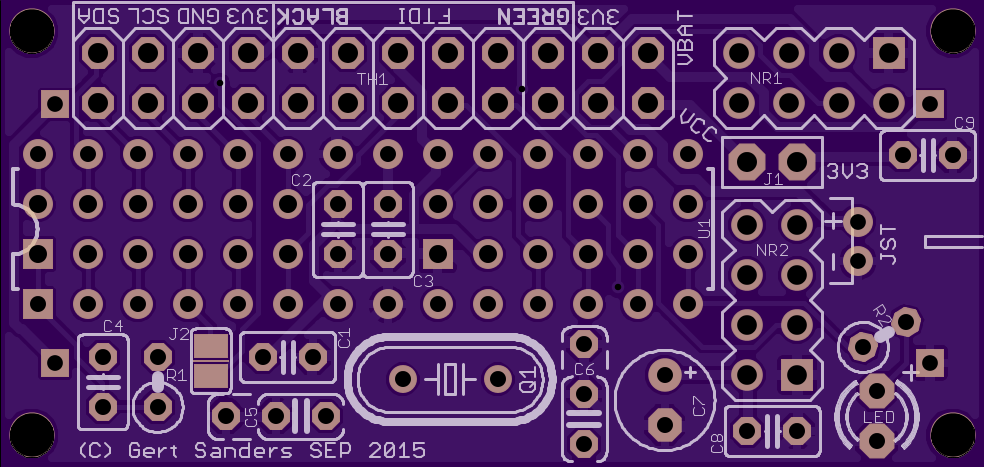

Low Power Node PTH v2 (atmega328p and NRF24L01+)
by
GertSanders.
2
layer board of
1.97x0.94
inches
(50.01x23.75
mm).
Shared on
October 14th, 2015 19:19.
Low Power Node PTH v2 (atmega328p and NRF24L01+)

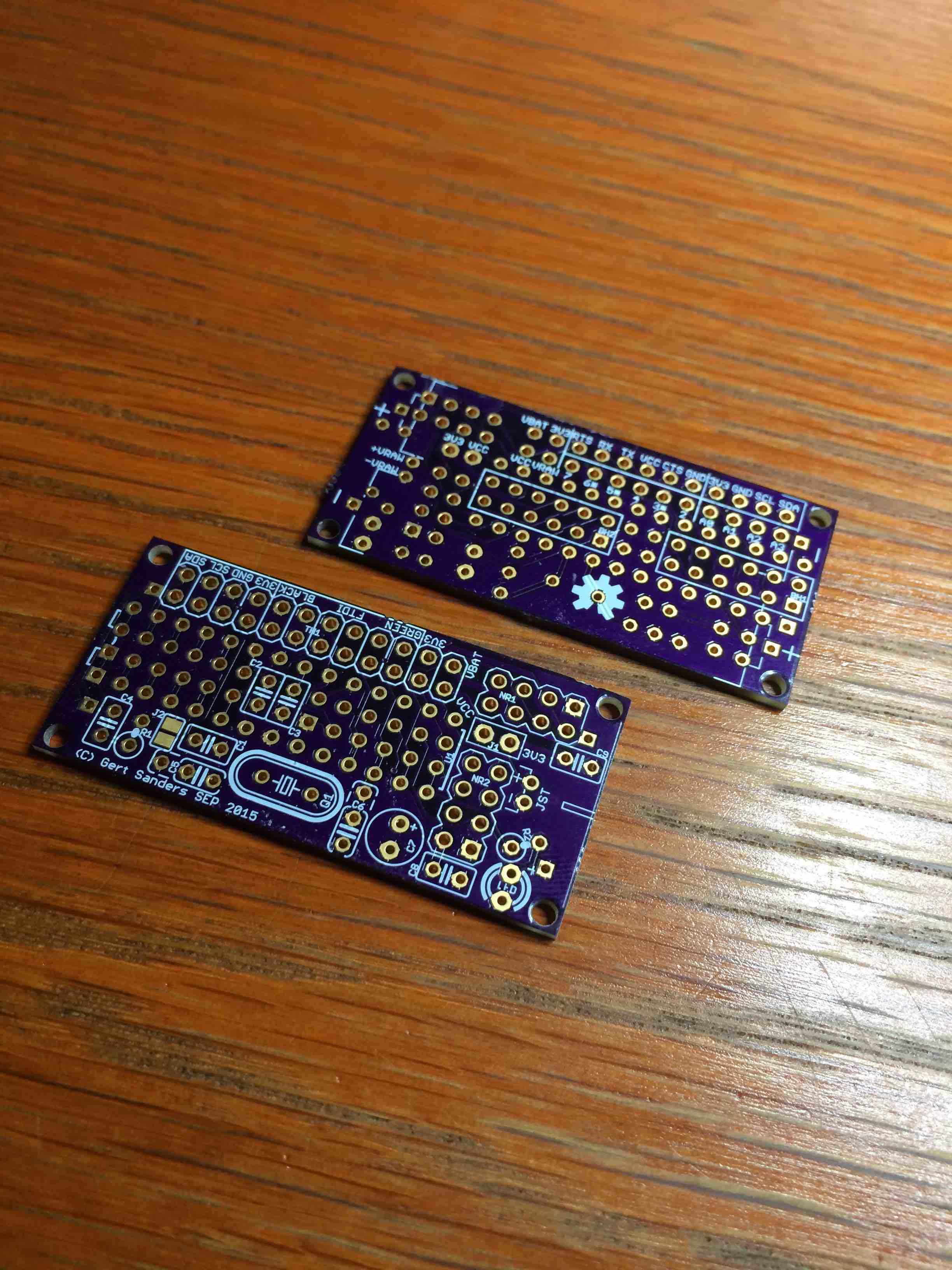

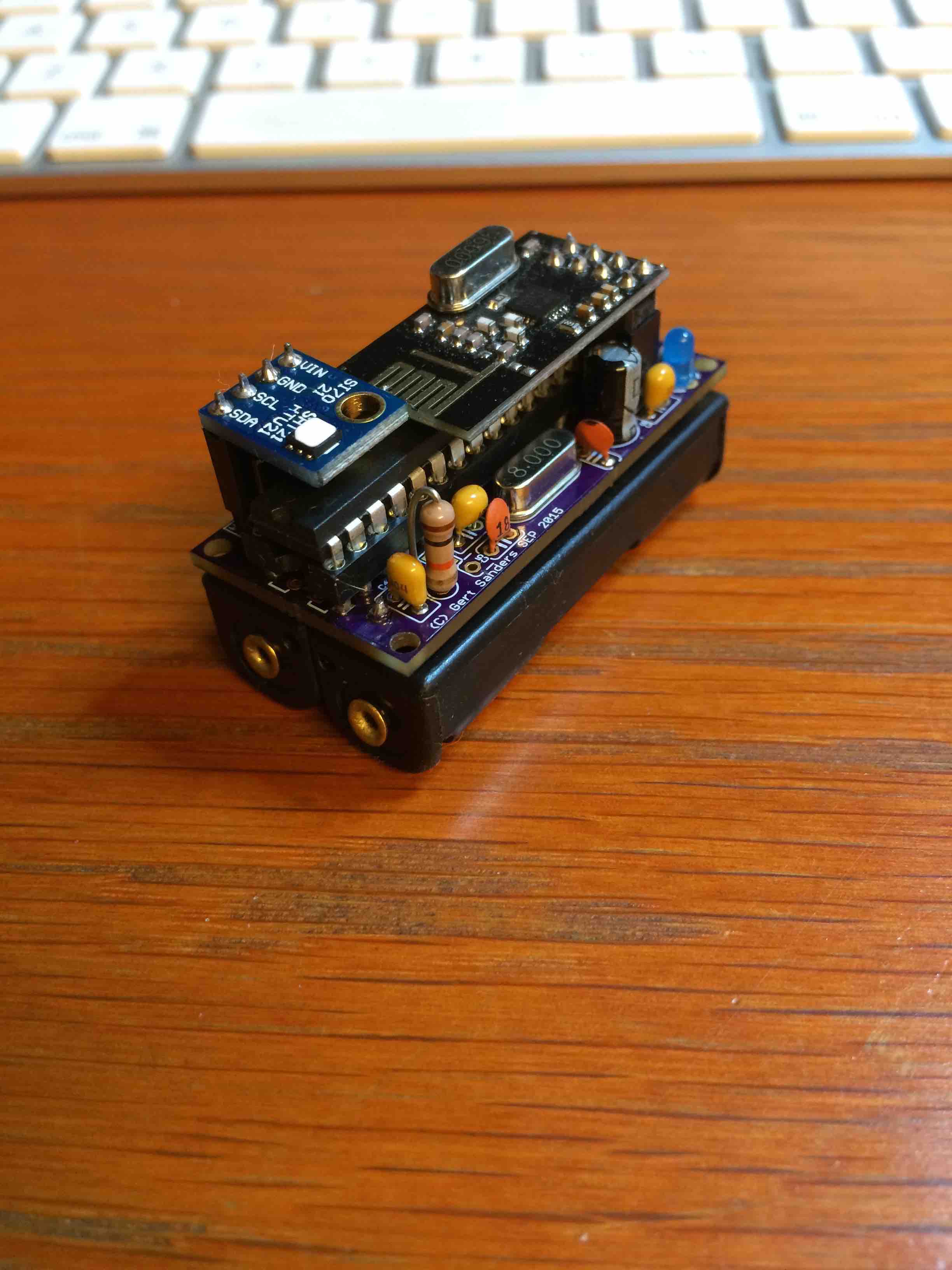

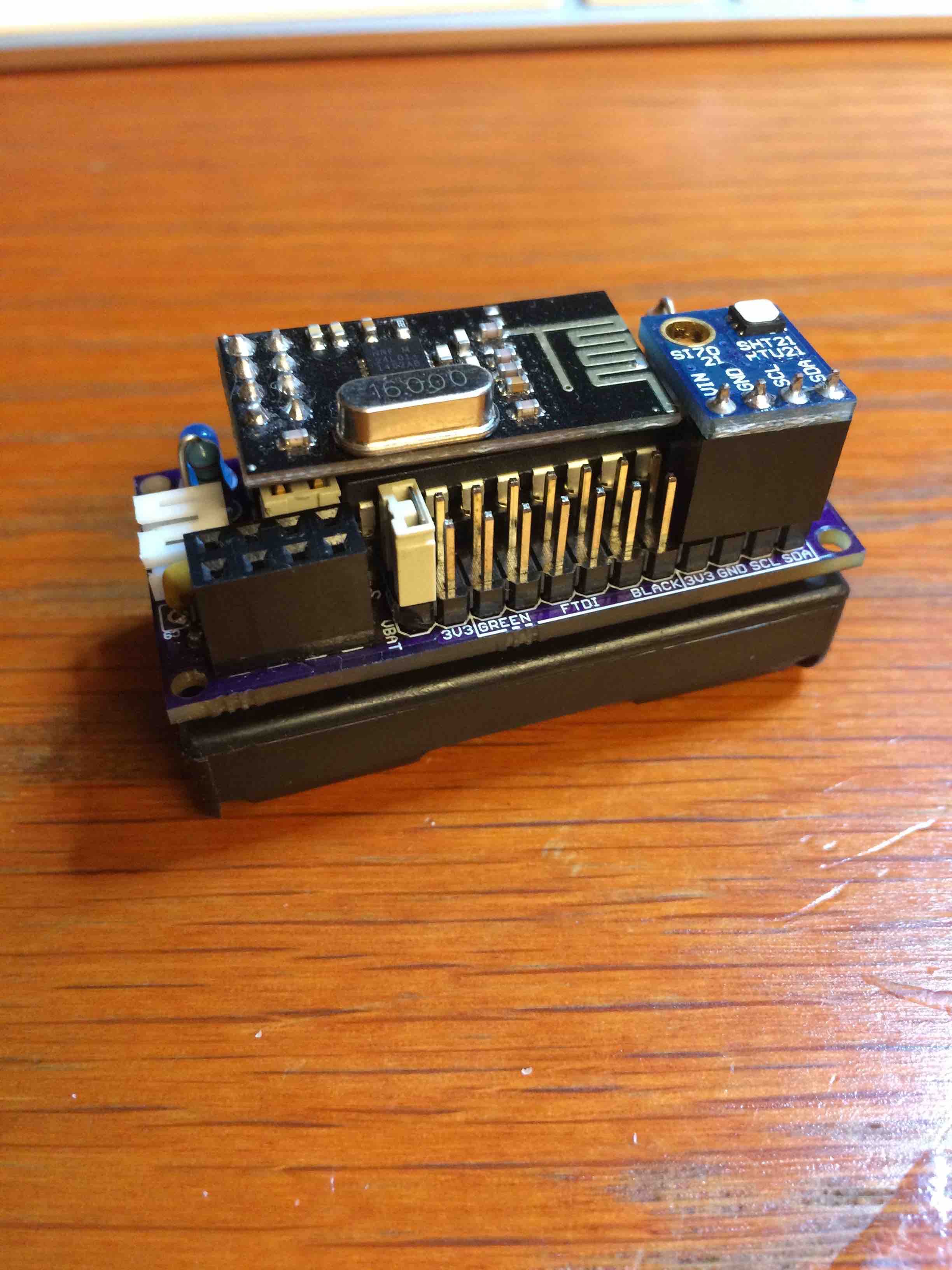

Some images:

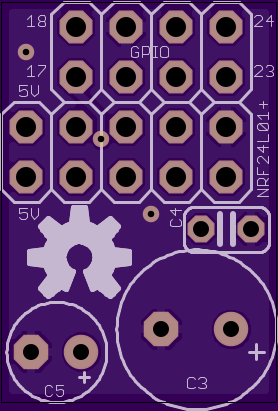

RaspiNRF24 V1
by
GertSanders.
2
layer board of
0.55x0.80
inches
(13.97x20.32
mm).
Shared on
September 12th, 2015 15:55.
nRF24L01+ adapter for Raspberry Pi (with 5V->3V3 power). This adapter allows me to use Domoticz AND the MySensors PiGatewaySerial code on the same Raspberry Pi2. No need for an external gateway (ethernet or USB) to use my MySensors nodes (all based on AVR mcu’s).

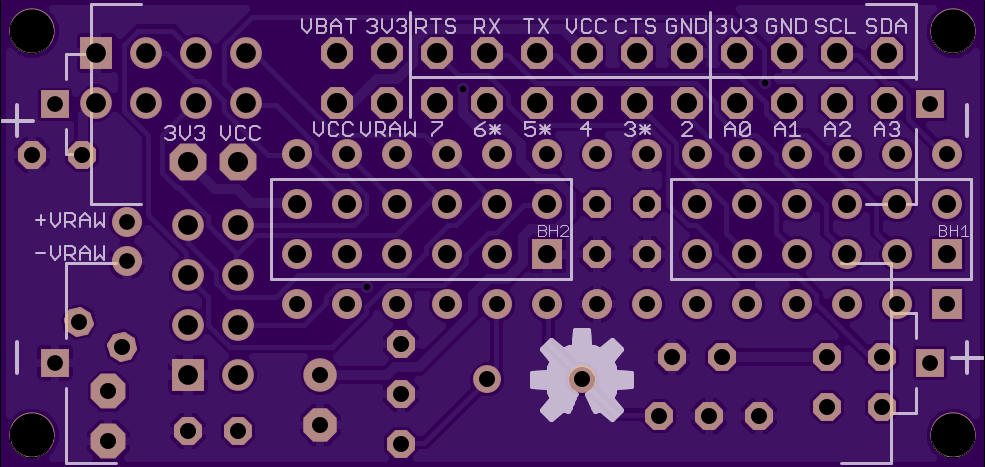

Low Power Node PTH v1 Connection Board v1
by
GertSanders.
2
layer board of
2.00x0.90
inches
(50.83x22.89
mm).
Shared on
September 3rd, 2015 07:28.
Companion board to Low Power Node PTH v1-1, to allow easy connection of a number of pins and provide 3V3 regulated from VCC (for use by the NRF24L01+ or other parts).
