OSH Park
Profile for HQ
Shared projects

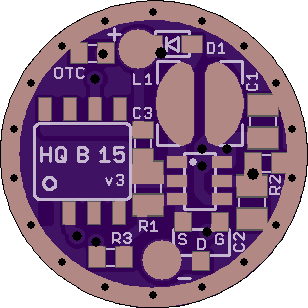

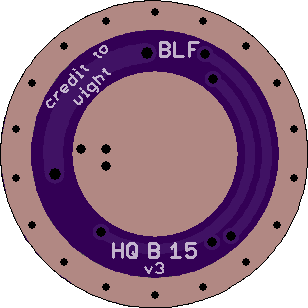

HQB15 v3
by
HQ.
2
layer board of
0.62x0.62
inches
(15.62x15.62
mm).
Shared on
May 1st, 2016 21:46.
15.6mm boost driver board for ATtiny13A MCU
v3.15
this board is provided as is and without any warranty, even without the implied warranty of fitness for a particular purpose

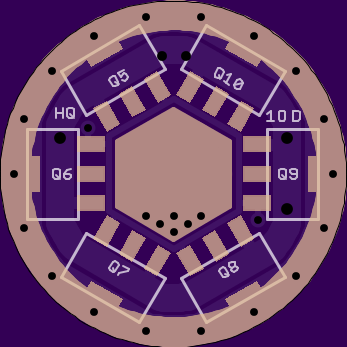

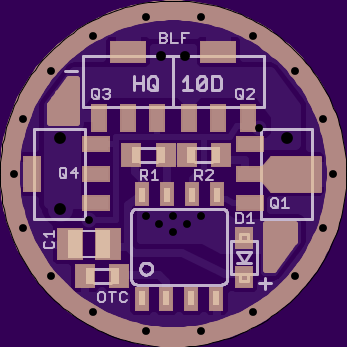

Hexagon HQ10D
by
HQ.
2
layer board of
0.69x0.69
inches
(17.63x17.63
mm).
Shared on
April 17th, 2016 10:34.
17.6mm, double-sided, 10x7135, double-channel, OTC
Nanjg replacement for a linear driver up to 3.8 Ampere
v1.23
this board is provided as is and without any warranty, even without the implied warranty of fitness for a particular purpose

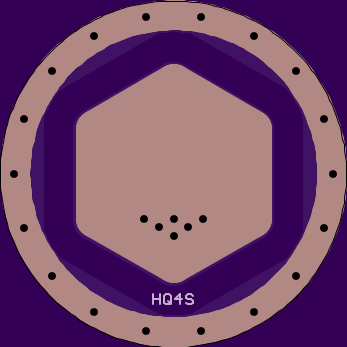

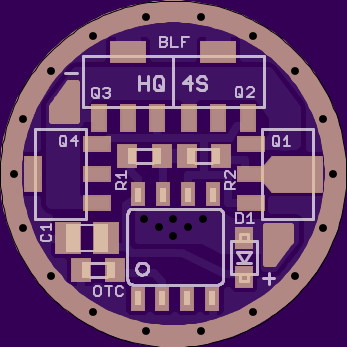

Hexagon HQ4S
by
HQ.
2
layer board of
0.69x0.69
inches
(17.63x17.63
mm).
Shared on
April 3rd, 2016 06:48.
17.6mm, single-sided, 4x7135, single-channel, OTC
v1.01
this board is provided as is and without any warranty, even without the implied warranty of fitness for a particular purpose

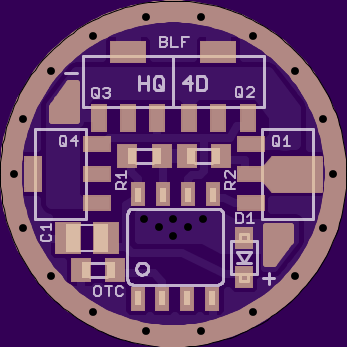

Hexagon HQ4D
by
HQ.
2
layer board of
0.69x0.69
inches
(17.63x17.63
mm).
Shared on
April 3rd, 2016 00:58.
17.6mm, single-sided, 4x7135, dual-channel, OTC
v1.12
this board is provided as is and without any warranty, even without the implied warranty of fitness for a particular purpose

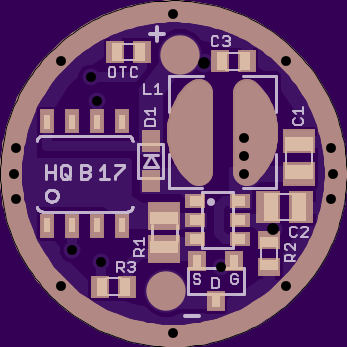

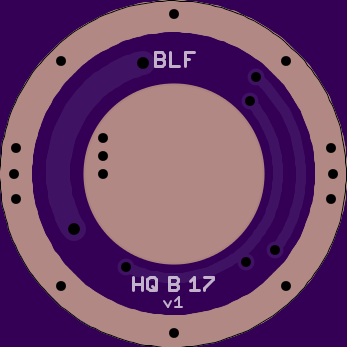

HQB17 v1
by
HQ.
2
layer board of
0.69x0.69
inches
(17.63x17.63
mm).
Shared on
February 13th, 2016 10:34.
1AA/2AA boost driver / v1.02 / 17.6mm
budgetlightforum.com/node/36867
this board is provided as is and untested
