Shared projects

HQB15 v2

by HQ.
Top
Bottom

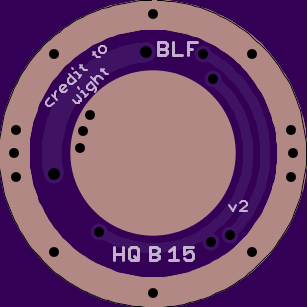

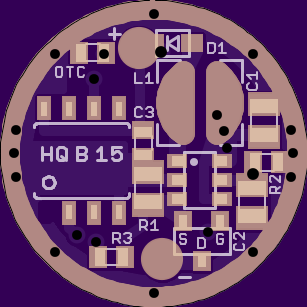

2 layer board of 0.62x0.62 inches (15.62x15.62 mm).
Shared on January 26th, 2016 21:31.

1AA/2AA boost driver / v2.06 / 15.6mm

budgetlightforum.com/node/36867

this board is provided as is and untested

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

26mm Contact Board HQ v1

by HQ.
Top
Bottom

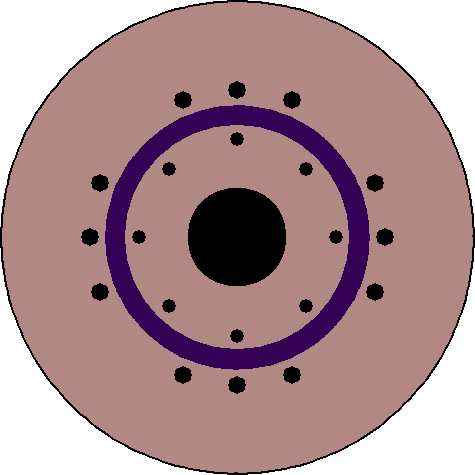

2 layer board of 1.03x1.03 inches (26.11x26.11 mm).
Shared on October 30th, 2014 20:31.

  • 11.4mm plus pad
  • 5mm center hole
  • ground vias have 0.9mm drill size and are arranged on a 15mm circle, so that any version of Nanjg driver can be mounted

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

24mm Contact Board HQ v1

by HQ.
Top
Bottom

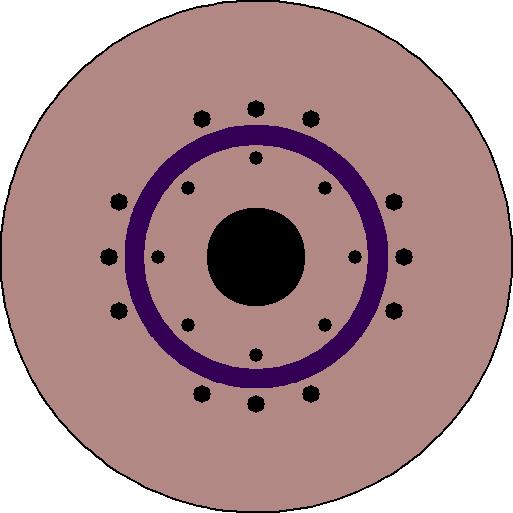

2 layer board of 0.95x0.95 inches (24.10x24.10 mm).
Shared on October 30th, 2014 20:31.

  • 11.4mm plus pad
  • 5mm center hole
  • ground vias have 0.9mm drill size and are arranged on a 15mm circle, so that any version of Nanjg driver can be mounted

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

22mm Contact Board HQ v1

by HQ.
Top
Bottom

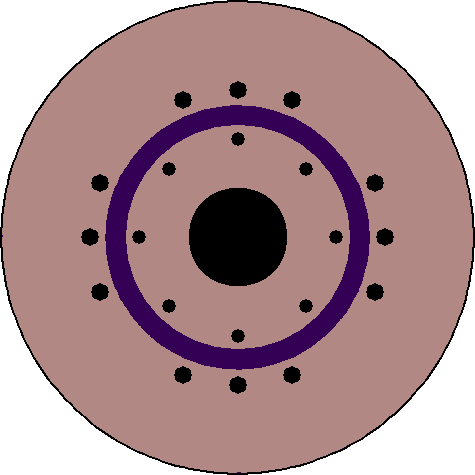

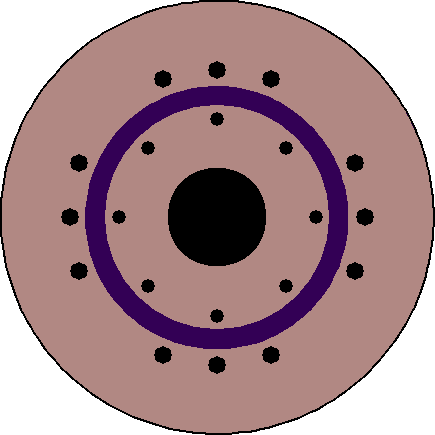

2 layer board of 0.87x0.87 inches (22.12x22.12 mm).
Shared on October 30th, 2014 20:04.

  • 11.4mm plus pad
  • 5mm center hole
  • ground vias have 0.9mm drill size and are arranged on a 15mm circle, so that any version of Nanjg driver can be mounted

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project
