OSH Park
Profile for JeffGlass
Shared projects

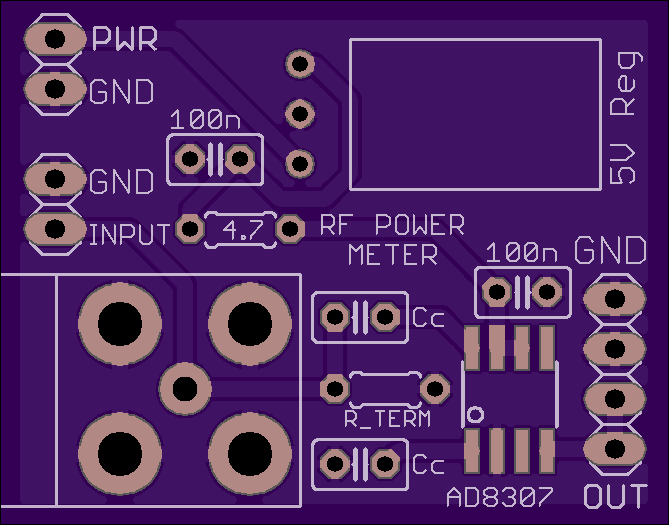

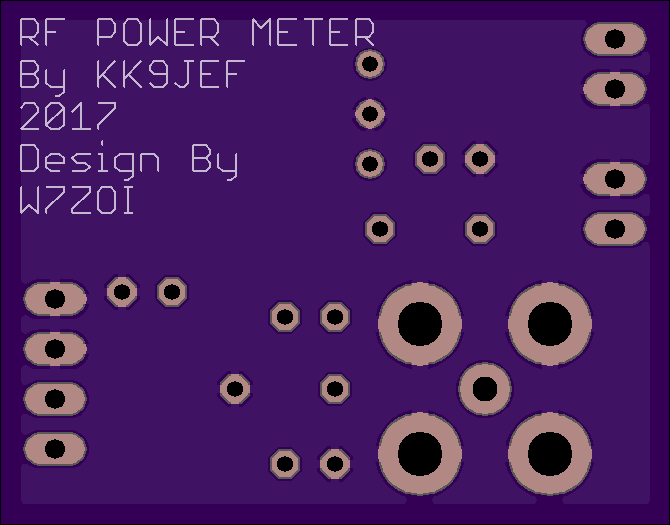

AD8307 Power Meter
by
JeffGlass.
2
layer board of
1.34x1.05
inches
(33.99x26.67
mm).
Shared on
March 28th, 2017 15:34.
Based on W7ZOI design, an RF power meter for DC to 500 MHz and -80 to +17 dBm

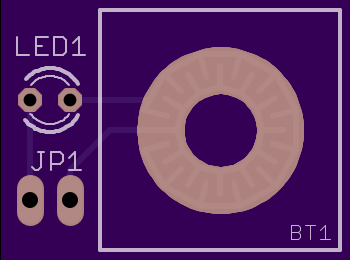

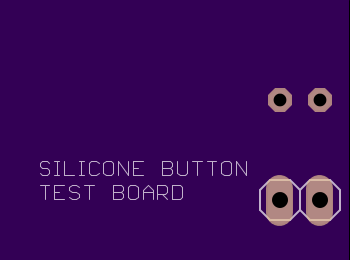

Single Button Breakout Board
by
JeffGlass.
2
layer board of
0.88x0.65
inches
(22.23x16.54
mm).
Shared on
June 22nd, 2014 00:30.
A breakout board for a single Silicone Elastomer button, of the type sold by Adafruit. Testing a single-button package made in eagle to make sure the dimensions are correct before sourcing larger boards. http://www.adafruit.com/products/1611
Arduino Mini Buffer
by
JeffGlass.
2
layer board of
2.48x1.61
inches
(62.99x40.89
mm).
Shared on
December 11th, 2013 20:11.
