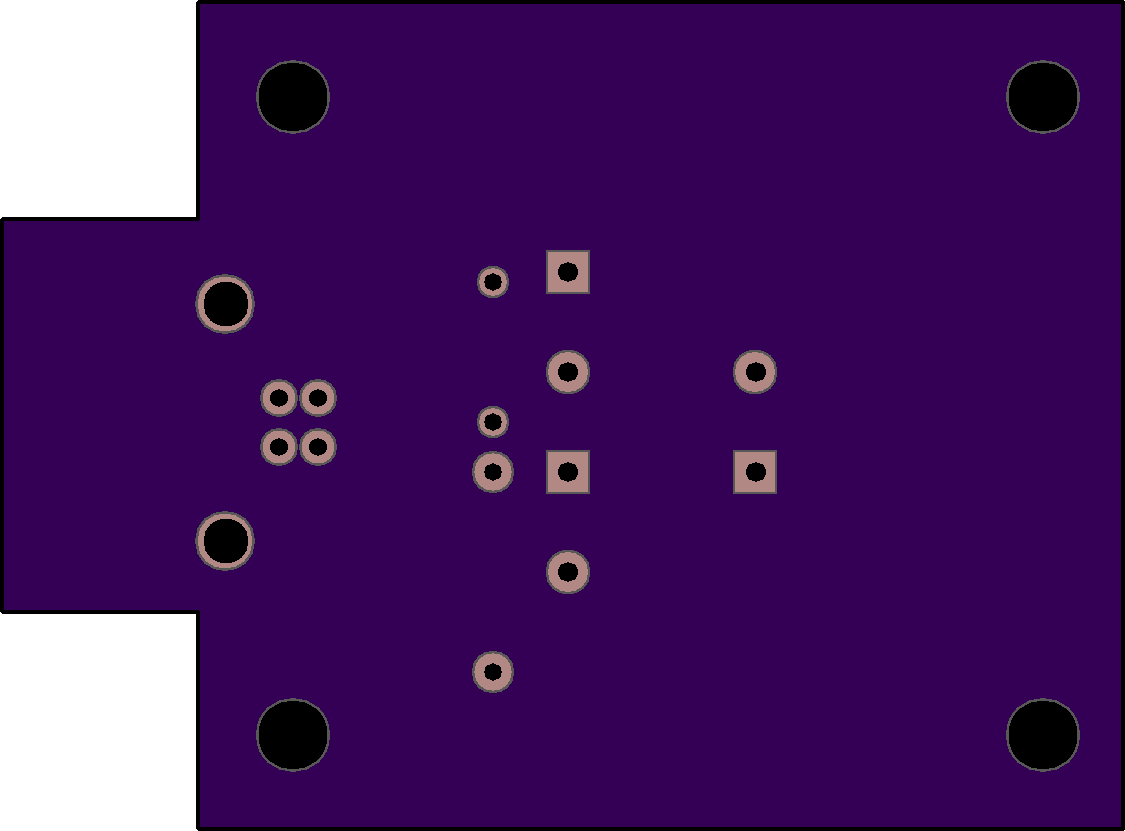

relay contact closure and serial connection keyboard using a pro micro
5v Relay Projectbox.3
by
Junkhacker.
2
layer board of
2.25x1.66
inches
(57.20x42.19
mm).
Shared on
April 11th, 2014 19:42.
designed to fit in RadioShack project box 270-1801

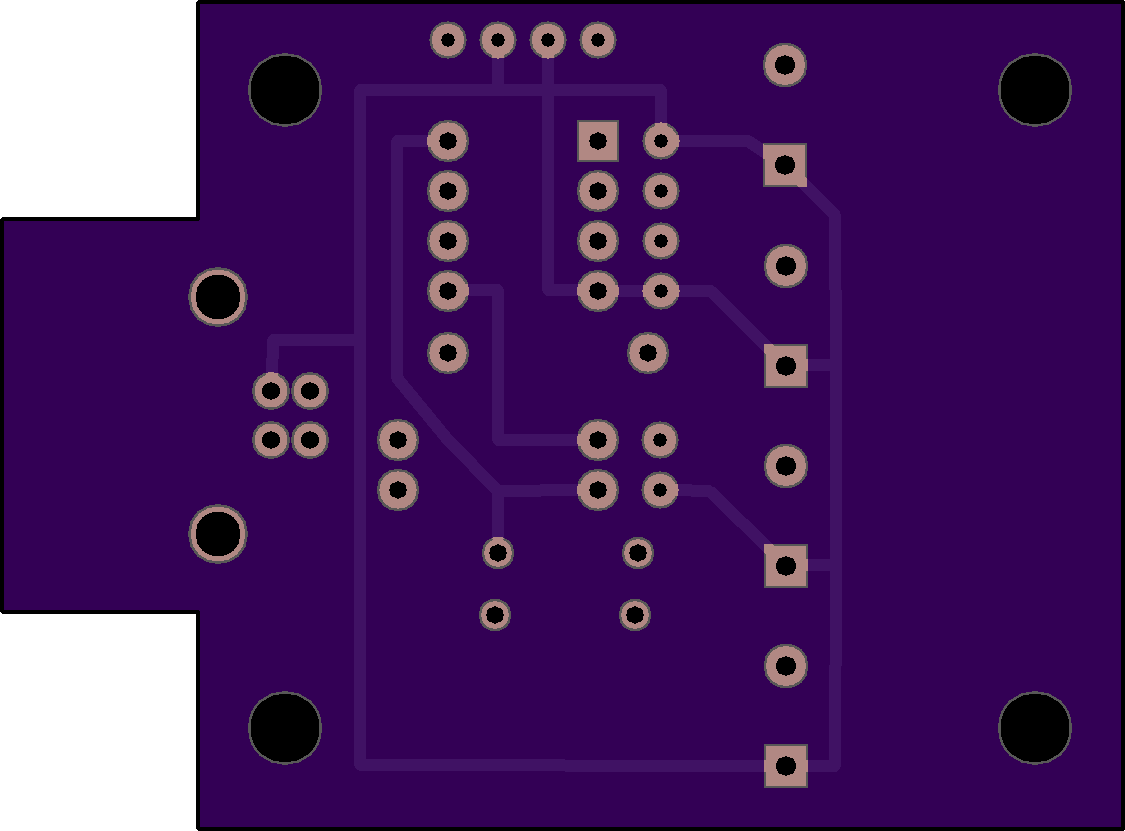

4 key keyboard.Projectbox.4
by
Junkhacker.
2
layer board of
2.25x1.66
inches
(57.20x42.19
mm).
Shared on
April 11th, 2014 19:13.
designed to fit in RadioShack project box 270-1801

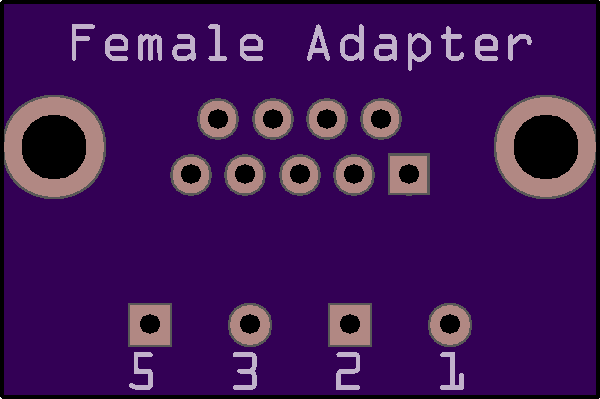

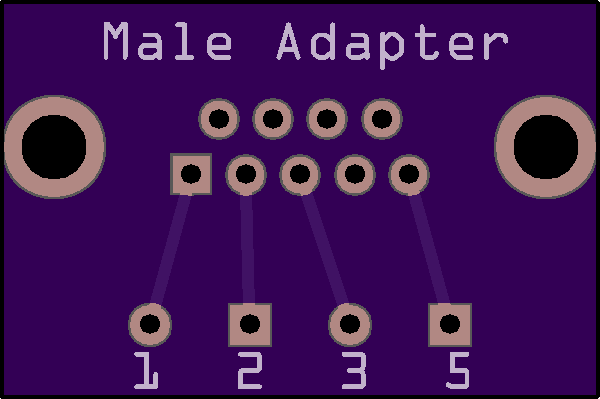

DB9 To Terminal Block V3
by
Junkhacker.
2
layer board of
1.20x0.80
inches
(30.48x20.29
mm).
Shared on
March 17th, 2014 19:04.
DB-9 to terminal block breakout board made for use on the Extron MLC 226 IP. The Extron unit uses pin 1 for an optional relay contact point. This board breaks out serial pins 1,2,3, and 5 to terminal blocks for easy wiring.
Female serial port http://www.digikey.com/product-detail/en/ADF09A-KG-TAXB3-R/AE10924-ND/1241802
Male serial port http://www.digikey.com/product-detail/en/ADS09A-KG-TASB3-R/AE10968-ND/1241804
rising cage terminal blocks http://www.digikey.com/product-detail/en/0398800302/WM4393-ND/2421325

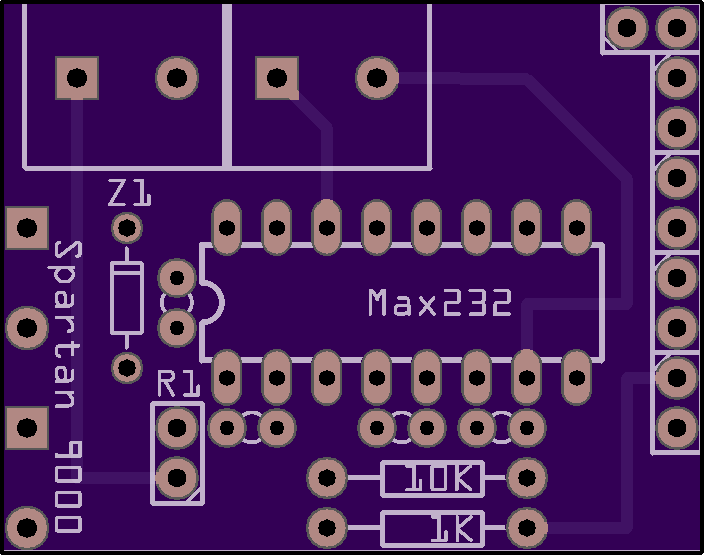

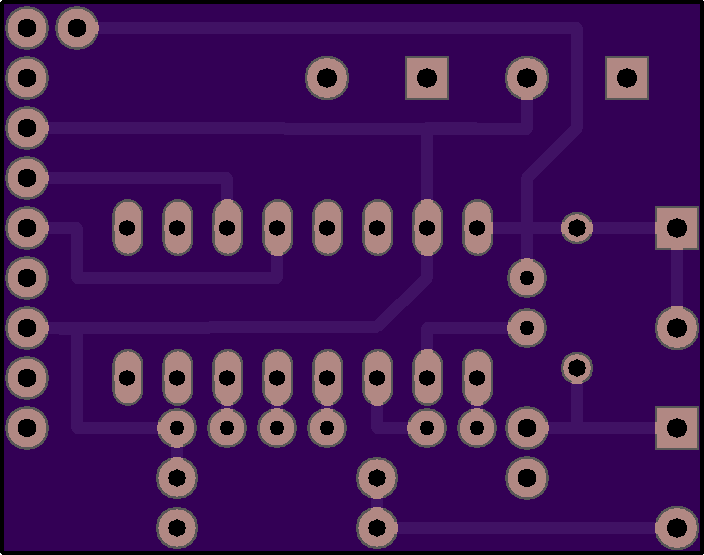

Serial Pi terminal block and input pin
