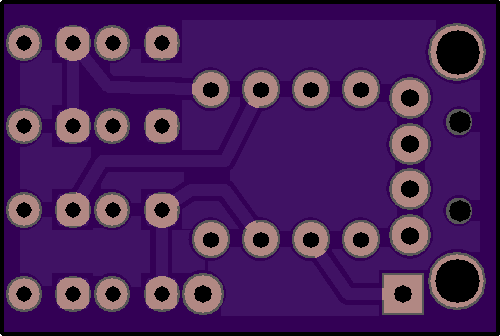

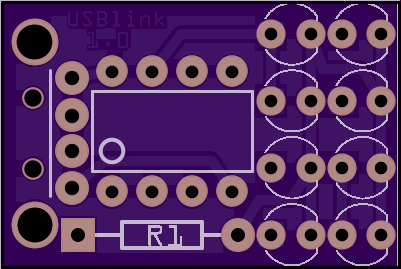

USBlink

2 layer board of 1.00x0.67 inches (25.43x17.07 mm).
Shared on September 3rd, 2014 16:31.

A small usb Blinker with 8 led`s (all adressable) using the Attiny45/85 This one uses only through-hole components. (no data connection, just power)

not yet tested, but pretty sure it will work just fine.

kim-kristoffersen@live.com

Copy this HTML into your page to embed a link to order this shared project

7 Seg Mini Panel Zip

2 layer board of 1.89x1.97 inches (48.03x50.04 mm).
Shared on September 27th, 2013 09:08.

7-seg display using a 74hc595 shift register. two modules in one panel.

Tested, works ok;-)
