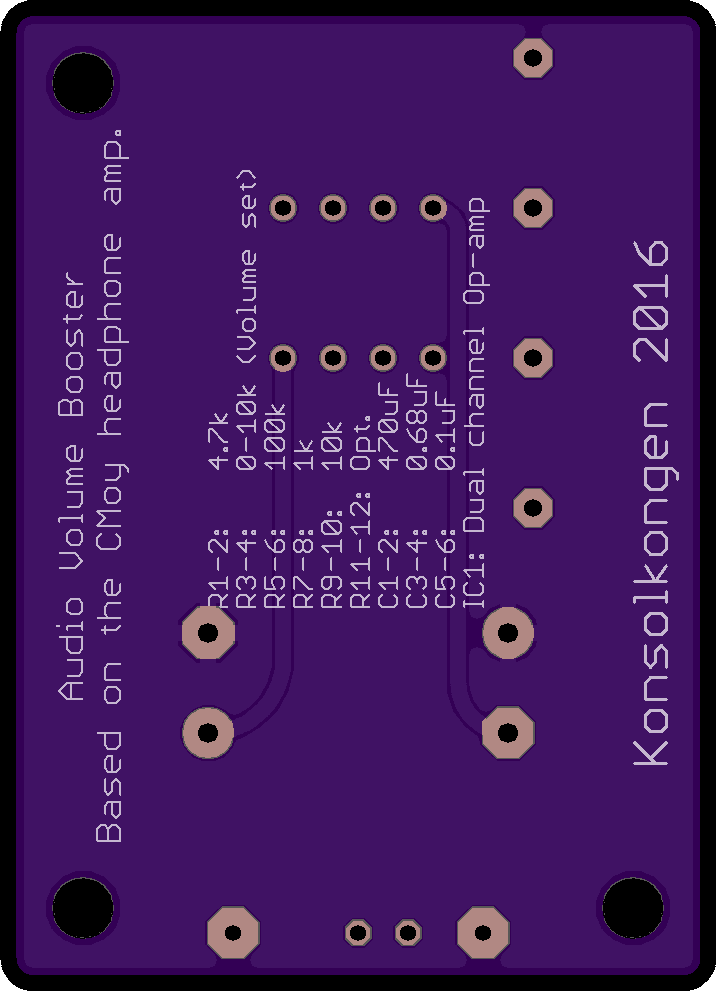

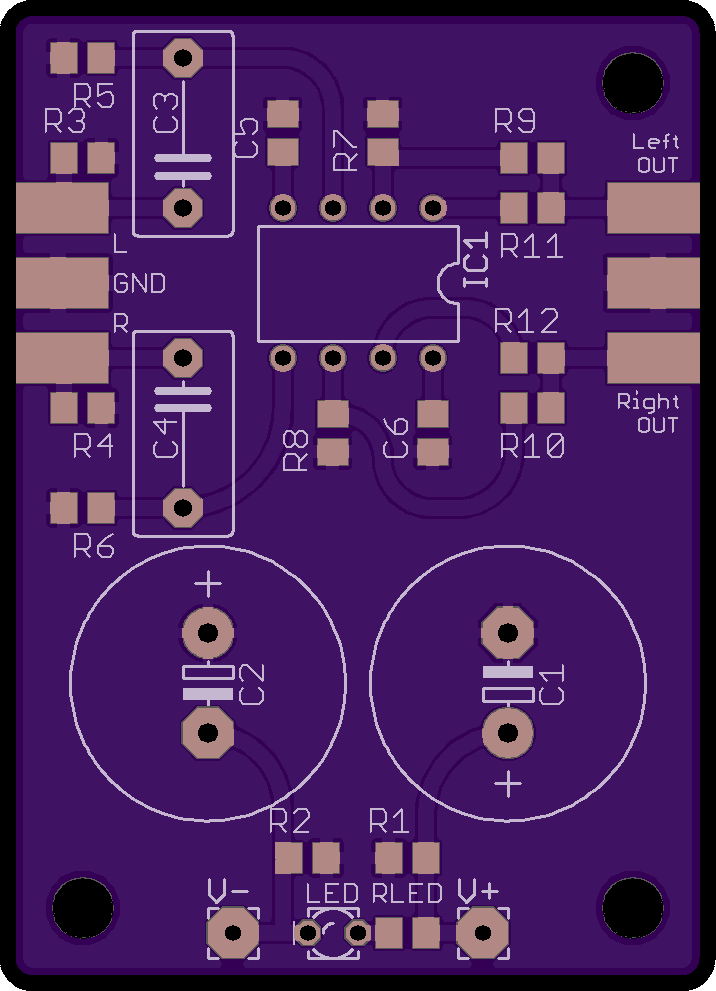

Audio Volume Booster

by Konsolkongen.
Top
Bottom

2 layer board of 1.43x1.98 inches (36.37x50.37 mm).
Shared on December 17th, 2016 18:03.

Based on the CMoy headphone amp.

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

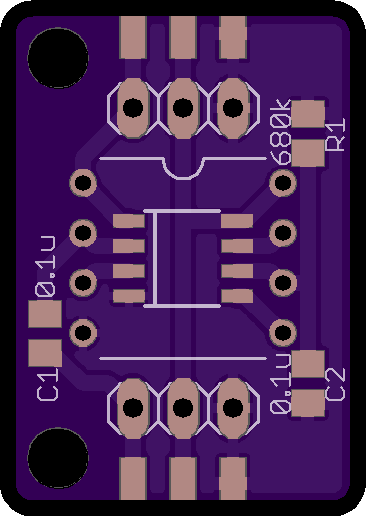

LM1881 sync stripper

by Konsolkongen.
Top
Bottom

2 layer board of 0.73x1.03 inches (18.59x26.21 mm).
Shared on December 12th, 2016 15:02.

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

Extron audio adapter

by Konsolkongen.
Top
Bottom

2 layer board of 0.67x1.18 inches (17.02x30.02 mm).
Shared on September 27th, 2016 20:29.

Small PCB that lets you connect 3.5mm jack or phono (with adapter) to Extron’s matrix switcher series easily. The connectors usually used for Extron’s inputs are still needed, and will be tightened to tabs soldered to pads at the top of the board. The jumper should be shorted when used for inputs.
