Arduino Mega R3 Precision DAC V1.0.5
by
Laser-Lance.
2
layer board of
4.01x2.11
inches
(101.88x53.62
mm).
Shared on
December 14th, 2015 14:42.

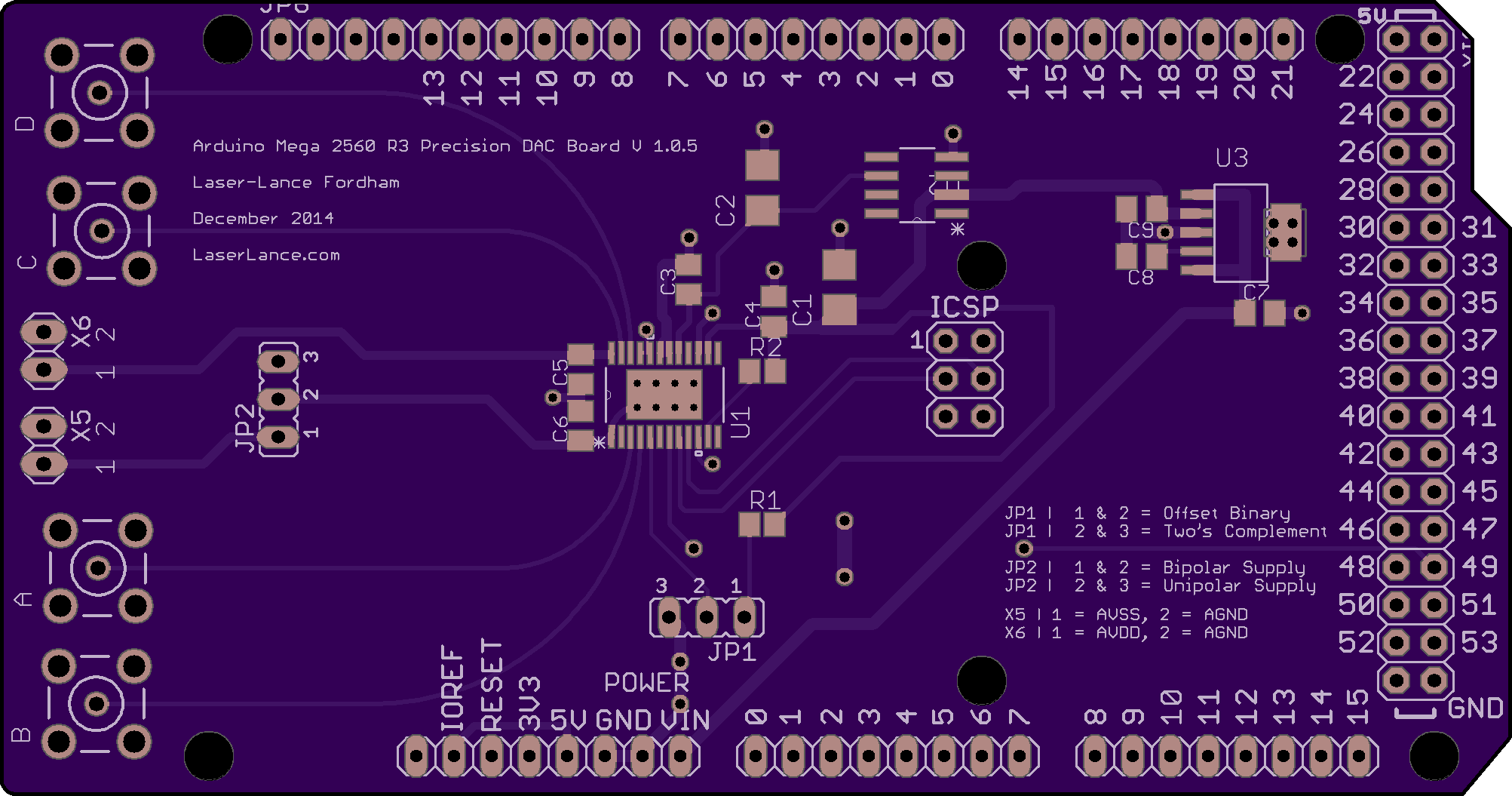

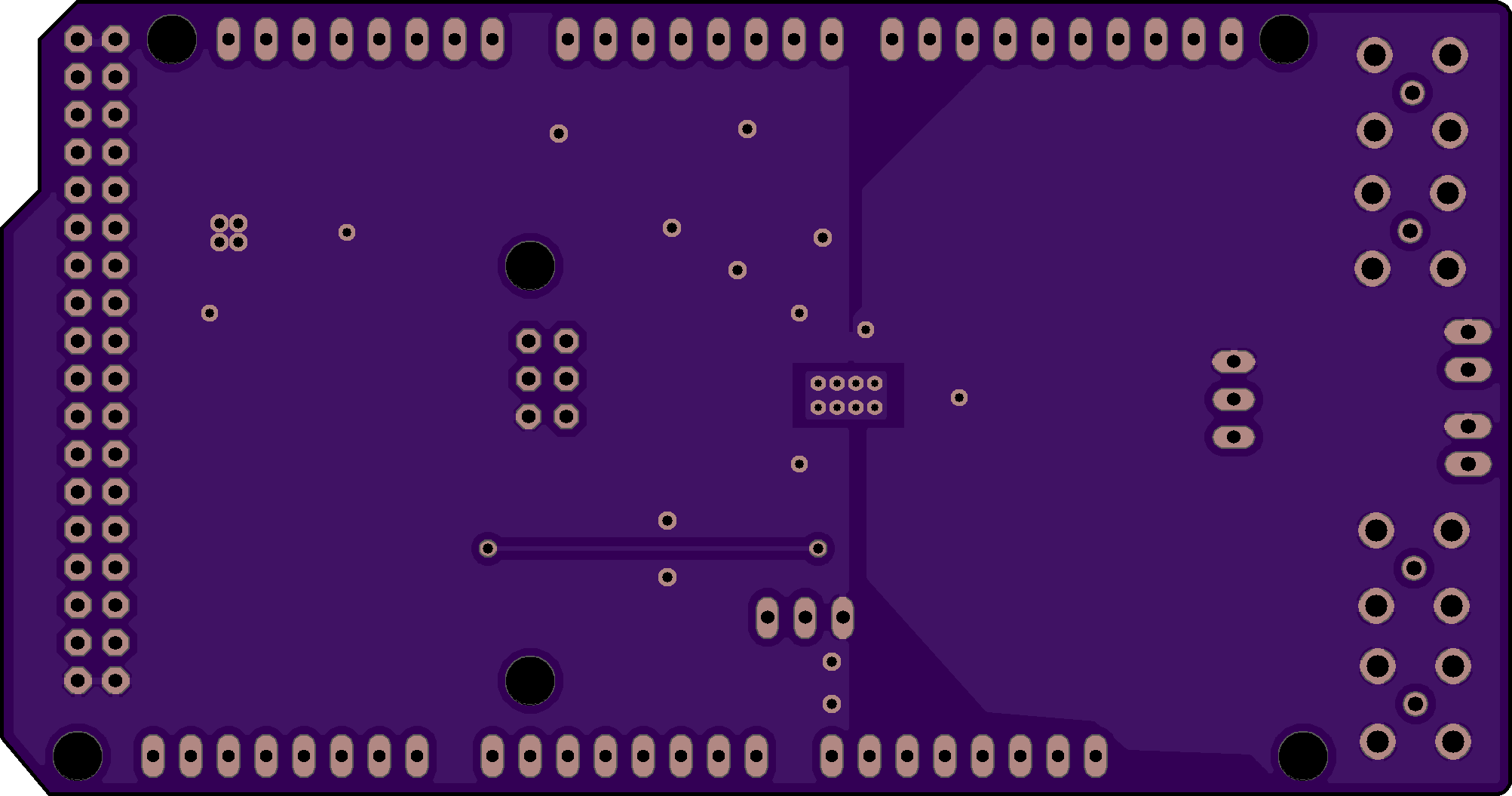

Arduino Mega R3 Precision DAC V1.0.5 based on the Analog Devices AD5754 precision DAC.
All components have been thoroughly documented within their properties to include vendor, vendor part number, and approximate cost.
An Arduino library for the Analog Devices DAC can be found on my DAC project website
Arduino Mega 2560 R3 VFO V1.0.1
by
Laser-Lance.
2
layer board of
4.01x2.11
inches
(101.88x53.62
mm).
Shared on
May 21st, 2015 20:22.

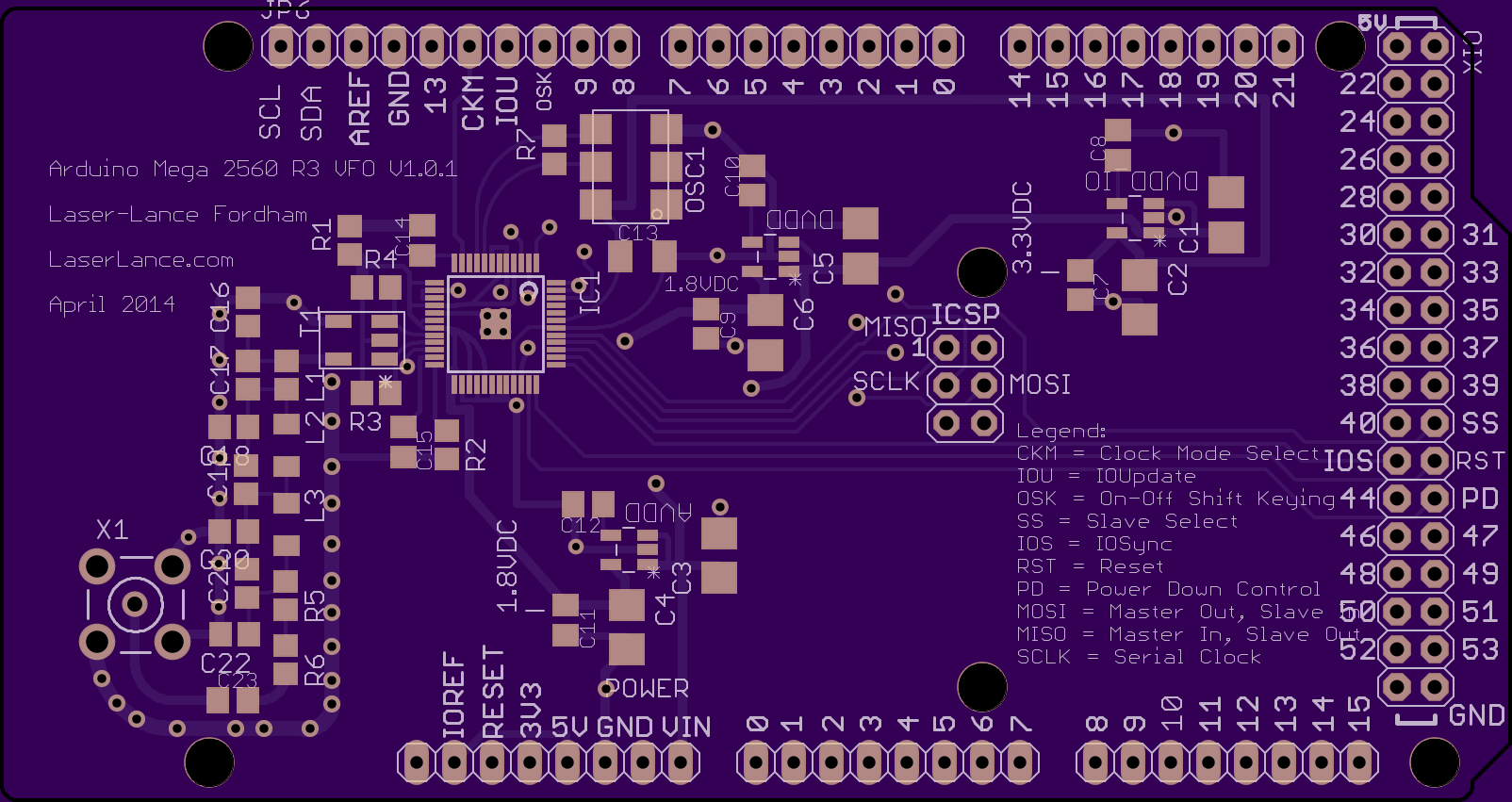

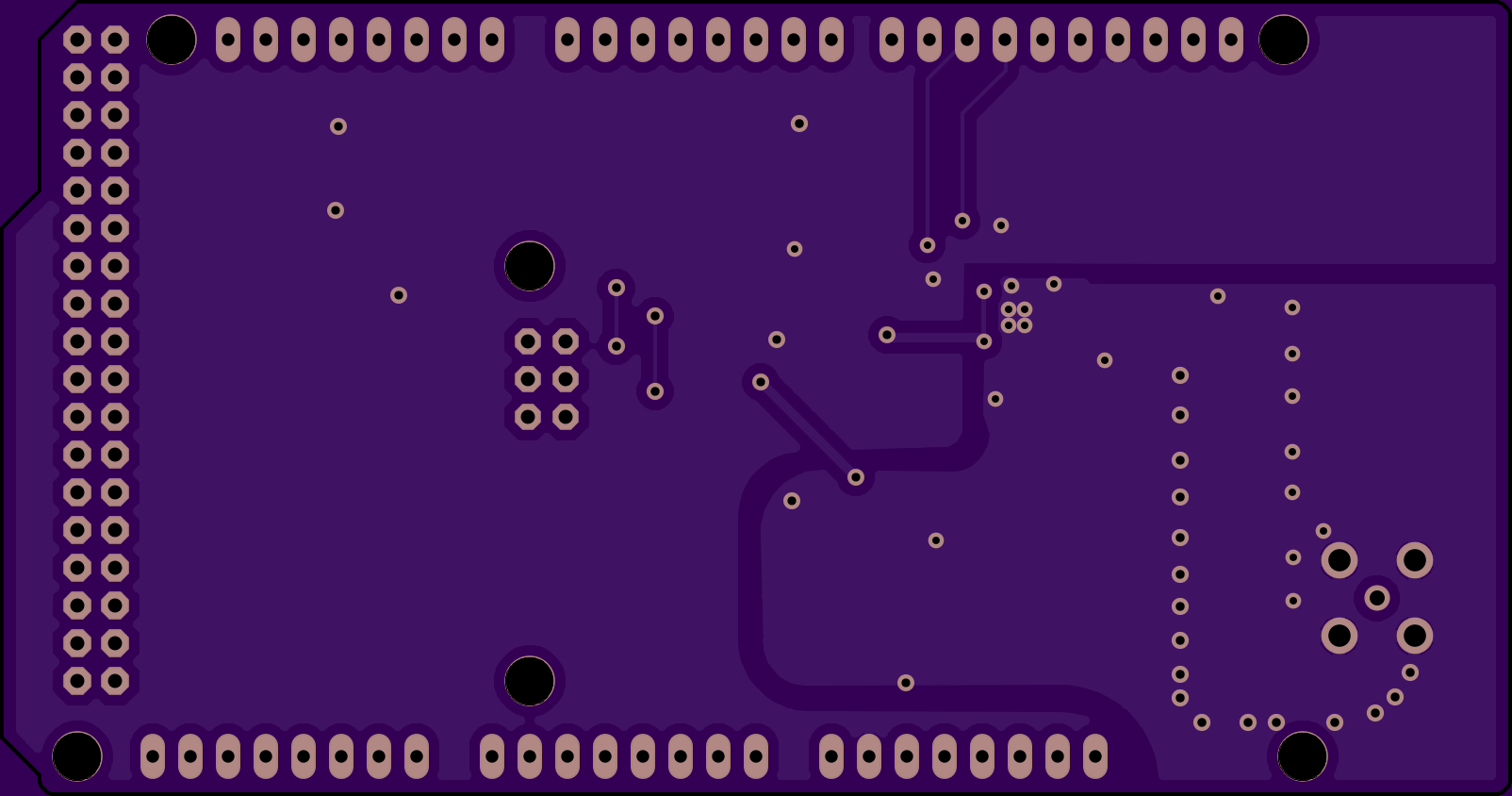

This project uses the Analog Devices AD9951 DDS chip to create a NCO/VFO.
All components have been thoroughly documented within their properties to include vendor, vendor part number, and approximate cost.
A preliminary library for Arduino can be found at my VFO project website
Arduino Mega RS-232 Expander V 1.0.1
by
Laser-Lance.
2
layer board of
4.00x2.19
inches
(101.60x55.52
mm).
Shared on
August 1st, 2013 16:46.
This board fits onto the Arduino Mega prototyping board and allows the use of the 3 extra serial ports. The components are: MAX233ACWP+G36-ND, 399-1096-1-ND [small cap] and 399-4761-1-ND [big cap], A98040-ND, and A98037-ND from Digikey with part number RB-Ite-57 from Roboshop.
