Mega32 Breakout Board

by Le0veN.
Top
Bottom

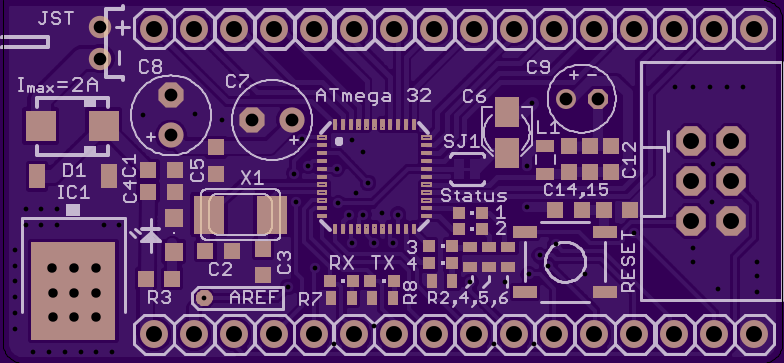

2 layer board of 1.95x0.91 inches (49.50x23.06 mm).
Shared on April 30th, 2014 07:50.

This is a breakout board of the ATMega32 familly MCUs. You can put anything from Mega32 to Mega324P 20AU, or any ATMega whom’s pinout match. It has ADC low pass filtering, 5v 1.5A regulated voltage, max input current is 2A, max input voltage 35V. All files, including BOM, are avalable to download at https://github.com/Le0veN/ATMega32-Breakout-Board

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

AeroQuad32 v2

by Le0veN.
Top
Bottom

2 layer board of 2.31x2.31 inches (58.57x58.57 mm).
Shared on November 21st, 2013 13:57.

Not my design!! http://aeroquad.com/showwiki.php?title=AeroQuad32+Flight+Control+Board+v2
