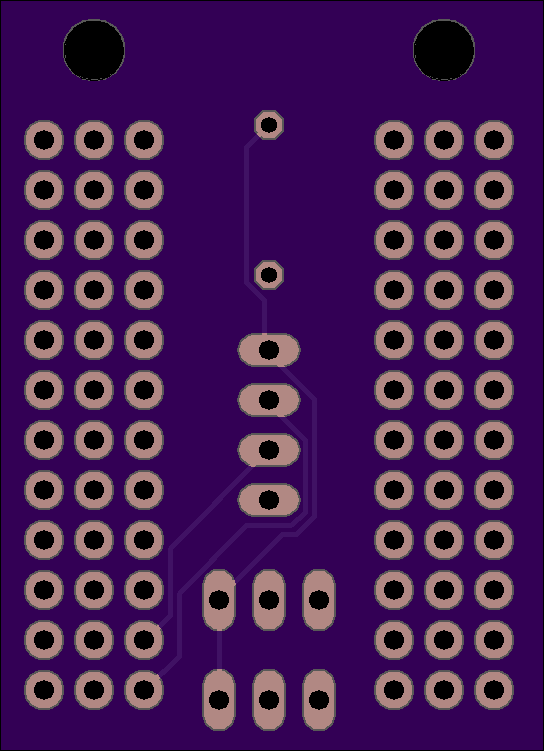

ESP826612F-breakout-4-9-17-it-2-routed.brd

by

2 layer board of 1.19x1.50 inches (30.15x38.10 mm).
Shared on April 11th, 2017 04:46.

esp8266 12F powered and breakout

Copy this HTML into your page to embed a link to order this shared project

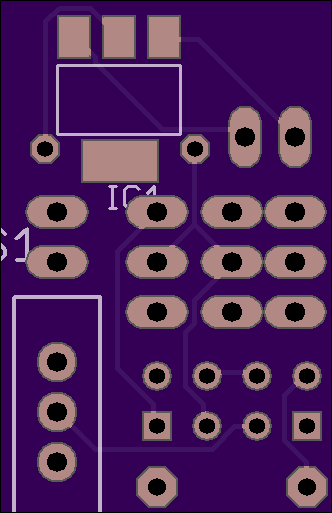

ESP8266-DS18B20-breakout-3-12-17.brd

by

2 layer board of 0.66x1.02 inches (16.81x26.04 mm).
Shared on March 12th, 2017 14:09.

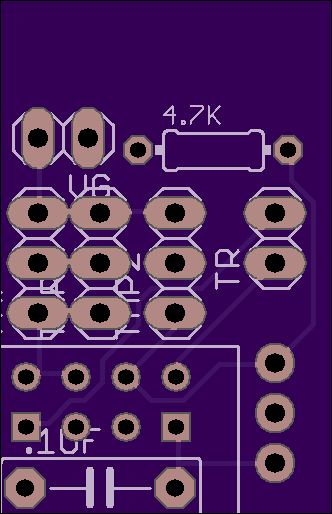

For use with ESP8266-1, 3.3v 1117 smd regulator, 0.1uF bypass capacitor, 4.7k resistor, and 3 ds18B20 temperature sensors.

Copy this HTML into your page to embed a link to order this shared project

by

2 layer board of 1.09x1.50 inches (27.64x38.10 mm).
Shared on March 2nd, 2017 04:14.

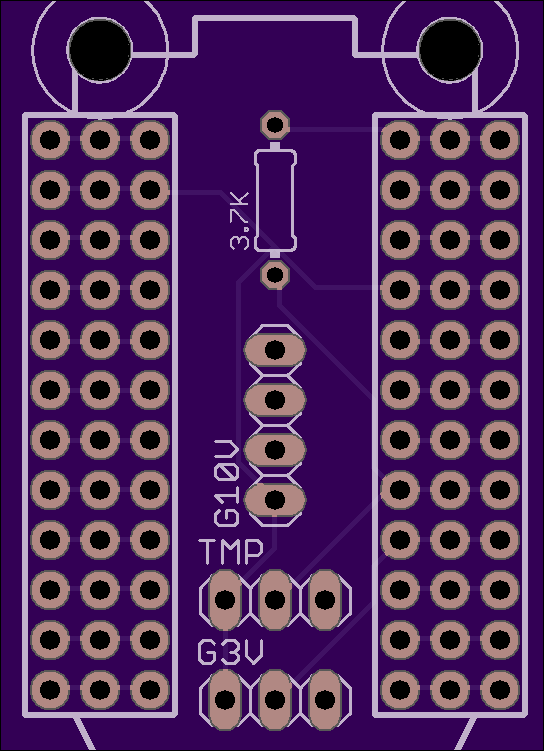

Board for Mars Sensor Mockup
