Shared projects

Rolladensteuerung

by Meikel.
Top

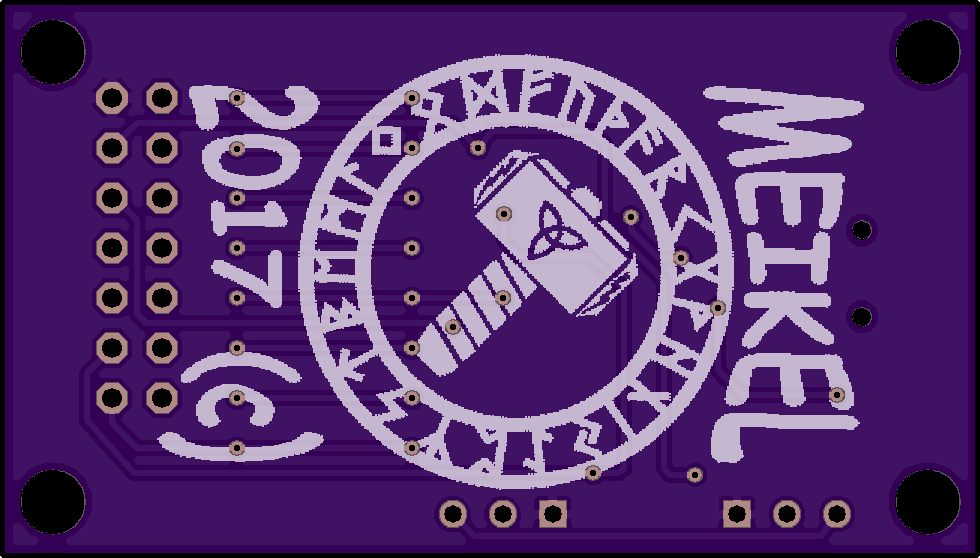

Bottom

2 layer board of 2.15x2.70 inches (54.64x68.58 mm).
Shared on May 19th, 2017 14:09.

Ground Korrektur

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

Meikelino V2.0 Final

by Meikel.

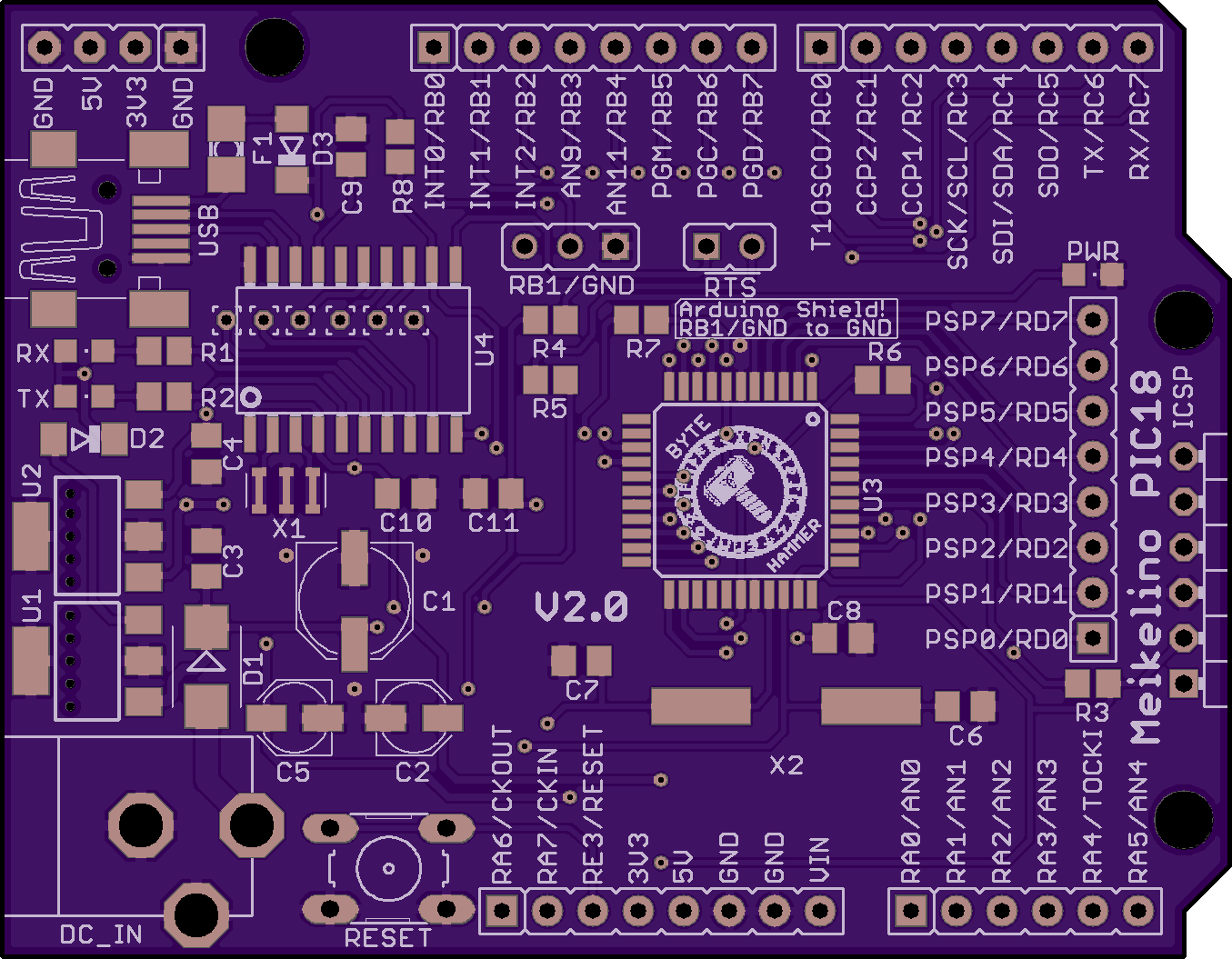

Top

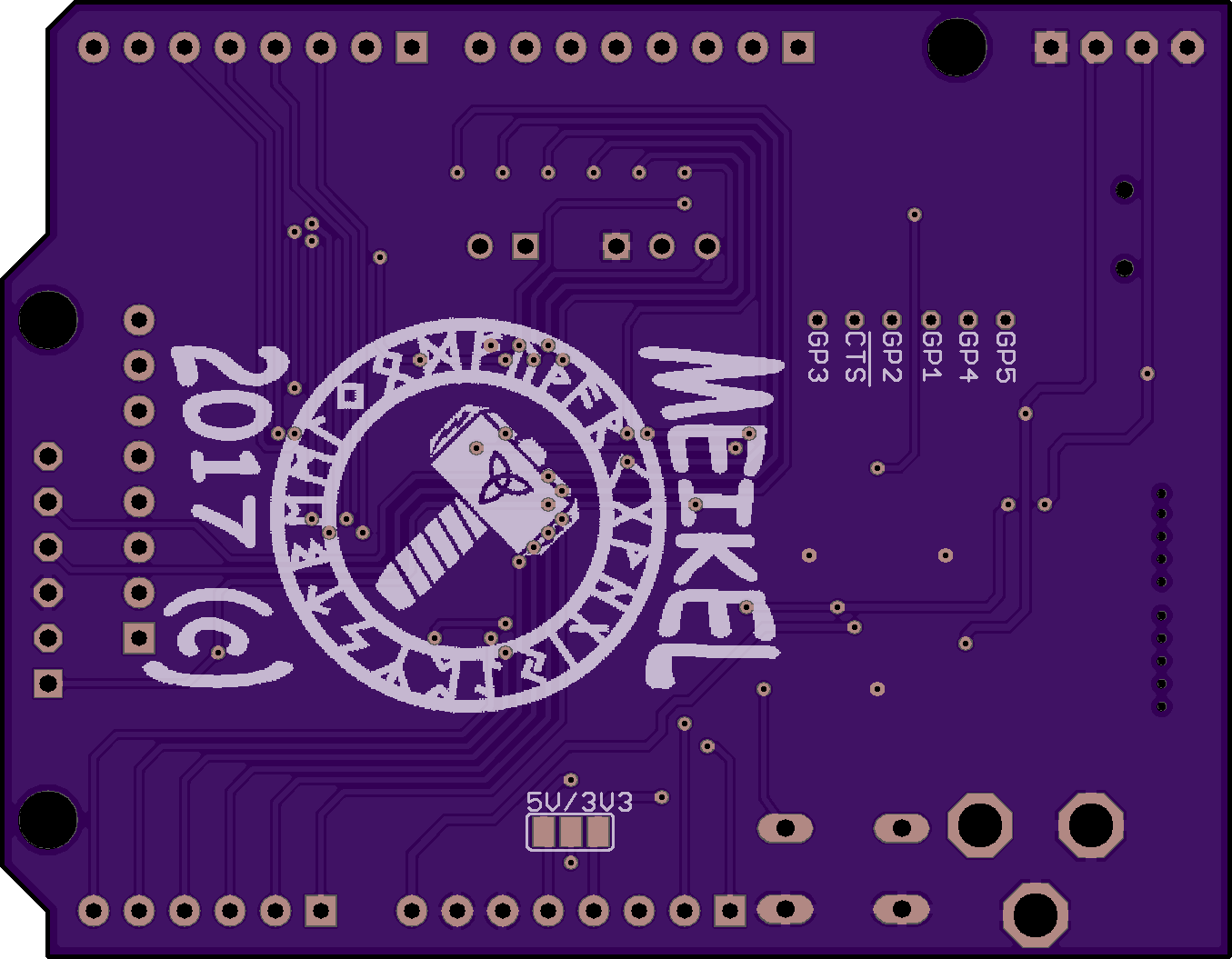

Bottom

2 layer board of 2.71x2.11 inches (68.83x53.62 mm).
Shared on April 24th, 2017 06:56.

PIC basiert in Arduino UNO Größe - PIC based in Arduino UNO Size Getestet in Ordnung - Tested okay
Per ICSP oder via Bootloader programmierbar

Menge Wert Bauteile
3 x LED SMD-0805 - PWR, RX, TX
3 x 1K Widerstand SMD-0805 - R1, R2, R5
2 x 10K Widerstand SMD-0805 - R3, R8
1 x 470R Widerstand SMD-0805 - R4
2 x 100R Widerstand SMD-0805 - R6, R7
1 x Resonator-SMD 12MHz - X1
1 x SMD-Quarz - X2 * je nach gewähltem PIC18F 8/10/16MHz
2 x 15p Chip-Kondensator 0805 - C6, C7
6 x 100n Chip-Kondensator 0805 - C3, C4, C8, C9, C10, C11
2 x 22µ CPOL-SMD Bauform B - C2, C5
1 x 47µ CPOL-SMD Bauform D - C1
1 x 500mA Sicherung rückstellend SMD0805 - F1
1 x MCP39100-5.0WS - U1
1 x MCP39100-3.3WS - U2
1 x PIC18FxxKxx - U3
1 x MCP2200SOIC - U4
1 x Diode SA26A - D1
2 x Diode SS13L - D2, D3
1 x MINI-USB SMD - USB
1 x HOHLBUCHSE 2,1x5,5 - DC_IN
1 x Tactile Kurzhubtaster 6mm - S2
1 x Jumper 2-polig - RTS
1 x Jumper 3-polig - RB1/GND
1 x Buchsenleiste 8-polig - SV1, SV3, SV4, SV5
1 x Buchsenleiste 6-polig - SV2
1 x Buchsenleiste 4-polig - SV7
1 x Stiftleiste 90° gewinkelt 6-polig - SV6

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

USB-UART V1.1 Final

by Meikel.

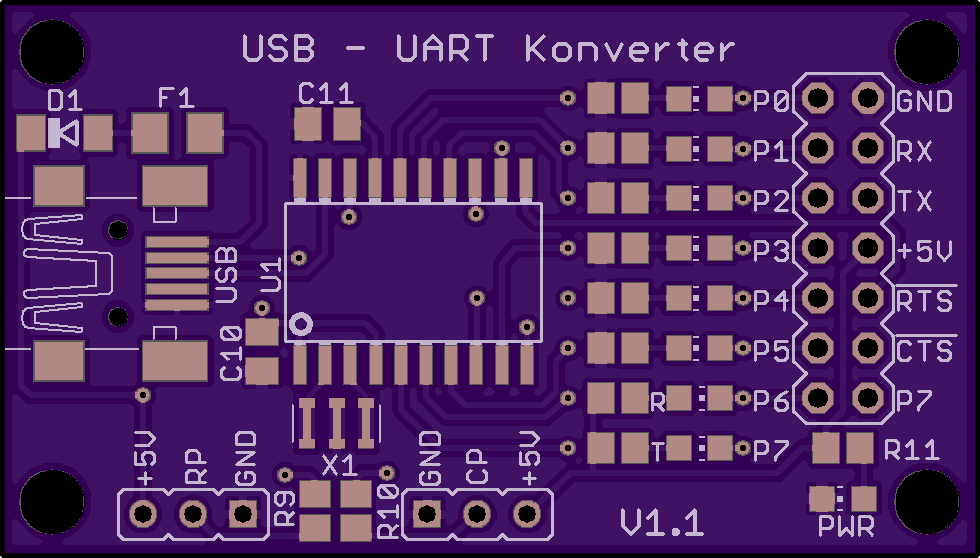

Top
Bottom

2 layer board of 1.96x1.12 inches (49.78x28.37 mm).
Shared on April 12th, 2017 17:21.
