Bus Pirate 3.8 to 3.6 adapter

by MikeF.

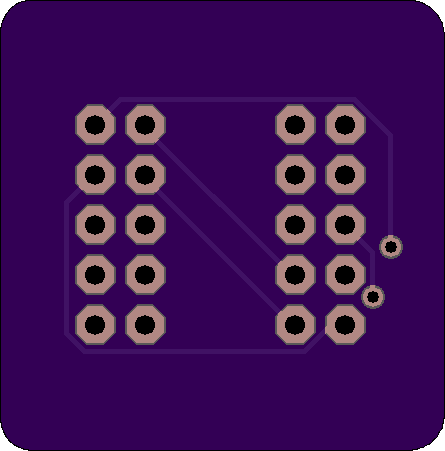

Top

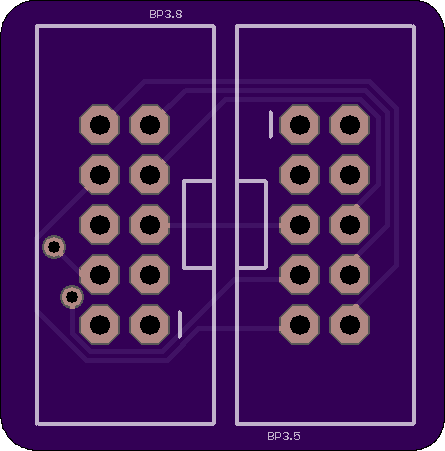

Bottom

2 layer board of 0.89x0.90 inches (22.56x22.86 mm).
Shared on August 17th, 2016 03:29.

Bus Pirate 3.8 to 3.6 header adapter. Ian changed the 5x2 IO header on the 3.8 boards, this is a quick and dirty adapter that lets you use 3.6 and earlier add ons like the LCD adapter.

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

xu1541/usb

by MikeF.
Top
Bottom

2 layer board of 2.75x1.54 inches (69.85x39.04 mm).
Shared on August 27th, 2013 04:39.

through hole usb to Commodore 15xx floppy

see http://www.trikaliotis.net/xu1541 ? email gstechsc at hotmail.com, singles +/- parts kit if enough interest.
