OSH Park
Profile for Mowee
Shared projects
PSI-CBI Rev1.5.2
by
Mowee.
2
layer board of
1.50x1.15
inches
(38.18x29.21
mm).
Shared on
June 1st, 2017 01:59.
R2D2 builders Teeces PSI only with serial pass-thru that also works as a breakout for CBI & DPL, with the voltage divider resistors and door switch headers.

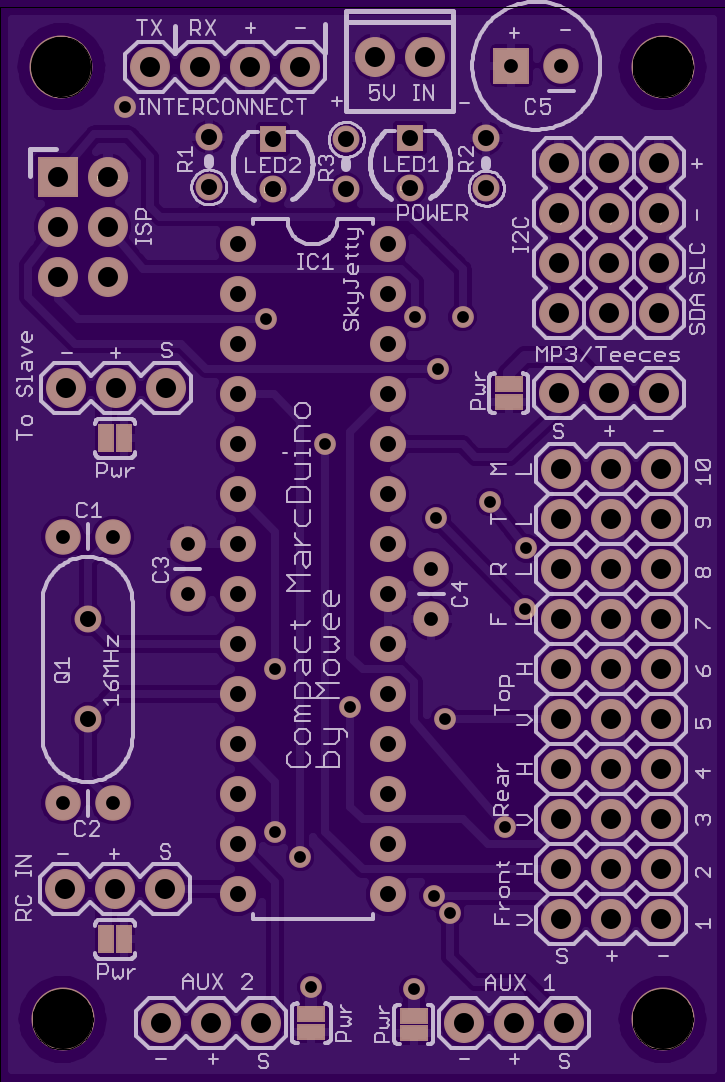

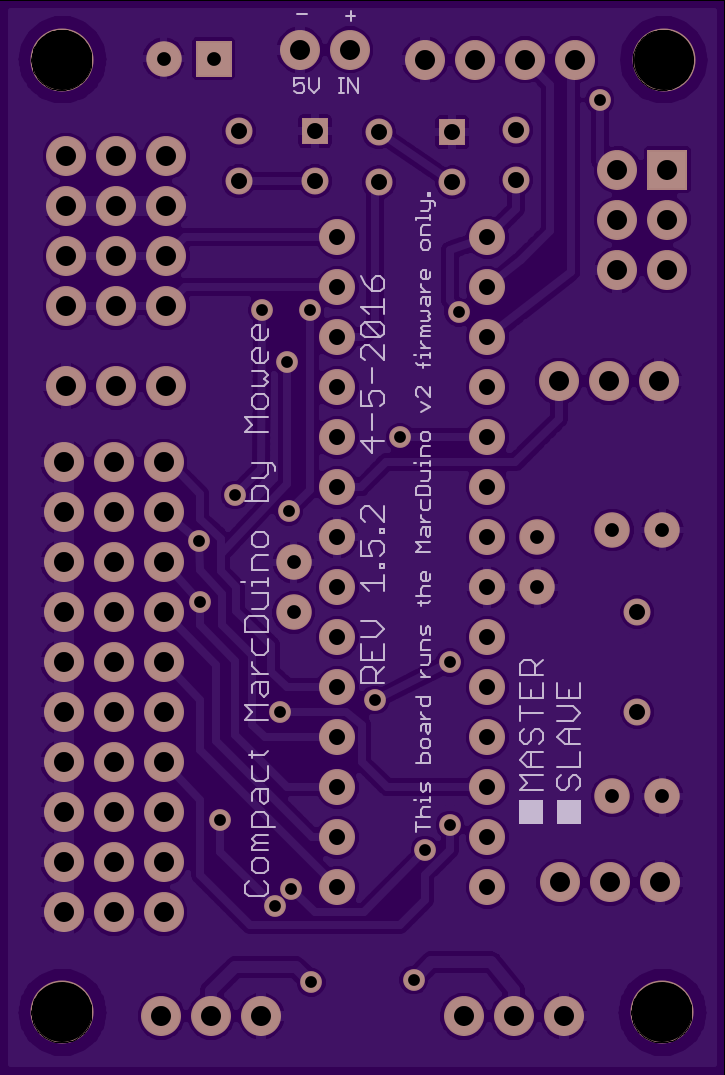

Compact Marcduino rev-1.5.2
by
Mowee.
2
layer board of
1.45x2.15
inches
(36.83x54.61
mm).
Shared on
May 3rd, 2016 20:09.
This is a compact version of the Marcduino board for the R2 Builders Club. It is a Do-It-Yourself design like the Marcduino V1 boards, but is designed to only run Marc’s v2 firmware with the additional functionality of I2C and Aux ports.
