Shared projects
Split Supply Power Distribution Board V2
by
Neon_Bulb_Dude.
2
layer board of
3.29x1.35
inches
(83.52x34.29
mm).
Shared on
March 27th, 2017 20:59.
***NOTE: You can put the capacitors on the bottom side of the board to give easier access to the 3-pin connectors.

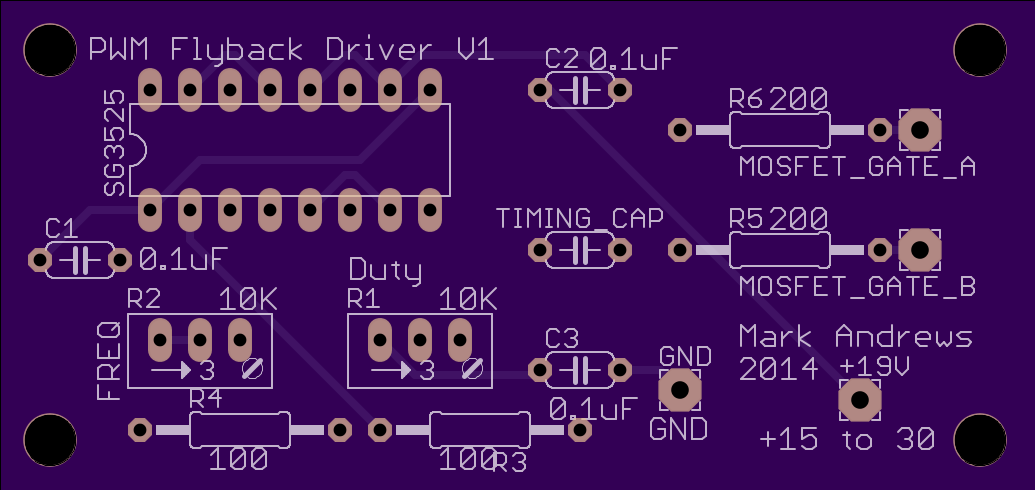

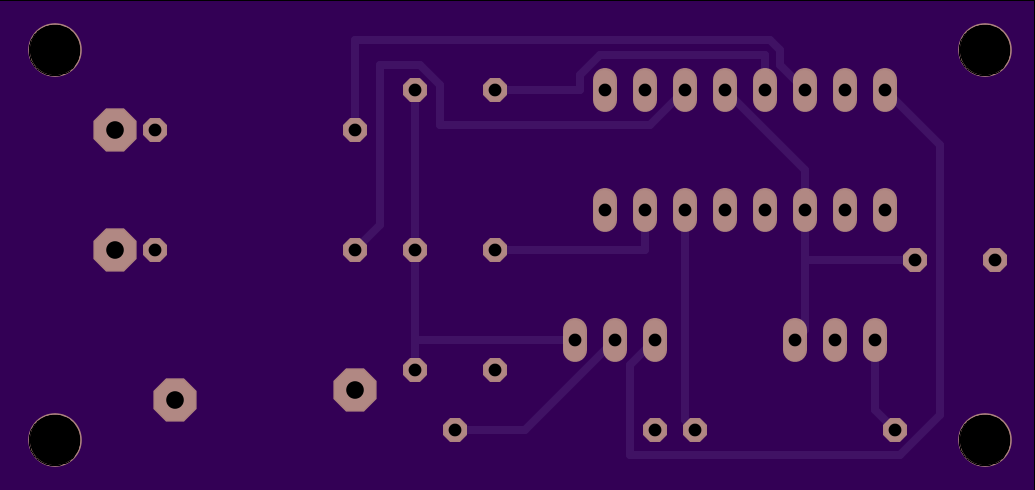

SG3525 Breakout V1
by
Neon_Bulb_Dude.
2
layer board of
2.59x1.23
inches
(65.74x31.12
mm).
Shared on
October 18th, 2014 03:26.
PWM controller for…anything. MOSFET pads not included. This circuit can be used for driving a flyback transformer or making electronic noises. Connect the labeled outputs to a pair of MOSFETS if you want to drive a flyback or connect one of the outputs directly to an amplified speaker if you want to make noises.

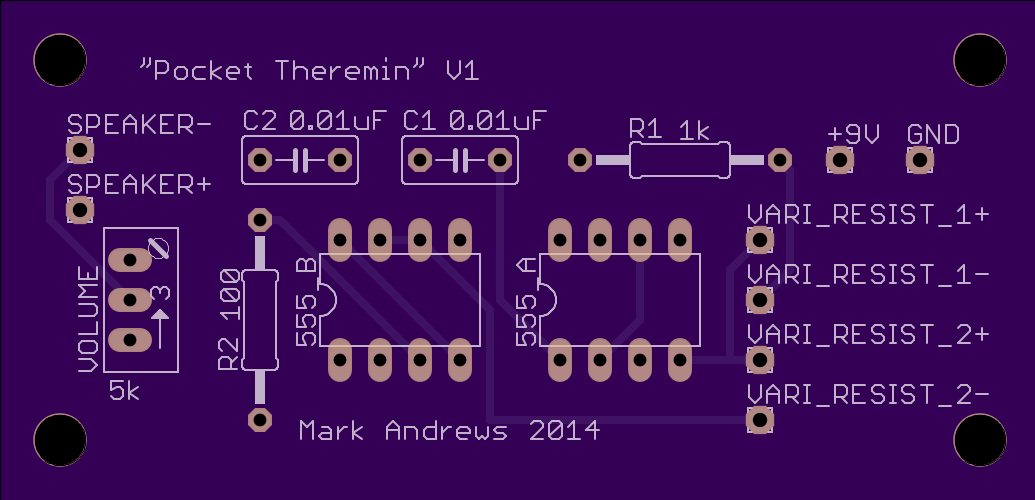

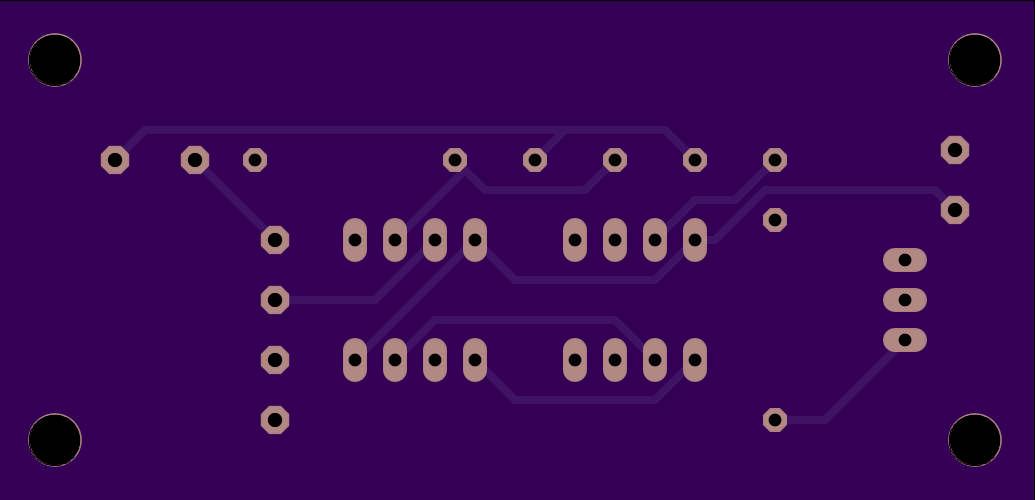

555 Pocket Theremin
by
Neon_Bulb_Dude.
2
layer board of
2.59x1.25
inches
(65.74x31.75
mm).
Shared on
October 18th, 2014 03:16.
This is the first version of a board based on a “Pocket Theremin” published in a Popular Science article. I’ve tested the board and it is functional. You will need to attach two variable resistors in the indicated locations. The variable resistors can be anything–playdough, photoresistors, saltwater, conventional variable resistors, etc. May want to use larger capacitors than the indicated 0.01uF–I went as high as 0.4uF. Bigger capacitors=lower frequency. Be creative!
