Profile for NsN
Shared projects

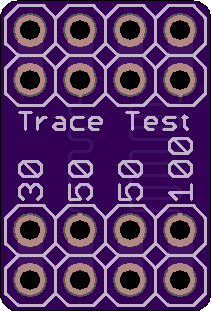

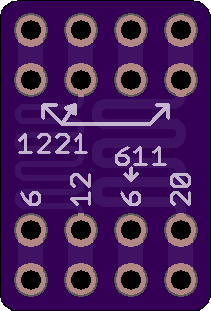

Trace resistance test
by
NsN.
2
layer board of
0.42x0.62
inches
(10.69x15.75
mm).
Shared on
March 4th, 2014 02:52.
Small board to test the viability of traces as sense resistors
Half of a diode expander
by
NsN.
2
layer board of
0.44x0.51
inches
(11.20x12.95
mm).
Shared on
February 26th, 2014 09:17.
Some kind of diode gate

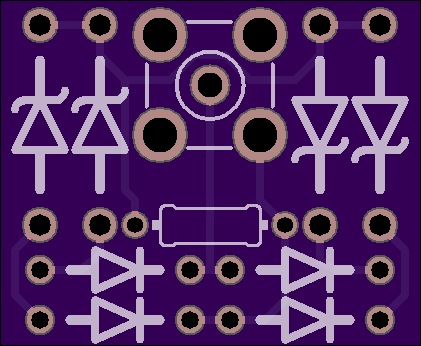

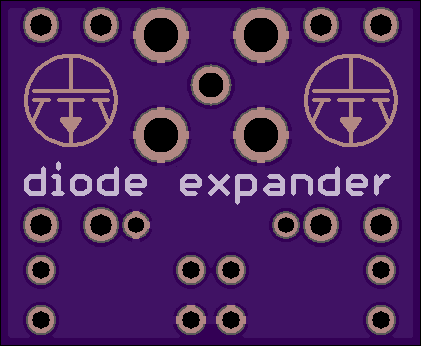

Diode expander
by
NsN.
2
layer board of
0.84x0.69
inches
(21.36x17.53
mm).
Shared on
February 26th, 2014 08:43.
Small board for reddit
Current 2 Voltage v0.1
by
NsN.
2
layer board of
0.42x0.28
inches
(10.57x7.04
mm).
Shared on
February 20th, 2014 00:02.
A simple op-amp circuit to measure small negative current

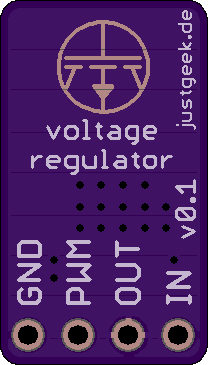

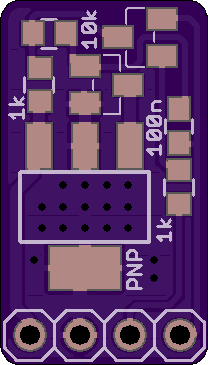

Voltage regulator v0.1
by
NsN.
2
layer board of
0.41x0.73
inches
(10.52x18.52
mm).
Shared on
February 20th, 2014 00:02.
A small pwm controlled adjustable voltage regulator built from transistors. Only useful for low voltages
