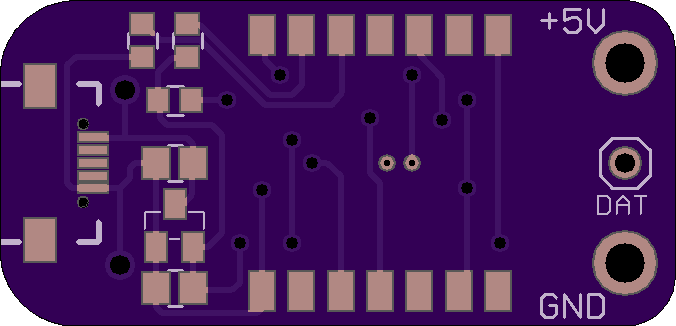

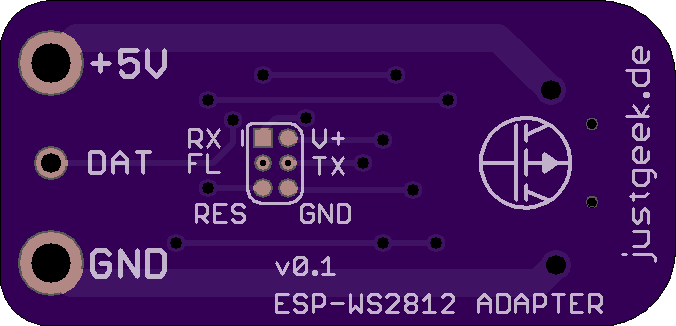

WS2812b - ESP8266 Adapter

by

2 layer board of 1.35x0.65 inches (34.29x16.54 mm).
Shared on July 20th, 2015 22:45.

A minimal adapter to connect a WS2812b lightstrip to an ESP8266 - 03 wifi module

Copy this HTML into your page to embed a link to order this shared project

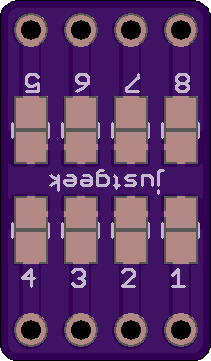

WS2812S breakout board

by

2 layer board of 0.65x0.35 inches (16.54x8.92 mm).
Shared on May 16th, 2014 00:43.

Quick and dirty breakout board for WS2812S LEDs

Copy this HTML into your page to embed a link to order this shared project

by

2 layer board of 0.42x0.72 inches (10.69x18.31 mm).
Shared on May 5th, 2014 12:43.

An improved breakout board for SO-8 devices. 0805 footprints on the bottom, 0603 on top.

Copy this HTML into your page to embed a link to order this shared project

by

2 layer board of 0.41x0.43 inches (10.52x11.02 mm).
Shared on April 13th, 2014 18:23.

A small pwm controlled adjustable voltage regulator built from transistors. Only useful for low voltages

Copy this HTML into your page to embed a link to order this shared project

by

2 layer board of 0.33x0.53 inches (8.41x13.49 mm).
Shared on April 13th, 2014 18:21.

A generic breakout board for SC70 devices.
