SOIC-8 Breakout

by

2 layer board of 0.66x0.46 inches (16.66x11.58 mm).
Shared on May 20th, 2017 10:04.

Yet another SOIC-8 breakout board. With notes.

Copy this HTML into your page to embed a link to order this shared project

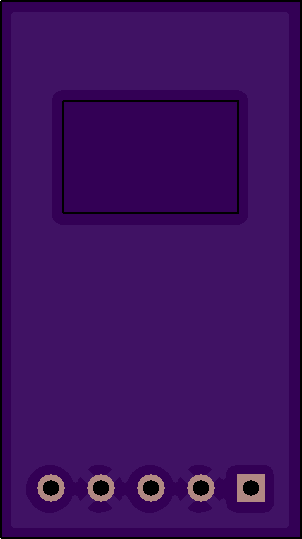

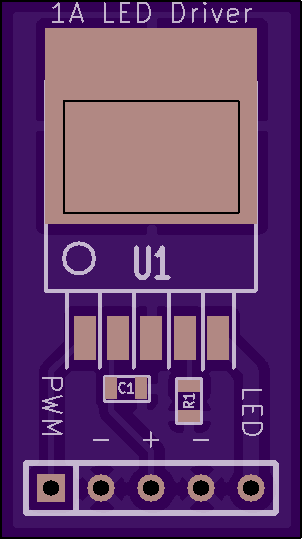

CAT4101 (1A LED Driver) Breakout

by

2 layer board of 0.60x1.08 inches (15.34x27.41 mm).
Shared on May 1st, 2017 20:56.

Simple breakout board for a CAT4101, filter capacitor and sense resistor with cut-out for a heat sink. Tested.

Datasheet: http://www.onsemi.com/pub/Collateral/CAT4101-D.PDF

Copy this HTML into your page to embed a link to order this shared project

by

2 layer board of 1.03x1.23 inches (26.06x31.14 mm).
Shared on April 15th, 2017 17:15.

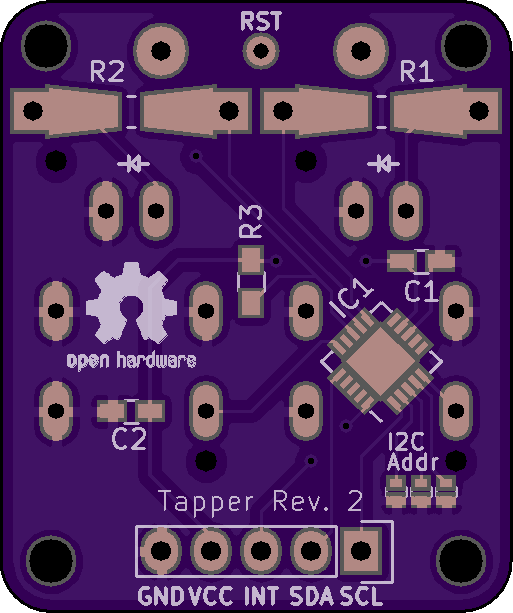

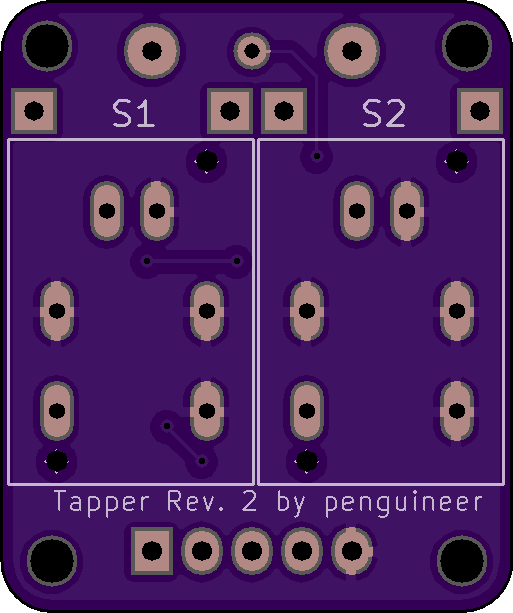

Breakout board for 2 Digitast switches

https://github.com/penguineer/iot_switchboard

Copy this HTML into your page to embed a link to order this shared project
