OSH Park
Profile for PeskyProducts
Shared projects

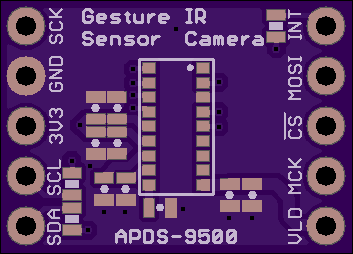

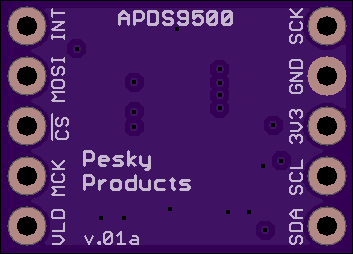

APDS9500.v01a
by
PeskyProducts.
4
layer board of
0.71x0.51
inches
(17.91x12.83
mm).
Shared on
May 29th, 2017 19:00.
Broadcom’s APDS9500 gesture sensor and IR camera, redesigned layout for better breadboard use.

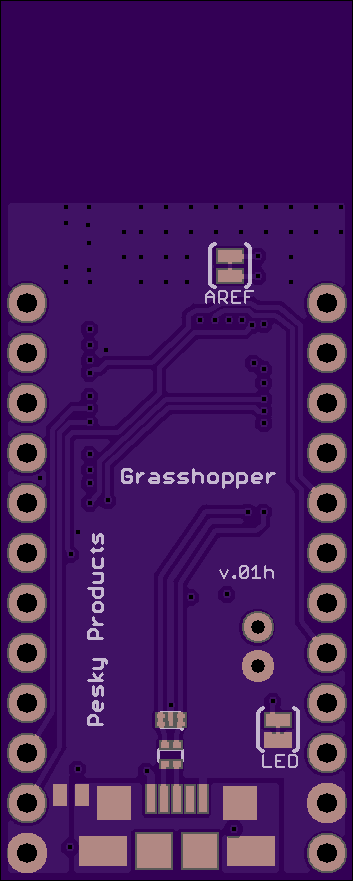

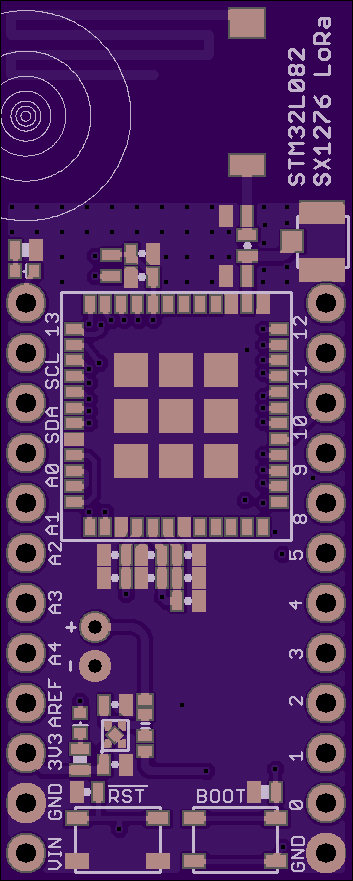

Grasshopper.v01h
by
PeskyProducts.
4
layer board of
0.71x1.76
inches
(17.93x44.73
mm).
Shared on
May 26th, 2017 20:00.
Breakout for Murata (CMWX1ZZABZ) module with STM32L082 + SX1276. Changed pinout to conform to nRF52832 add-on board designed for Butterfly to allow OTA of STM32L082 firmware via BLE using flow-control on UART1.

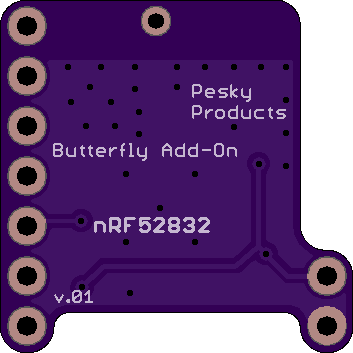

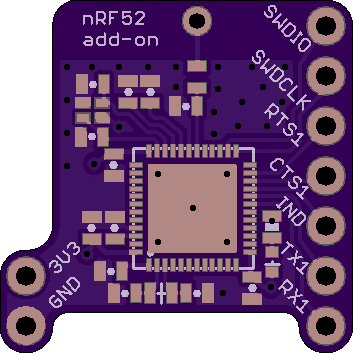

nRF52832_ButterflyAddOn.v01
by
PeskyProducts.
2
layer board of
0.71x0.71
inches
(17.93x17.93
mm).
Shared on
May 25th, 2017 22:01.
BLE add-on for Butterfly and Dragonfly for OTA firmware updates, UART bridge for wireless data transfer using standard Nordic UART Service with hardware flow control to increase speeds to ~5 kbps. Allows update of STM32L4 host firmware wirelessly via BLE.
ICS43434.v01
by
PeskyProducts.
2
layer board of
0.41x0.31
inches
(10.29x7.75
mm).
Shared on
May 25th, 2017 19:28.
ICS43434 I2S Digital Microphone breakout board.

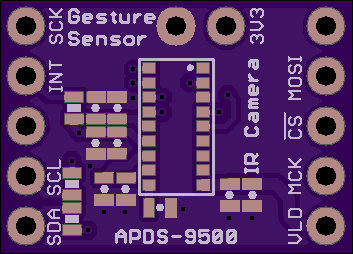

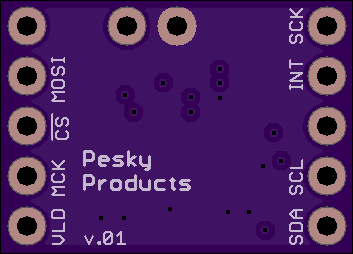

APDS9500.v01
by
PeskyProducts.
4
layer board of
0.71x0.51
inches
(17.91x12.83
mm).
Shared on
May 13th, 2017 23:04.
Breakout for Broadcom’s gesture, proximity, cursor tracking, and IR imaging camera all-in-one motion sensing module.
