Shared projects
LSM9DS0+MS5637TeensyMicroAddOn.v01x
by
PeskyProducts.
2
layer board of
0.61x0.30
inches
(15.39x7.62
mm).
Shared on
October 14th, 2014 03:07.
LSM9DS0 9-axis motion sensor plus MS5637 pressure sensor micro add-on for Teensy 3.1 with hardwired I2C. Removed ground plane beneath LSM9DS0 per ST Microelectronics' recommendation to avoid squirrely magnetometer readings. Also moved traces as far as possible from sensor in an effort to reduce interference with the mag. Is it enough?

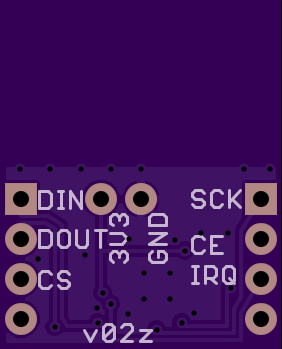

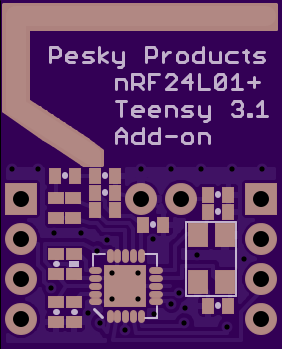

nRF24L01+Teensy3.1Add-On.v02z
by
PeskyProducts.
2
layer board of
0.71x0.87
inches
(17.96x22.20
mm).
Shared on
August 19th, 2014 01:27.
nRF24L01+ 2.4 GHz radio add-on shield for Teensy 3.1 with single-ended PCB antenna designed per Nordic Semiconductor specs

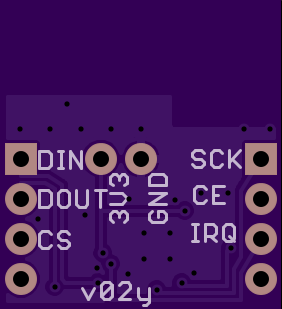

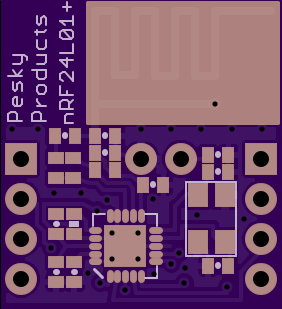

nRF24L01+TeensyMiniAdd-On.v02y
by
PeskyProducts.
2
layer board of
0.71x0.77
inches
(17.96x19.66
mm).
Shared on
August 18th, 2014 06:07.
nRF24L01+ 2.4 GHz radio add-on board for Teensy 3.1 with smaller 16 MHz crystal and in-board antenna instead of low-range ceramic antenna
VL6180XProximitySensorBreakOutBoard.v01
by
PeskyProducts.
2
layer board of
0.71x0.31
inches
(17.98x7.80
mm).
Shared on
August 15th, 2014 05:32.
Breakout board for ST Microelectronics' VL6180X proximity sensor for breadboarding with Teensy and Arduino. VIN is between 3 and 5.5 V. Sensor uses laser range finding (!) to detect absolute distances independent of surface reflectance up to 10 cm away or more depending on ambient lighting. Can be used to recognize hand gestures for sophisticated touchless micro-controlling. Small package, low cost, and low power usage makes integrating into existing projects, or use as a Teensy 3.1 or Arduino Pro Mini add-on board very attractive. Does it work as advertised?
MAX21100+LIS3MDL+MS5637TeensyAdd-On.v01
by
PeskyProducts.
2
layer board of
0.71x0.51
inches
(17.93x12.83
mm).
Shared on
August 13th, 2014 04:42.
MAX21100 6-axis gyro/accelerometer motion sensor plus LIS3MDL 3-axis magnetometer plus MS5637 24-bit pressure sensor. This board can be a Mini Add-On shield for Teensy 3.1 or a standalone breakout board for Arduino breadboard use. Solder jumpers on the back change the source of power to make it breadboard friendly. The board is hardwired for I2C since the pressure sensor is I2C only. The MAX21100 reads data from the magnetometer slave as an I2C master and performs 9 DoF sensor fusion in hardware with quaternions or AHRS heading as output by direct register read. This is what the Invensense MPU9250 DMP should have been; maybe Maxim Integrated got it right?
