Raspberry PI ISP Tool

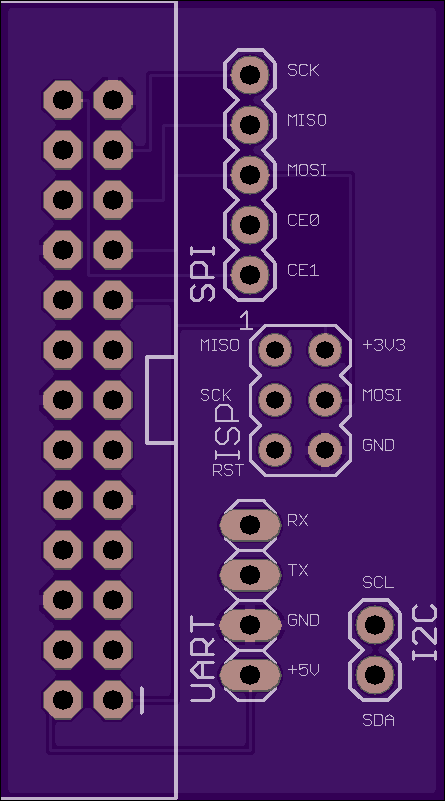

2 layer board of 0.89x1.60 inches (22.56x40.64 mm).
Shared on June 26th, 2016 20:05.

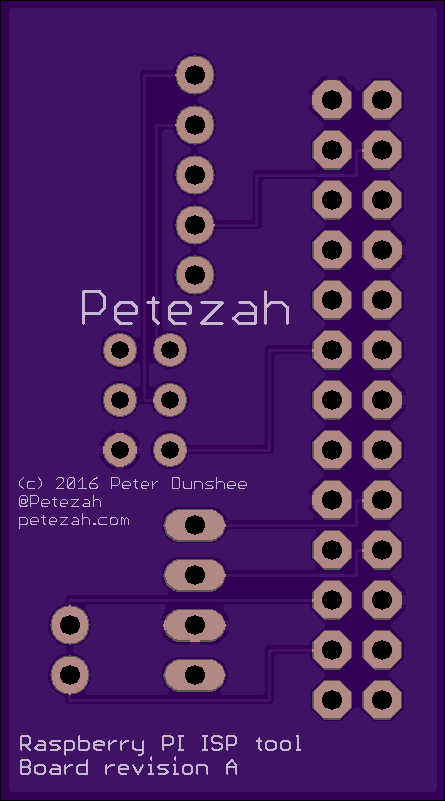

Breakout board to help with AVR ISP and experimentation

Implementation notes:

• ISP reset pin is the GPIO 22 signal from the Raspberry Pi. Attempted to use the hardware SPI SS pin for this, but it does not work as desired. Feel free to experiment on your own; the SS pins are available on the SPI header.
• ISP VCC pin is the 3V3 signal from the Raspberry Pi
• UART VCC pin is the +5V signal from the Raspberry Pi

Order board. Download. Permalink. Embed order link.

Roomba Virtual Wall v2 - rev A

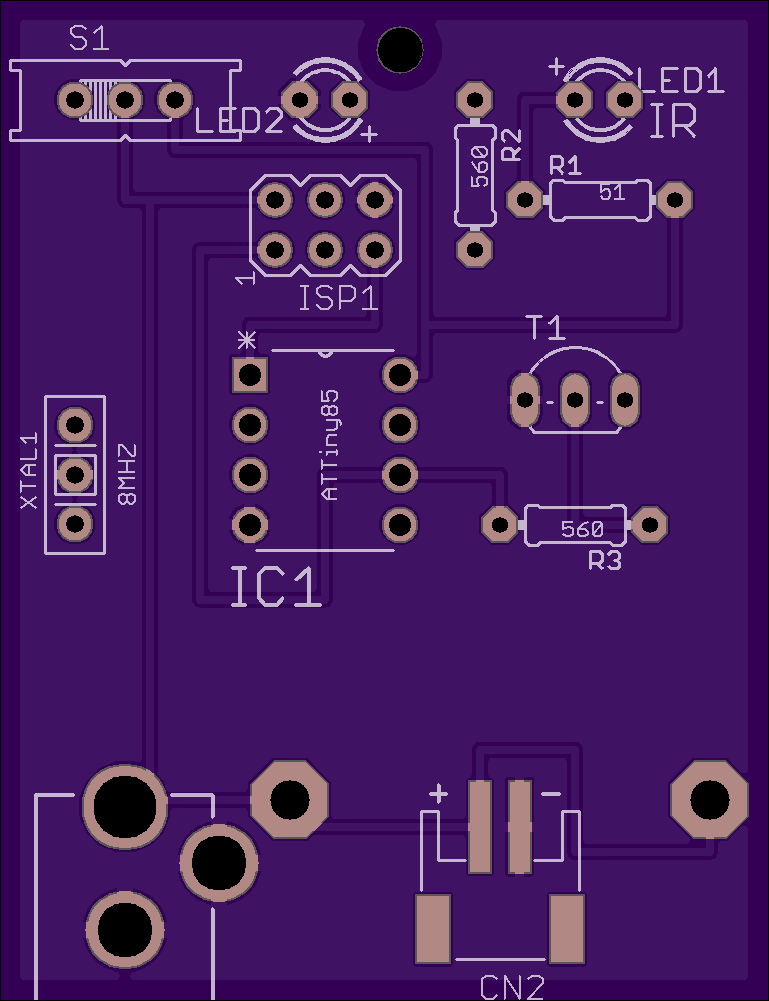

2 layer board of 1.54x2.00 inches (39.04x50.80 mm).
Shared on May 26th, 2016 13:57.

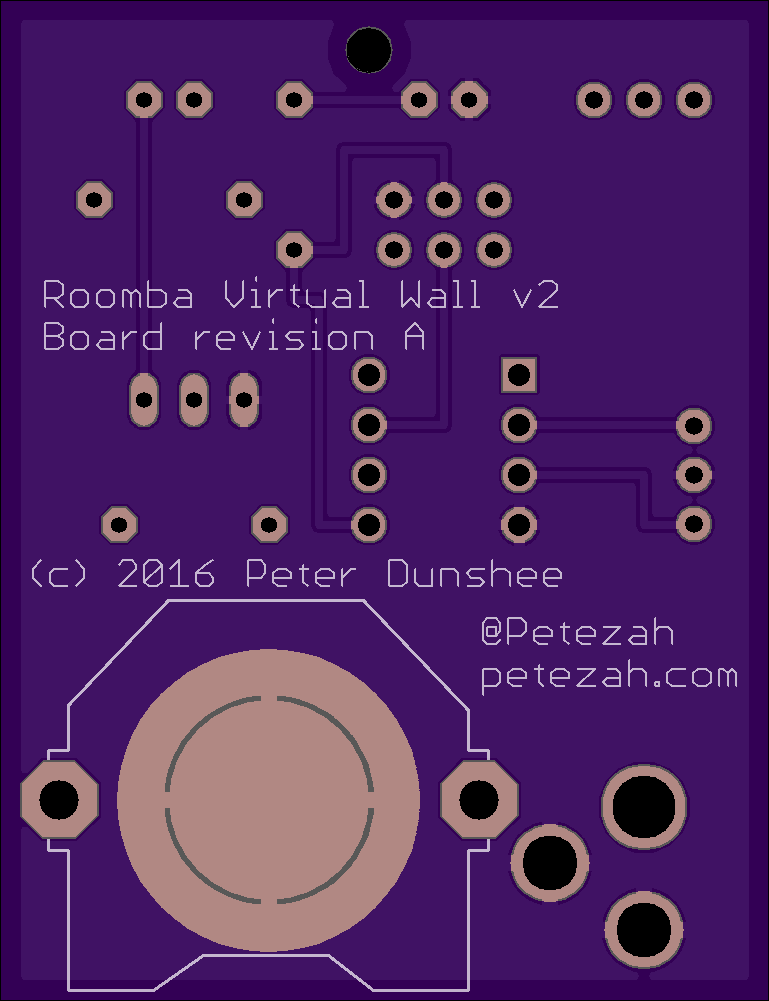

A virtual wall for the iRobot Roomba using the ATTiny85.

See firmware, current BOMs, and instructions, as they are updated, at https://github.com/Petezah/roomba_wall_v2.
