NurseryPager-Hardware, rev. A
by
Petezah.
2
layer board of
2.30x2.00
inches
(58.52x50.90
mm).
Shared on
April 21st, 2017 16:29.
Description
Prototype PCB layout for a pager unit designed to operate on an existing WiFi infrastructure. It has a number of features designed for possible future expansion, to meet whatever requirements may arise during testing.
- OLED screen (0.96" OLED display with FPC connector, from BuyDisplay.com)
- DRV2605L haptic motor driver (and SMT haptic motor)
- ATECC508A crypto-authentication device
- Four soft-touch buttons intented for user interface operation
- Two soft-touch buttons intended for development and testing purposes
- Reset button
- JST connector for a rechargeable LiPo battery
- Micro USB connector for battery charging
NB: The ZIF connector (J1) is reversed in rev. A and requires some kind of mitigation, or an OLED module whose pin 1 is on the left-hand side. My OLED module’s pin 30 is on the left; there may be others that are not like this.
Bill of Materials
| Ref | Qty | Value |
|---|---|---|
| C7 C8 C4 C5 C10 C12 C13 | 7 | 1uF |
| C9 | 1 | 2.2uF |
| C6 | 1 | 4.7uF |
| C3 | 1 | 0.1uF |
| C1 C2 | 2 | 10pF |
| C11 | 1 | 10uF |
| D1 | 1 | MBR120 |
| D2 | 1 | ORANGE |
| D4 | 1 | RED |
| D3 | 1 | GREEN |
| IC2 | 1 | DRV2605L |
| IC3 | 1 | AP2112K-3.3 |
| IC1 | 1 | MCP73831 |
| IC4 | 1 | ATECC508A |
| J1 | 1 | OLED-0.96W** |
| M1 | 1 | Z4FC1B1301781 |
| P1 | 1 | 10103594-0001LF |
| P2 | 1 | S2B-PH-SM4-TB |
| R1 R3 R4 R6 R9 R11 R10 R7 R12 R16 R20 R17 R18 R19 | 14 | 10K |
| R2 | 1 | 390K |
| R5 R8 | 2 | 470 |
| R15 | 1 | 1K |
| R13 | 1 | 1220K |
| R14 | 1 | 220K |
| SW1 SW6 SW7 | 3 | EVQ-PE104K |
| SW5 SW2 SW3 SW4 | 4 | EVQ-P7A01P |
| X1 | 1 | ESP-12S |
** OLED-0.96W is 30 pin 0.5mm pitch ZIF connector (bottom contact) from BuyDisplay.com

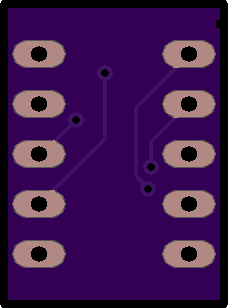

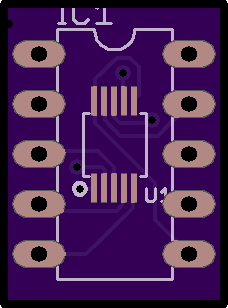

VSSOP10-breakout.brd
by
Petezah.
2
layer board of
0.46x0.62
inches
(11.61x15.65
mm).
Shared on
February 4th, 2017 16:19.
Breakout for a VSSIP10 chip. NB: This is a very specific application, and pins 10 and 6 are actually connected for that reason. If you need pin 10 broken out separate, cut the trace at the top of the DIP footprint and solder a jumper from pin 10 on the VSSOP to pin 10 on the DIP. ALSO: there happens to be a via right under the dot on the silkscreen; so just pay attention to where the “U1” marker is when orienting the chip. :(

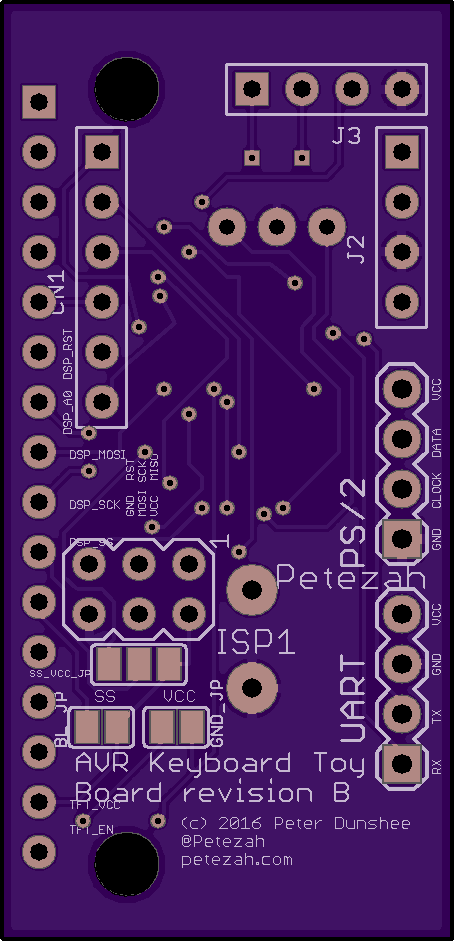

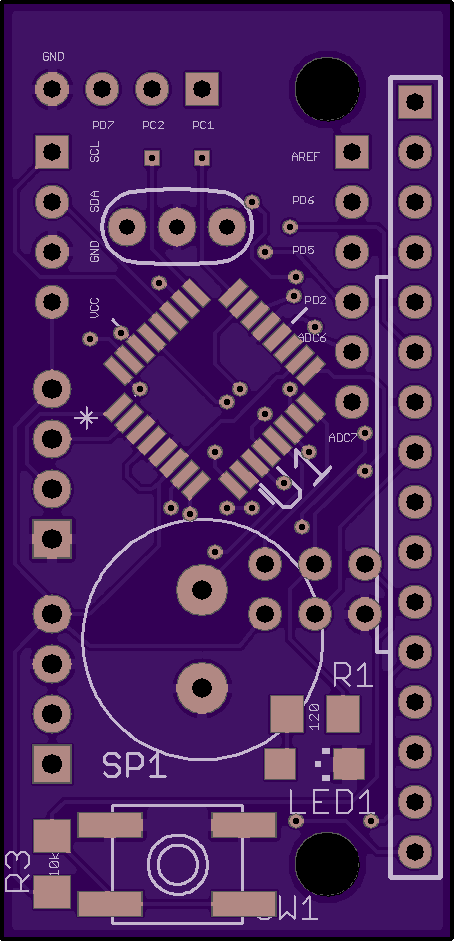

AVR Keyboard Toy (rev B)
by
Petezah.
2
layer board of
0.91x1.88
inches
(23.06x47.83
mm).
Shared on
December 12th, 2016 19:16.
AVR-based keyboard learning toy

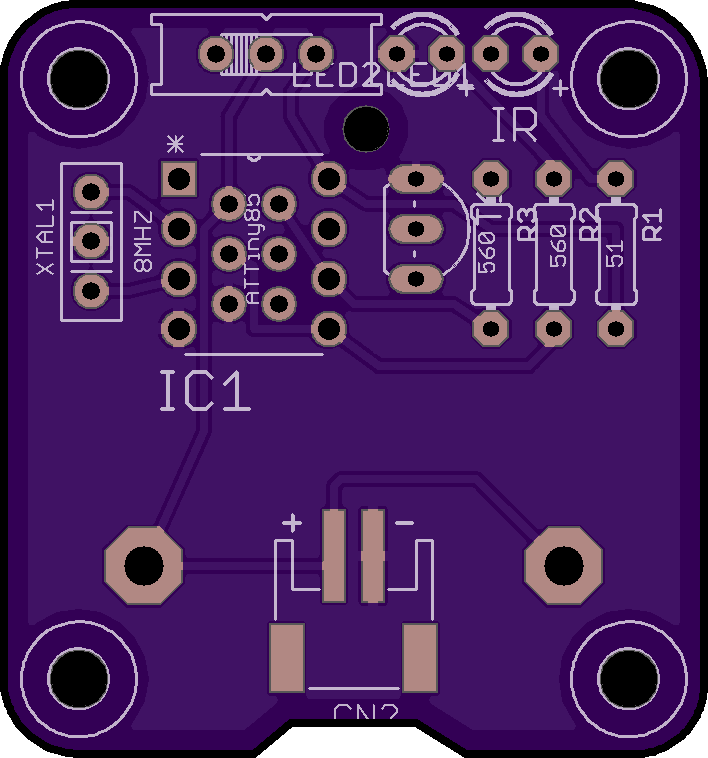

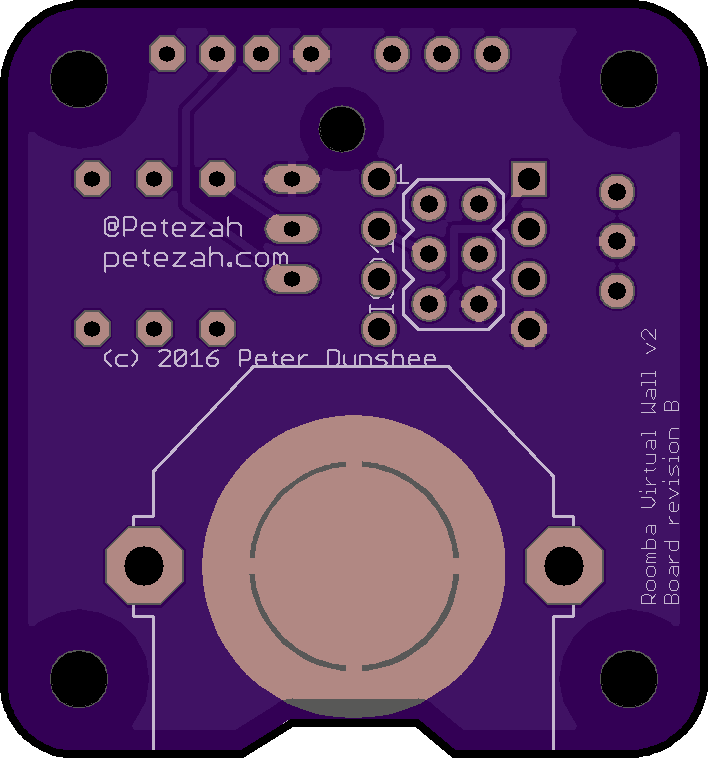

Roomba Virtual Wall v2 - rev B
by
Petezah.
2
layer board of
1.42x1.52
inches
(35.99x38.53
mm).
Shared on
September 10th, 2016 01:29.
A virtual wall for the iRobot Roomba using the ATTiny85.

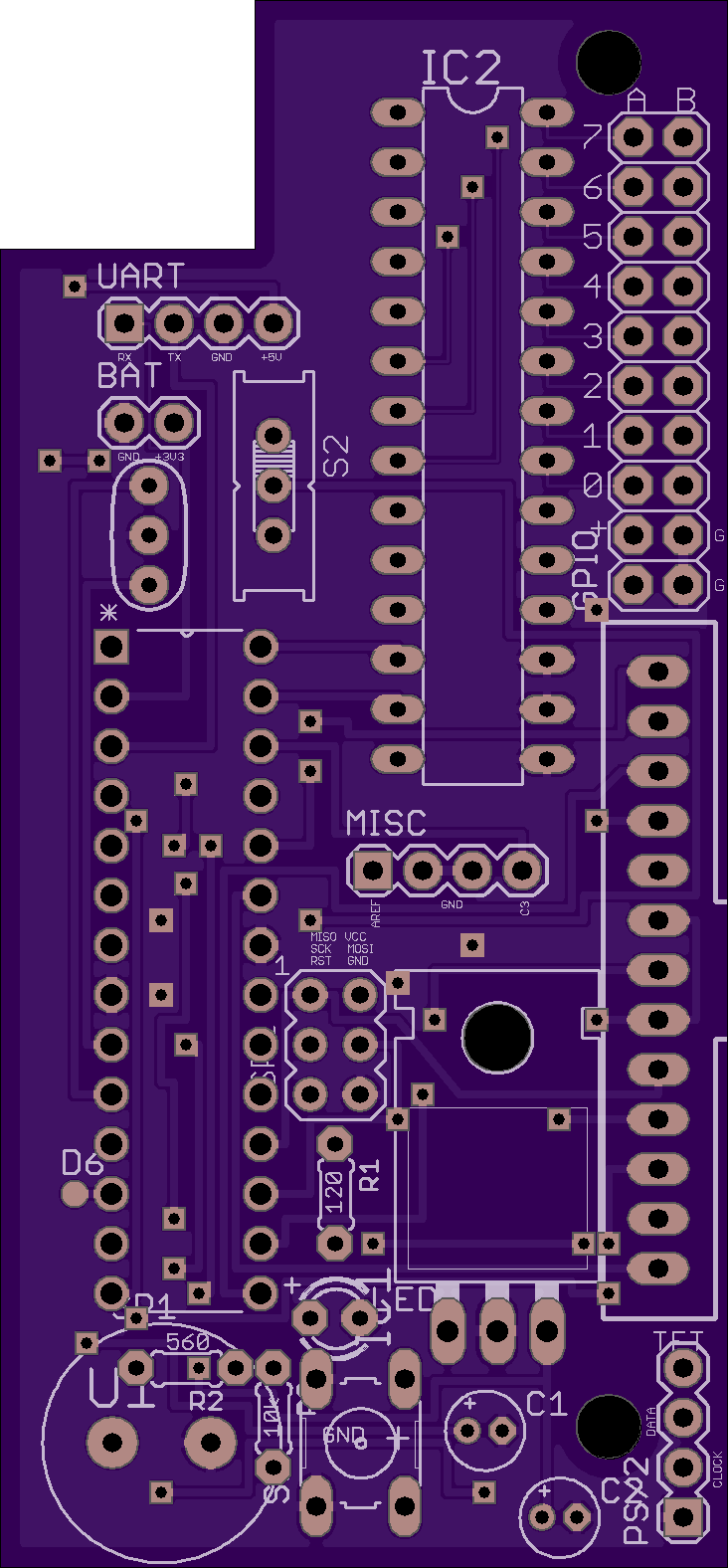

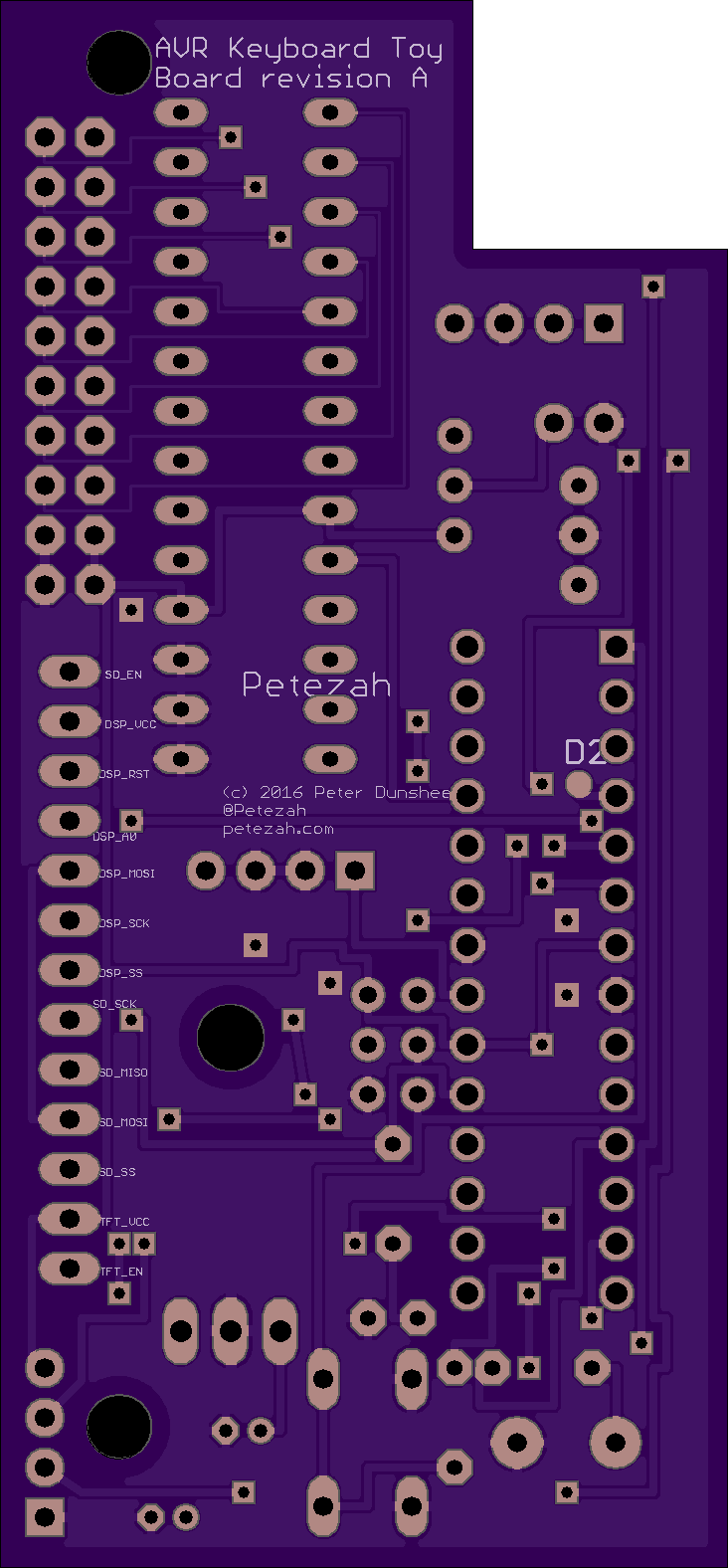

AVR Keyboard Toy (rev A)
by
Petezah.
2
layer board of
1.46x3.15
inches
(37.16x80.04
mm).
Shared on
June 26th, 2016 20:05.
AVR-based keyboard learning toy
