Micro TV-B-Gone

by Quarren42.
Top
Bottom

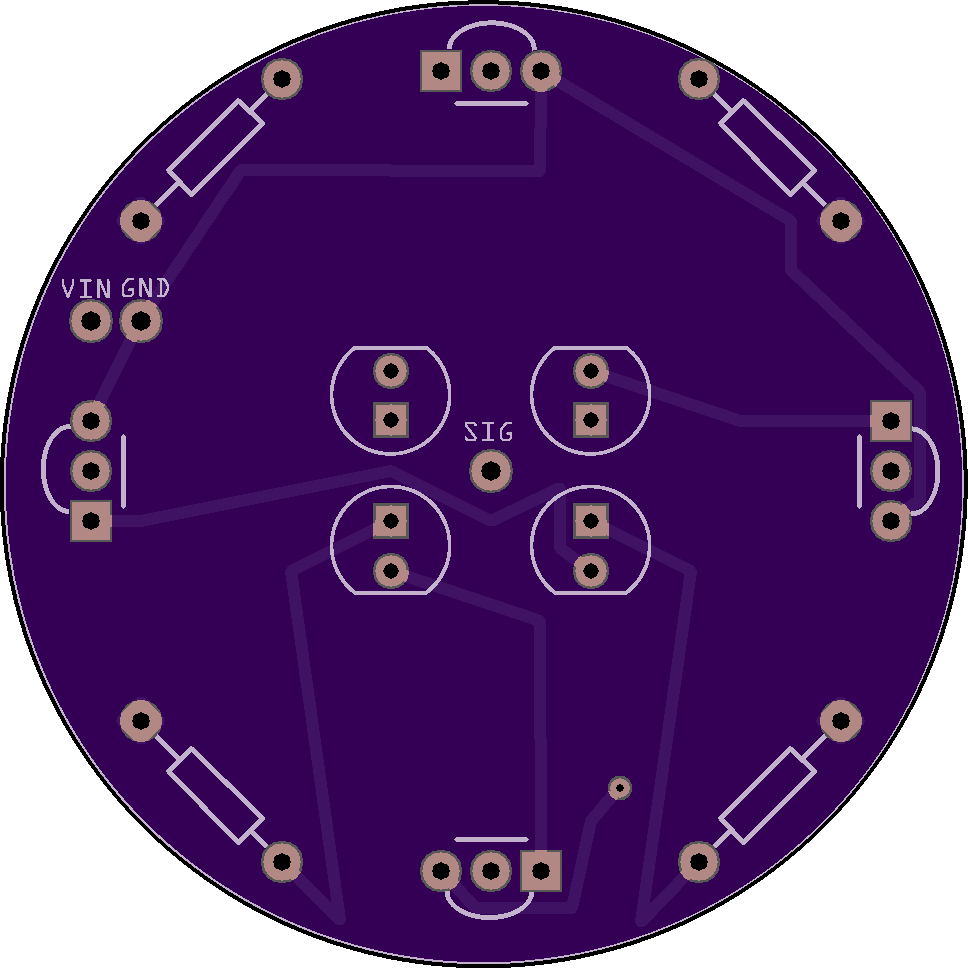

2 layer board of 1.00x1.00 inches (25.48x25.48 mm).
Shared on April 23rd, 2017 04:01.

SMD version of the TV-B-Gone

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

OpenSwarm

by Quarren42.
Top
Bottom

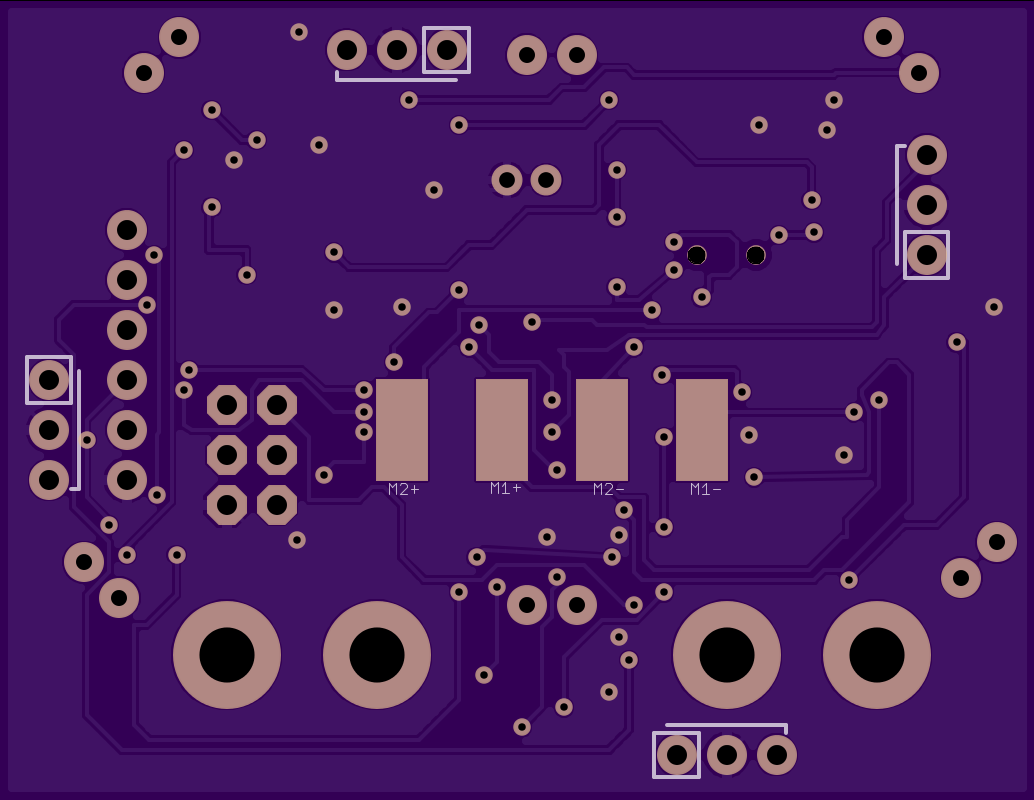

2 layer board of 2.07x1.60 inches (52.53x40.64 mm).
Shared on February 17th, 2016 01:26.

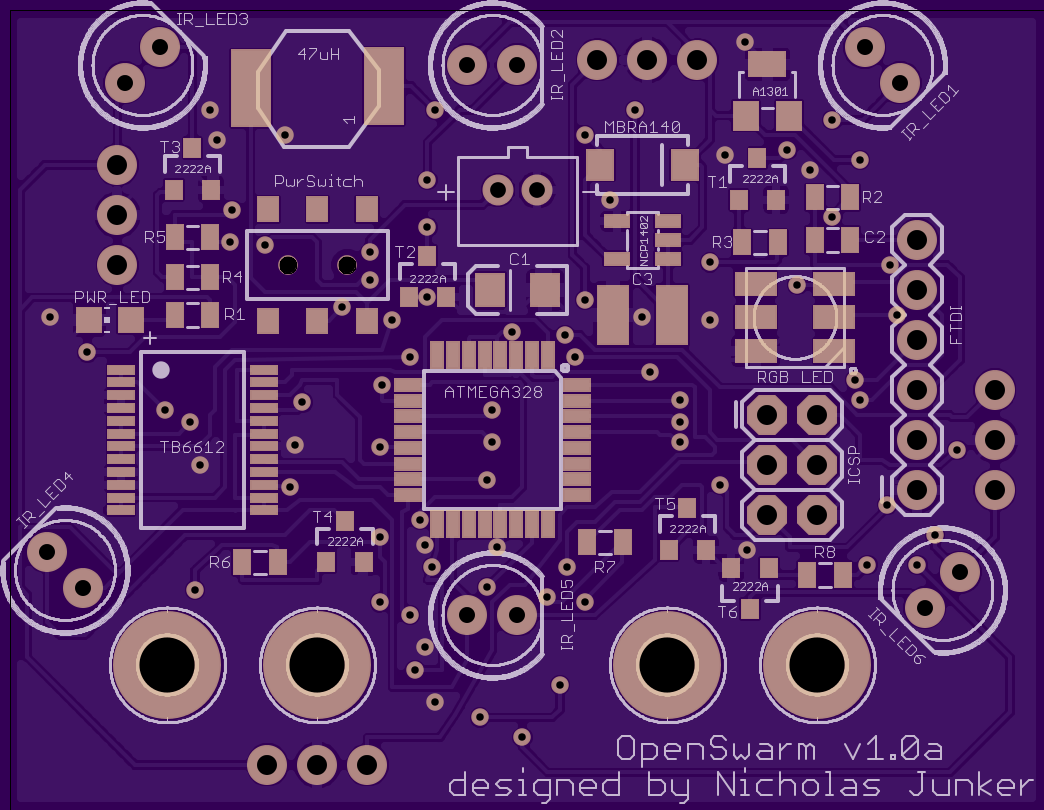

Open source, low cost swarm robotics prototyping platform. This is the first revision board, will greatly improve layout soon, just need the boards for proof of concept now.

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

VEX UART-AM Converter

by Quarren42.
Top
Bottom

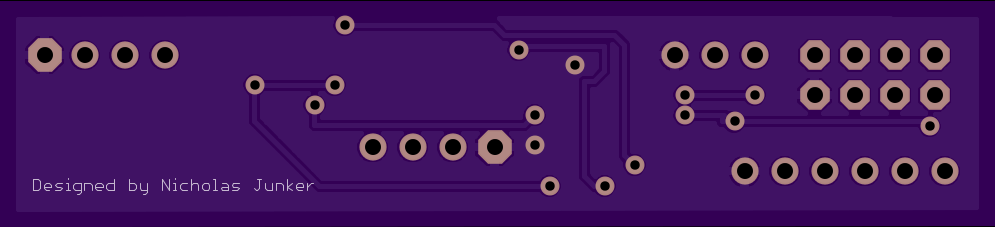

2 layer board of 2.49x0.57 inches (63.17x14.43 mm).
Shared on May 18th, 2015 17:24.

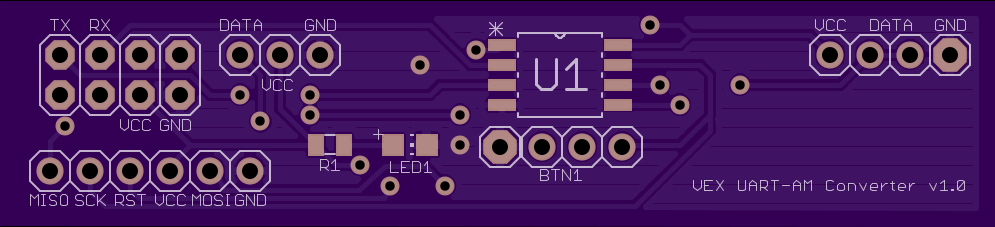

Attiny85 converts UART signals from a VEX Cortex to a 433Mhz radio signal for cross-cortex communication.

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

TV-B-Gone Watch PCB

by Quarren42.
Top
Bottom

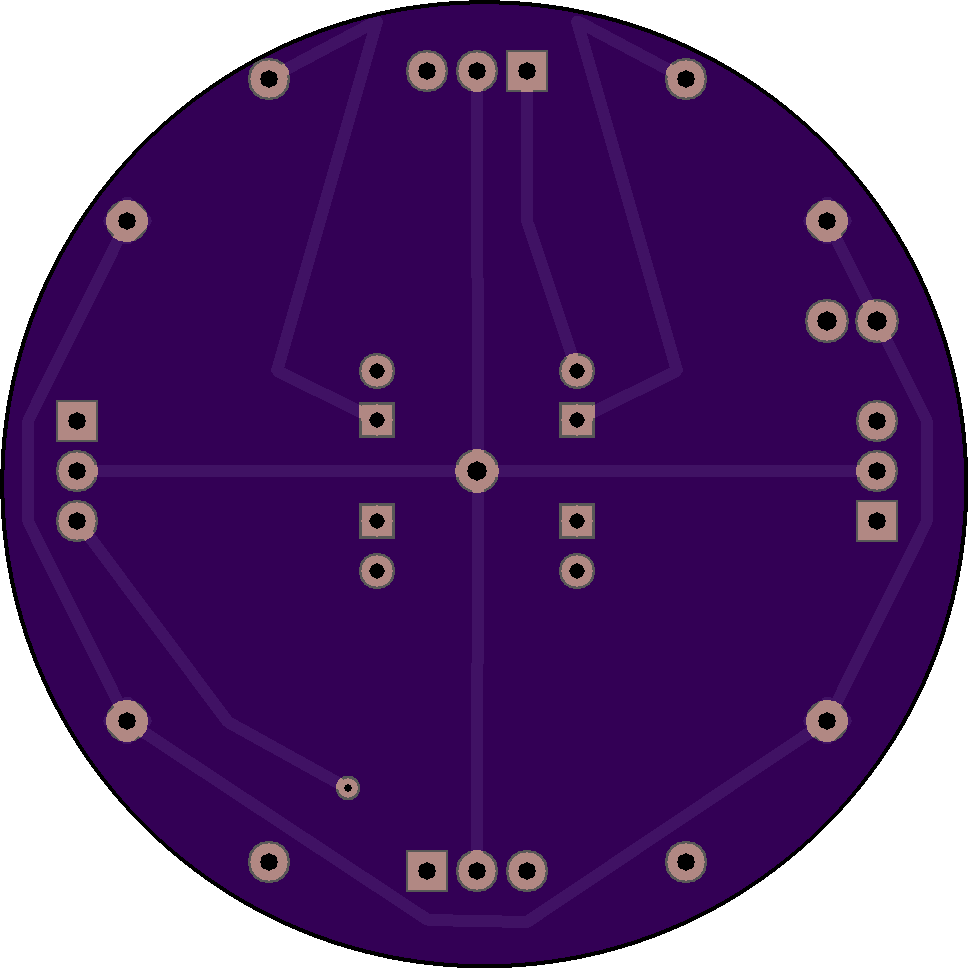

2 layer board of 1.94x1.94 inches (49.20x49.20 mm).
Shared on February 27th, 2014 02:35.

Making a watch that has the features of a TV-B-Gone - this PCB holds the IR LED’s.

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project
