Shared projects
batteryMonitor.brd
by
RVProject.
2
layer board of
2.10x1.53
inches
(53.29x38.86
mm).
Shared on
May 4th, 2017 19:41.
RV Charger/Battery MonitorV1.2
The purpose of this board is to display the current state of a 3 or 4 stage smart charger (Equalization/Bulk/Absorption/Float) in a RV or boat, as well as monitor the state of discharge of a Lead Acid battery. This is a simply device using an Atmel ATTiny85, and can be used stand-alone, or in conjunction with a DC Voltmeter to monitor your RV’s charger and battery health.
For details, visit http://www.rv-project.com/projects/batterymonitor2.php

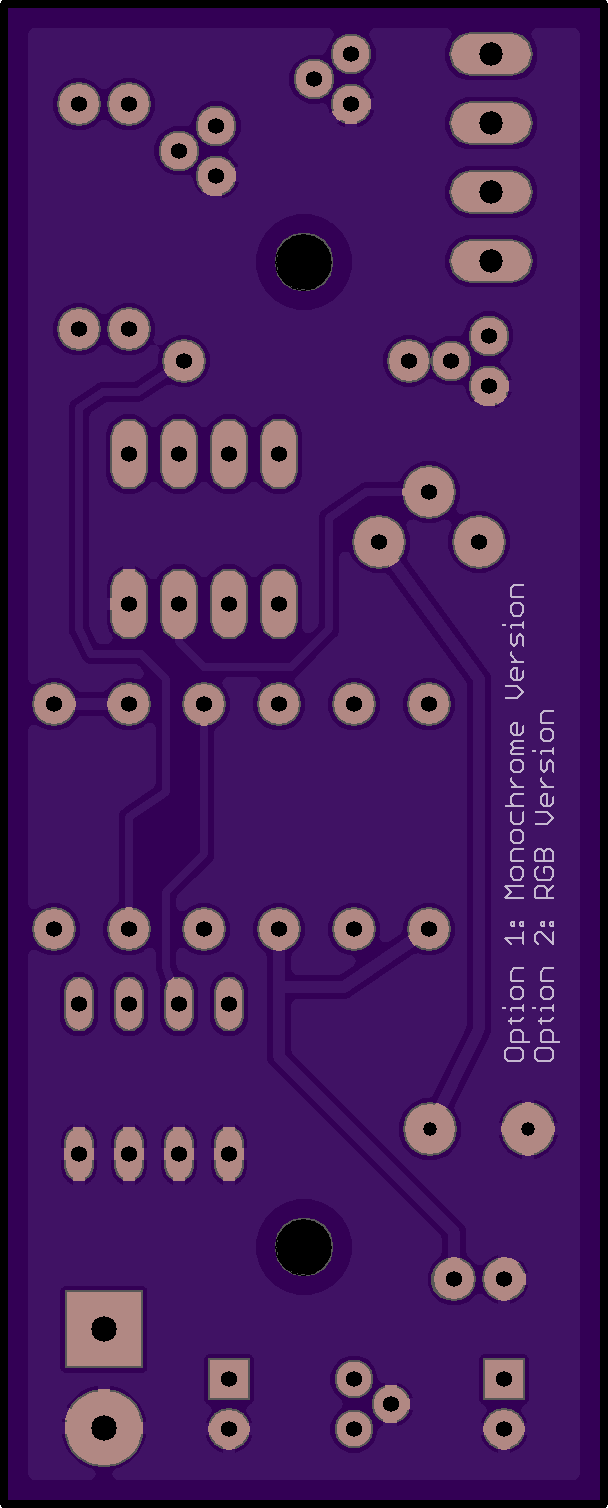

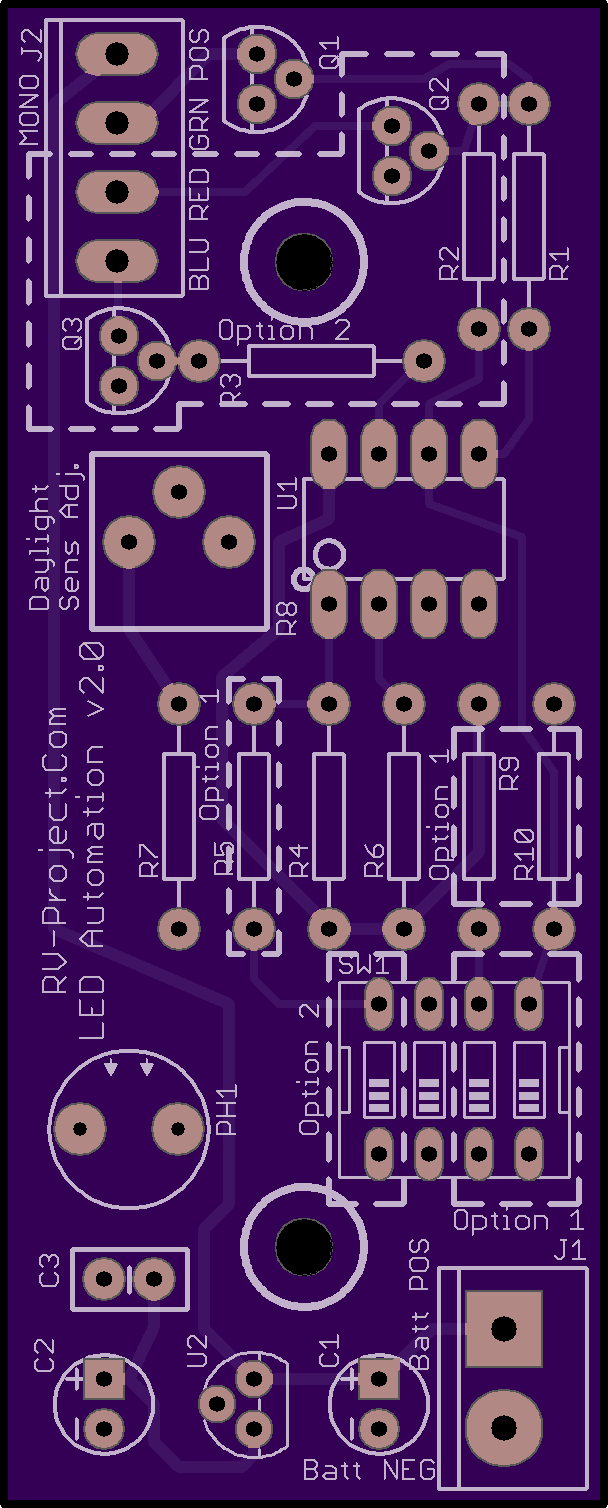

LEDDriver2.brd
by
RVProject.
2
layer board of
1.22x3.02
inches
(30.91x76.61
mm).
Shared on
April 17th, 2017 16:04.
LED Strip Automation. The purpose of this board is to automate short lengths (3~6ft) of a monochrome or RGB led strip. Typically the LED strip would be used around the periphery of a sign or other item to draw attention to it.
For details, visit http://www.rv-project.com/projects/rvsign2.php
