Shared projects

TC Level Pilot

by Spaiz.
Top
Bottom

2 layer board of 0.74x0.57 inches (18.77x14.55 mm).
Shared on April 5th, 2017 14:25.

TC Electronics Level Pilot Replacement Board

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

distro hp amp

by Spaiz.
Top
Bottom

2 layer board of 1.41x0.51 inches (35.76x12.95 mm).
Shared on April 5th, 2017 14:25.

audio part of a 4 output headphone distribution amplifier

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

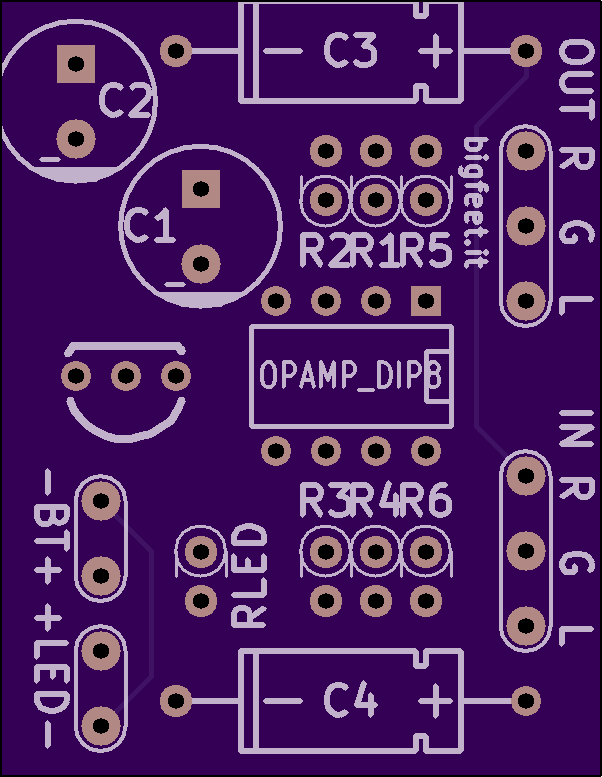

Spi CMoy

by Spaiz.
Top

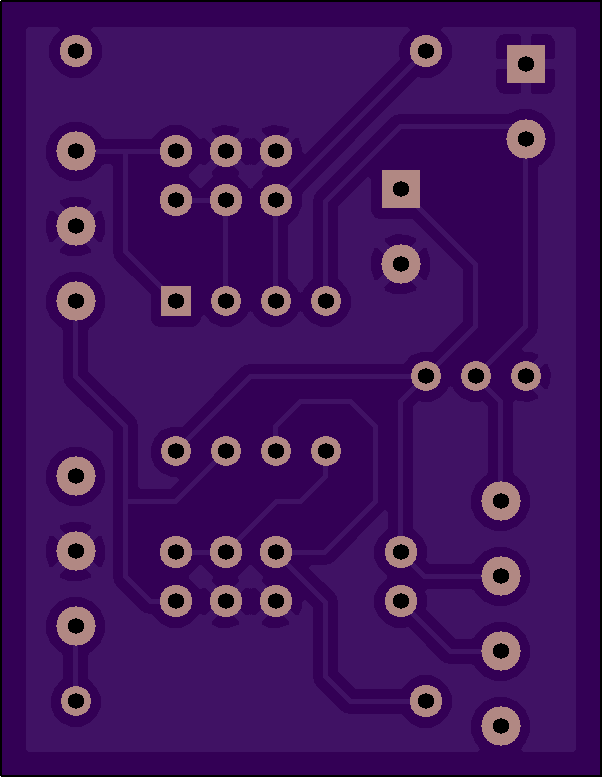

Bottom

2 layer board of 1.20x1.55 inches (30.58x39.47 mm).
Shared on February 22nd, 2016 22:07.

Simple CMoy layout - a headphone amplifier. Plz note that connections to pin 5&6 are wrong, they have to be manually swapped (R3 to pin 5, R4 to pin6.)

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project
