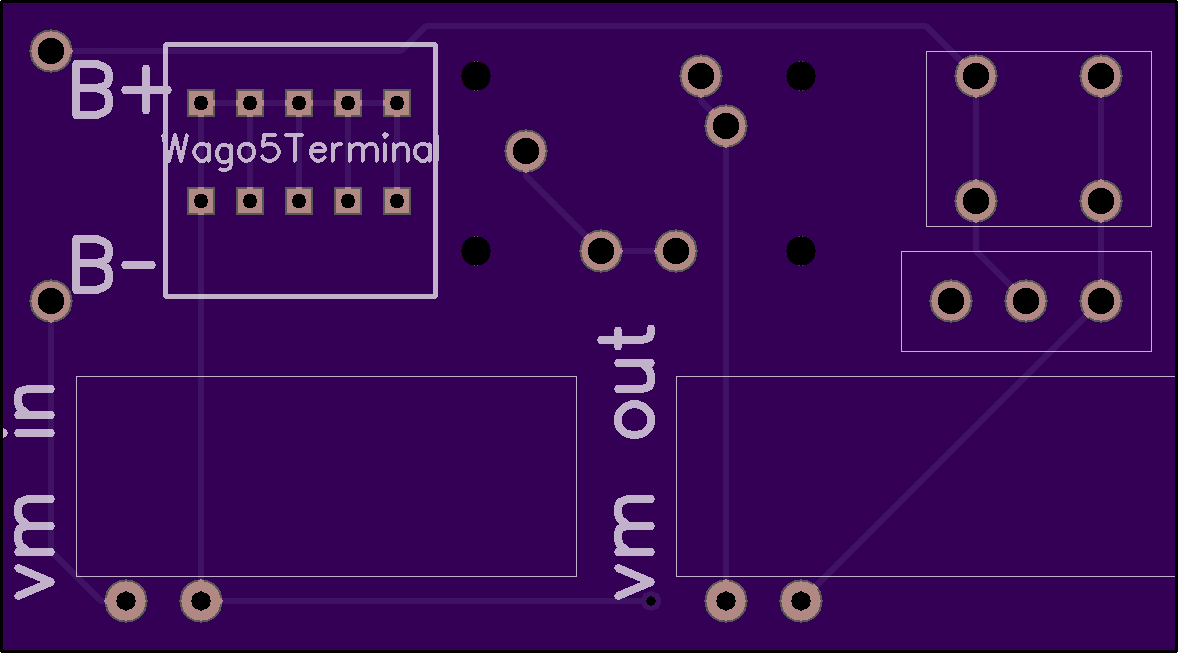

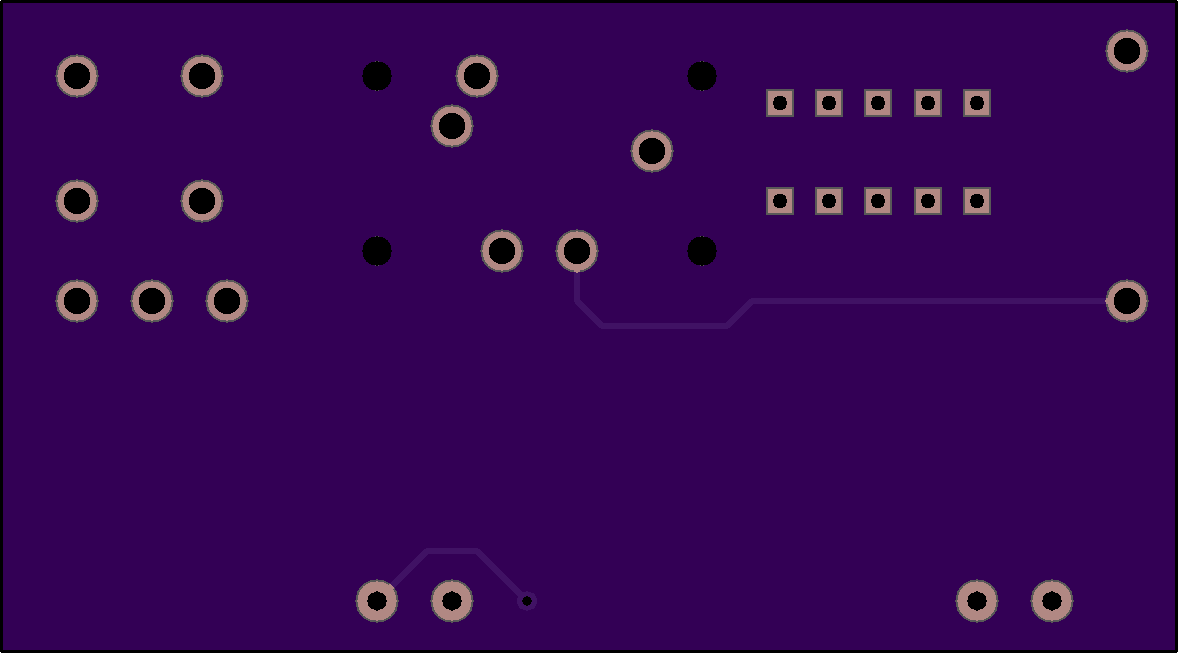

PotBelly v1 - v4 test rig
by
SwedishVaper.
2
layer board of
2.36x1.31
inches
(59.84x33.17
mm).
Shared on
March 10th, 2017 15:31.
TESTED AND WORKING
parts required:
pogopins 1.6mm dia max (holes may have to be enlarged slightly) 2 voltmeters (blue) pcb header pins. spdt tact switch
Supply power from a dc-dc boost converter.
Breadboard friendly pin pitch.

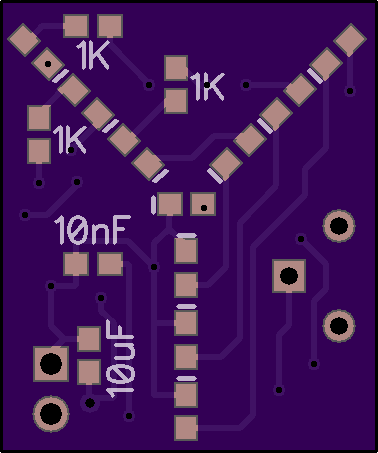

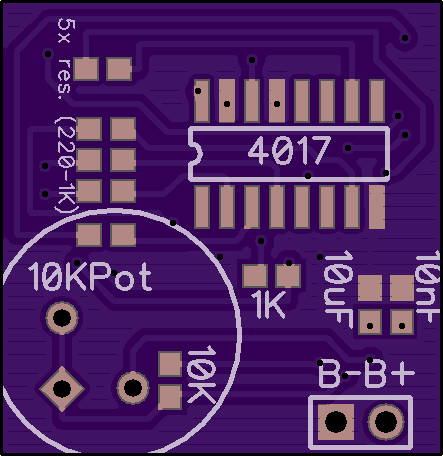

Flux Capacitor v4.1 10 LED version
by
SwedishVaper.
2
layer board of
0.76x0.91
inches
(19.20x23.01
mm).
Shared on
December 6th, 2016 12:27.
TESTED AND WORKING
(Support will only be offered on projects marked “TESTED AND WORKING”, and only on the moxbods facebook group.
Any previous projects that are now deleted are used at your own risk.)
Parts required are printed on the pcb.
Requires 8v min. to run. can take up to a maximum of 16v. Made for 3S really.

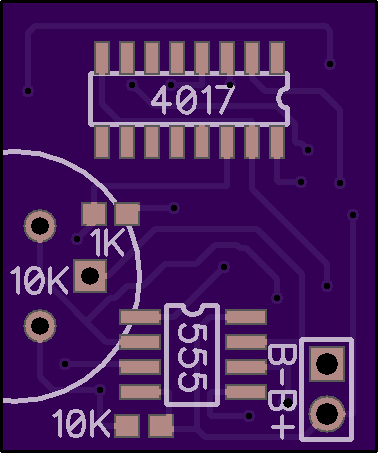

0603 LED’s (neg towards white lines), 0603 resistors and caps, and soic-8 555 and a 4017 soic-16 IC also required as well as a 10K pot.

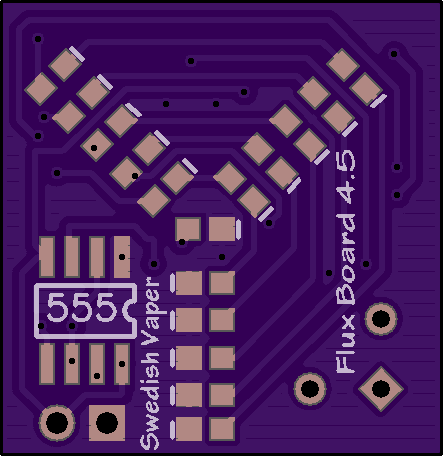

Flux Capacitor v4.5 16 LED version
by
SwedishVaper.
2
layer board of
0.89x0.91
inches
(22.53x23.16
mm).
Shared on
December 6th, 2016 12:18.
TESTED AND WORKING
(Support will only be offered on projects marked “TESTED AND WORKING”, and only on the moxbods facebook group.
Any previous projects that are now deleted are used at your own risk.)
Parts required are printed on the pcb.
Requires 8v min. to run. can take up to a maximum of 16v. Made for 3S really.
0603 LED’s (neg towards white lines), 0603 resistors and caps, and soic-8 555 and a 4017 soic-16 IC also required as well as a 10K pot.

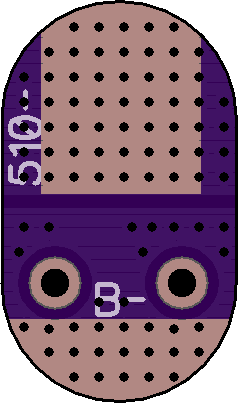

Swedish Vaper Mosfet Snapback
by
SwedishVaper.
2
layer board of
0.48x0.81
inches
(12.07x20.47
mm).
Shared on
November 30th, 2016 14:59.
UNTESTED
(Support will only be offered on projects marked “TESTED AND WORKING”, and only on the moxbods facebook group.
Any previous projects that are now deleted are used at your own risk.)

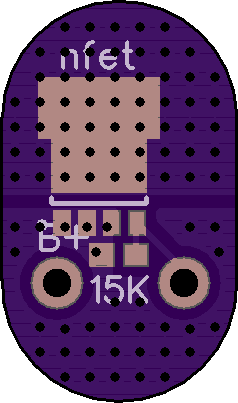

For mounting to the screw posts of a FDV 10A switch.
needs: fdv switch lfpak mosfet 15k 0603 resistor
A voltmeter can be attached.
Swedish Vaper PotBelly BackPack v3
by
SwedishVaper.
2
layer board of
0.53x0.53
inches
(13.49x13.49
mm).
Shared on
November 22nd, 2016 11:14.
TESTED AND WORKING
(Support will only be offered on projects marked “TESTED AND WORKING”, and only on the moxbods facebook group.
NOTE: make sure resistor does not short against p-fet on PotBelly board.
Any previous projects that are now deleted are used at your own risk.)
Parts required:
1 x 1K ohm 0603 resistor 1 x PSMN1R5-30YLC n-fet (lfpak)
Designed as an add-on to the Swedish Vaper PotBelly v1, v2 & v3, but can be used as a standalone fet-board.
