NRF24L01 inline 1.27mm breadboard adapter.

by TALHA-no.
Top
Bottom

2 layer board of 0.79x0.26 inches (20.14x6.50 mm).
Shared on June 9th, 2017 11:30.

Breadboard adapter for both Ceramic and PCB antenna NRF24L01 with 1.27mmm spacing. Space for extra capacitor on both sides.

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

TrailerLight V2 Remote Control Euro7-pin

by TALHA-no.
Top
Bottom

2 layer board of 1.40x1.40 inches (35.66x35.66 mm).
Shared on May 30th, 2017 23:44.

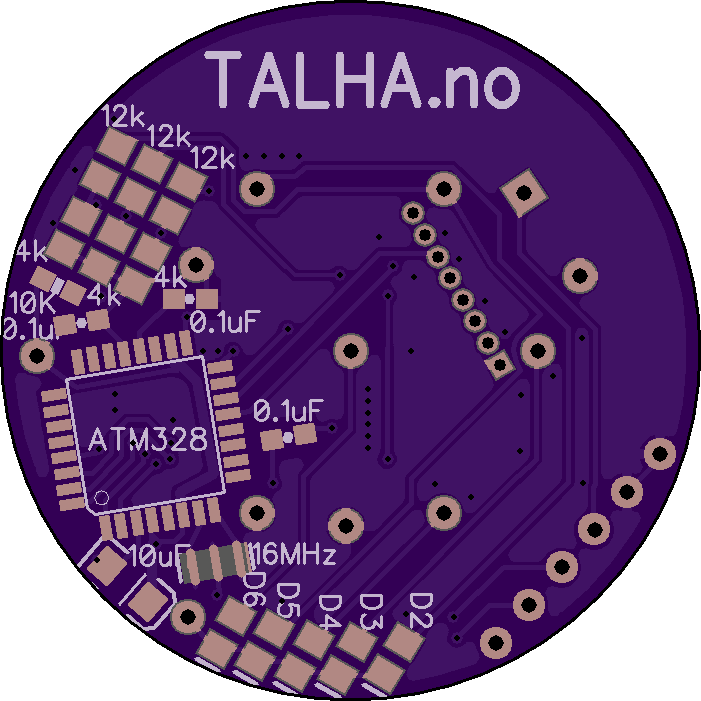

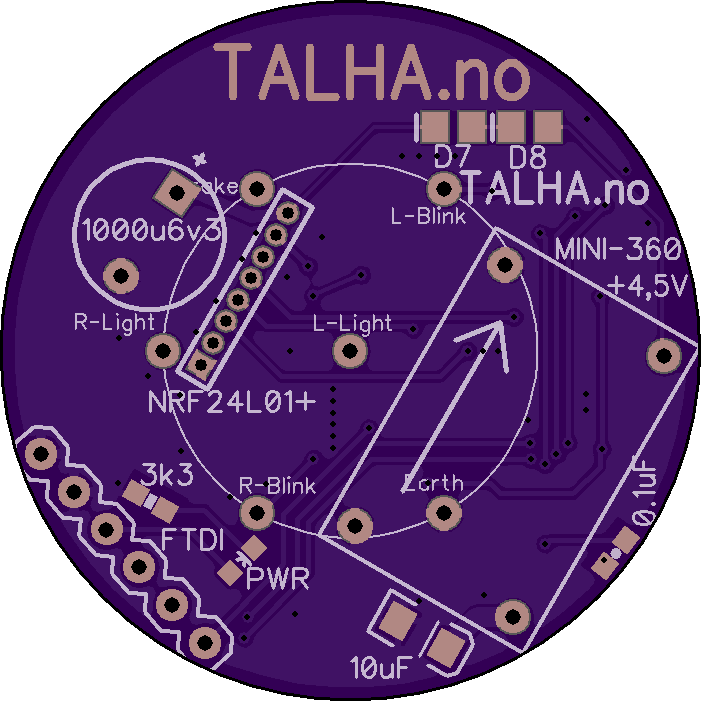

Remote PCB for wireless trailer- and towing- lights based on ATmega328 and “1,27mm pitch NRF24L01+ ceramic”. Designed to fit inside “tirol 7 pin trailer plug”

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

ControLeo2cloneV3-.zip

by TALHA-no.
Top
Bottom

2 layer board of 3.94x3.94 inches (100.15x100.15 mm).
Shared on May 14th, 2017 18:39.

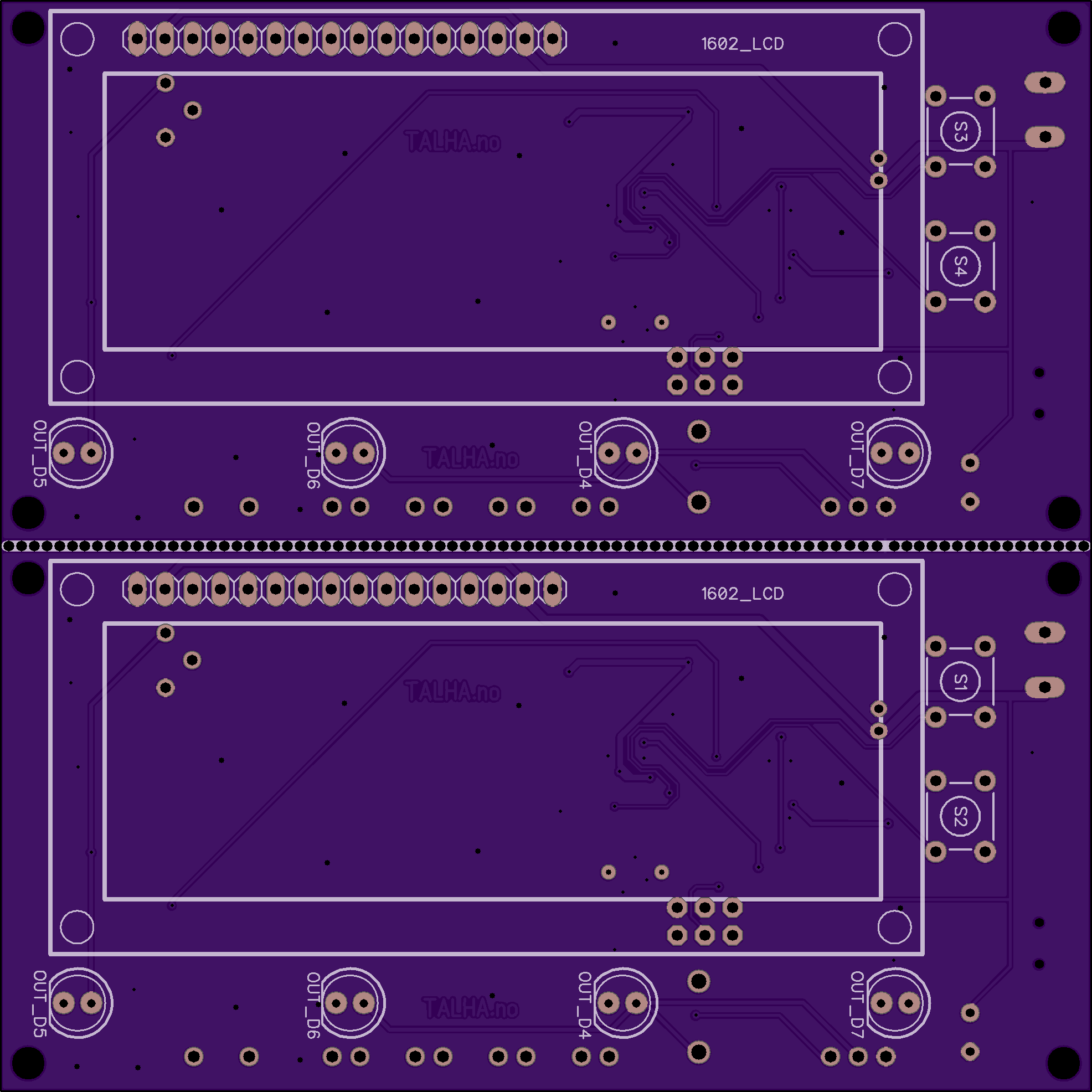

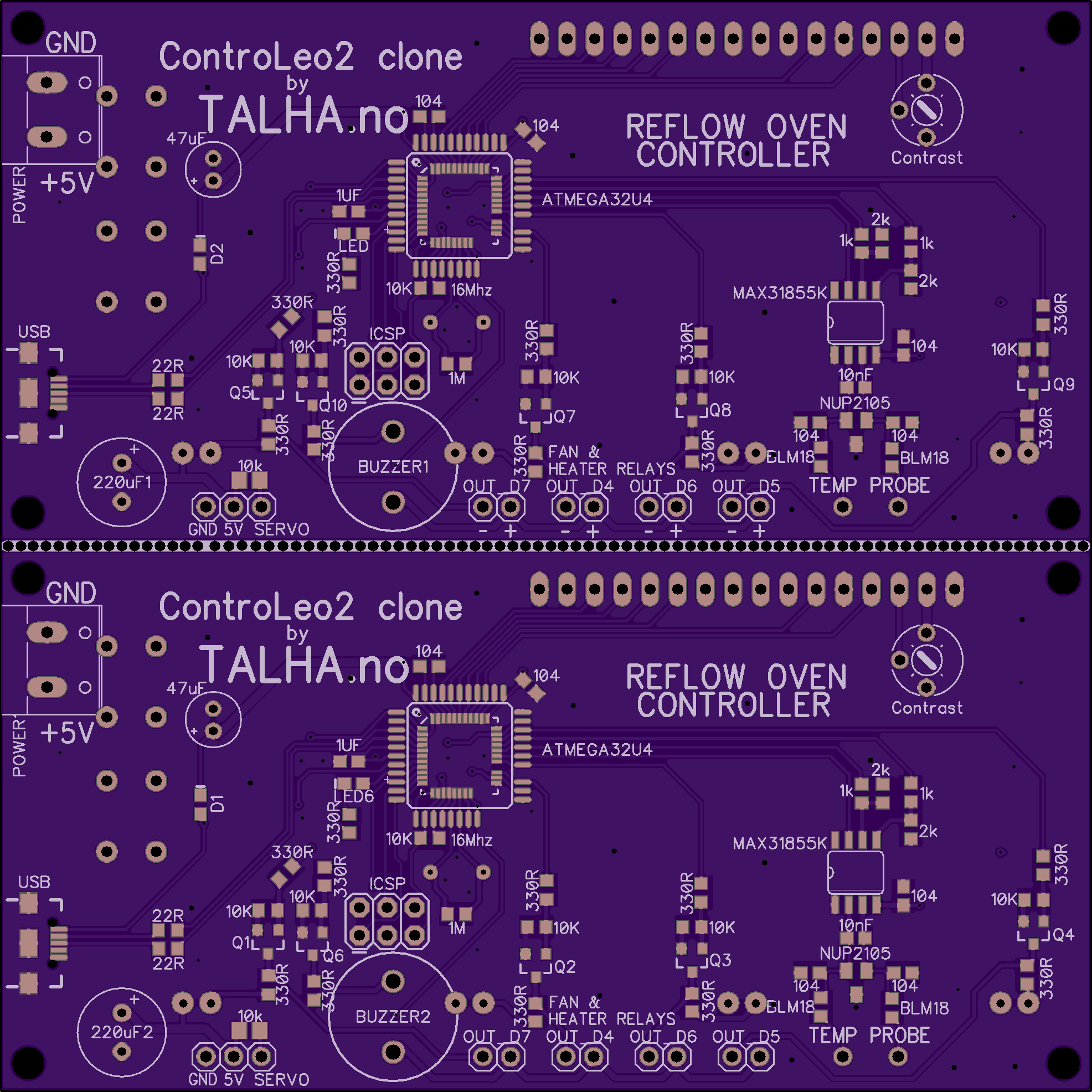

ControLeo2 clone This board is made on a 100x100 board (OSH says 100.15, just a metric conversion problem) to maximize the value at chinese PCBfabs. Possible to buy 20 PCBs for under $ 20,-@seeeds. OSH Park will set you back four times that for a set of 6 PCBs. Most of the components is printed on the PCB, the rest is mostly diodes, NPN-transistors, capacitors and noise supressors. Will probably work just fine without most of them. Atmega32u4 QFN-44 or TQFP-44 package. TALHA.no
