Shared projects
Super FX 3.3V SMD Oscillator adapter
by
The_Real_Phoenix.
2
layer board of
0.66x0.30
inches
(16.81x7.62
mm).
Shared on
April 30th, 2017 04:09.
Adapter for 3.3V SMD Oscillator. Replace the HCU04 on Super FX games.
Order the PCB in 0.8mm thickness.
•7.00mm x 5.08mm SMD 4pin oscillator
•REG LDO 3.3V SOT223
Starfox 2 Adapter Rev. 3
by
The_Real_Phoenix.
2
layer board of
1.60x0.91
inches
(40.64x23.19
mm).
Shared on
April 30th, 2017 04:09.
Starfox 2 Adapter for 27C801 on SHVC-1CA6B Please use 0.8mm thick board.
Game Boy Nano Controller REV2.brd
by
The_Real_Phoenix.
2
layer board of
1.71x0.90
inches
(43.51x22.86
mm).
Shared on
February 16th, 2017 03:00.
/!\ BOARD NOT TESTED YET /!\

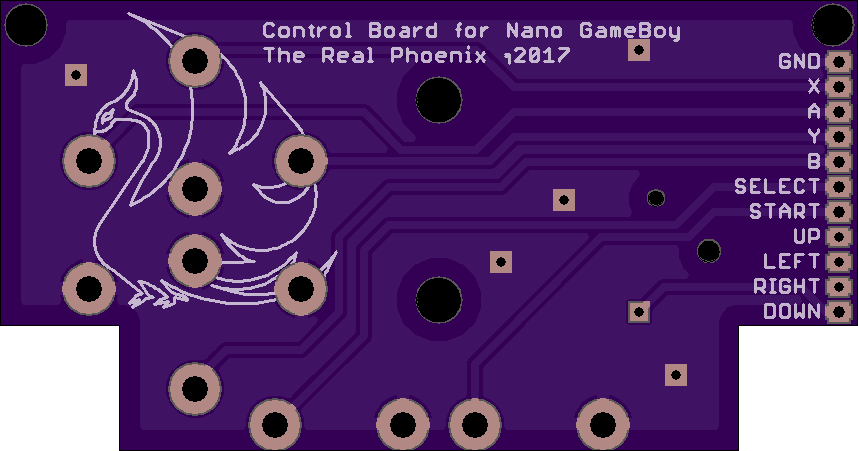

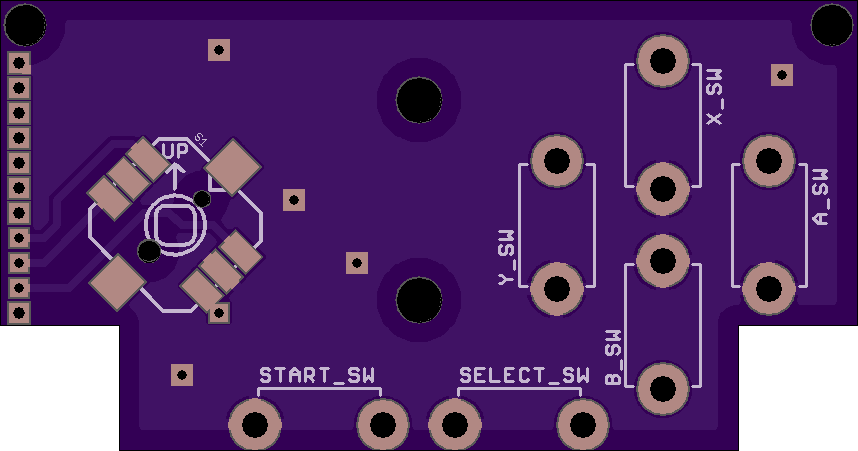

Controller board for Game Boy Nano. The REV2 is slightly shorter.
Starfox 2 27C801 Adapter REV. 2
by
The_Real_Phoenix.
2
layer board of
1.60x0.90
inches
(40.64x22.86
mm).
Shared on
October 22nd, 2015 23:16.

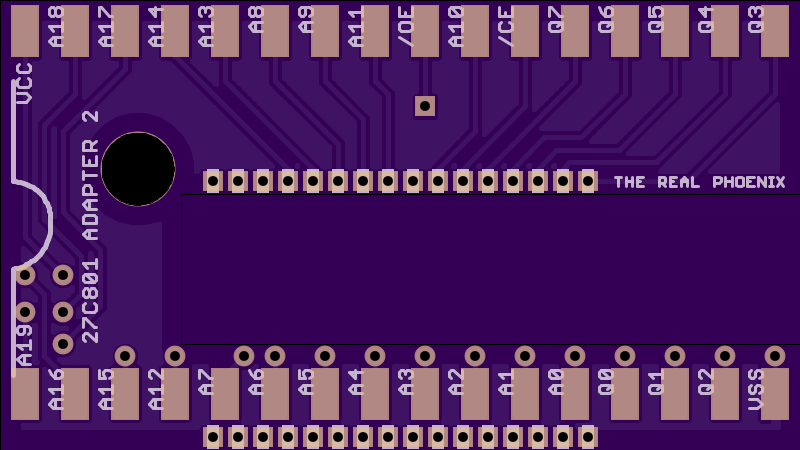

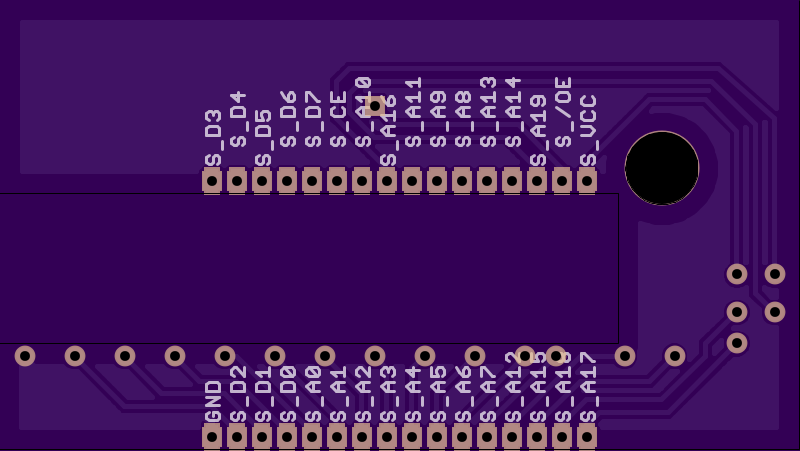

Allow to put a 27C801 on a Stunt Race FX pcb (1CA6B-01) for Star Fox 2 reproduction. Rev 2, larger than Rev 1 for better installation.
Switchless Mod for Sega Genesis
by
The_Real_Phoenix.
2
layer board of
0.85x1.40
inches
(21.62x35.59
mm).
Shared on
July 27th, 2014 19:59.
Based on Dforce3000’s mod.

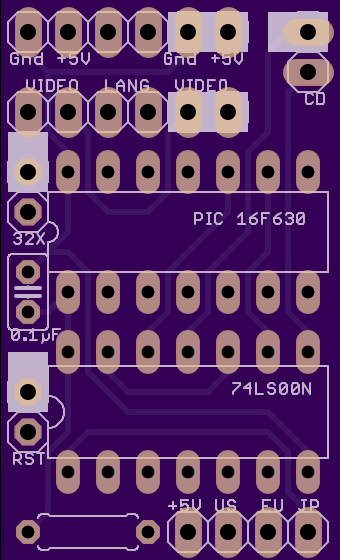

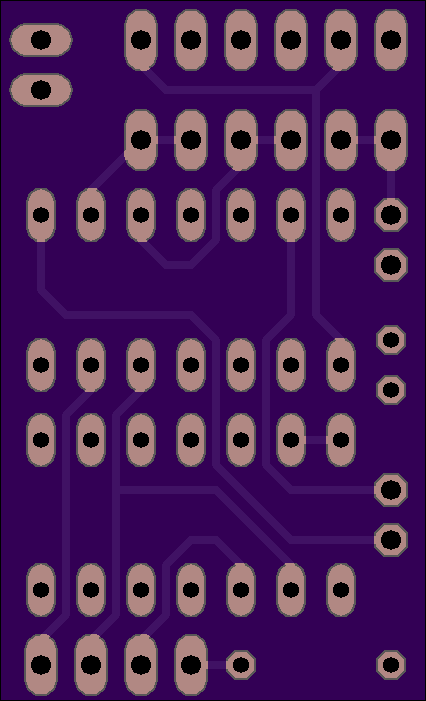

Controls Region and Video mod for Sega Megadrive/Genesis, Sega/Mega CD and 32X. The board is compatible for both rev. VA3/4 and VA5/6. Each region have a different color (red, green or blue). You need to plug the reset switch from the console (see http://www.dforce3000.de/?uid=12).
Components: PIC16F630, 74LS00, 0.1µF capacitor, 470ohms resistor, RGB LED common anode
