Shared projects

Holophonor Board

by VolpinProps.

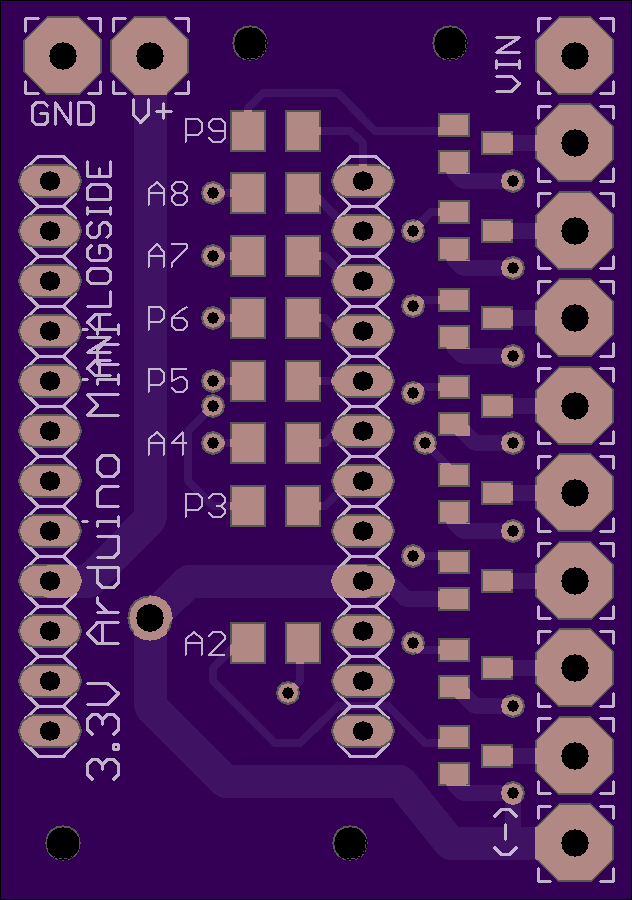

Top

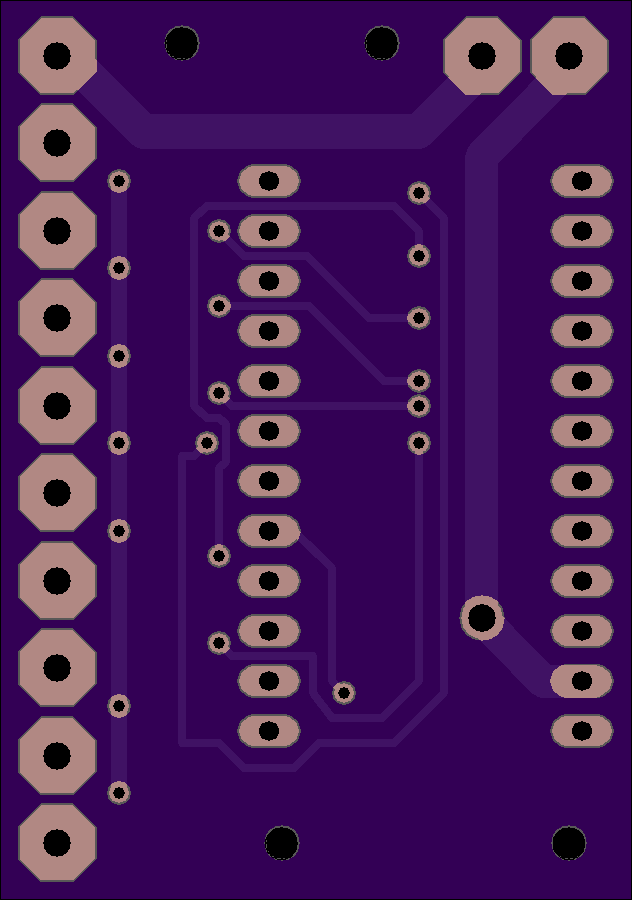

Bottom

2 layer board of 1.26x1.80 inches (32.08x45.72 mm).
Shared on December 16th, 2016 21:55.

3.3V Arduino mini 328 breakout board with 4 digital PWM and 4 analog output, ideal for LED control. All 8 channels have areas on the board for 2n2222 transistors for driving more than 1 LED as well as SMD resistors.

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

Thomas Left Corner

by VolpinProps.
Top
Bottom

2 layer board of 1.77x2.48 inches (45.01x63.02 mm).
Shared on September 12th, 2016 16:48.

LED holder for left side of subvisor assembly

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

Thomas Right corner

by VolpinProps.
Top
Bottom

2 layer board of 1.77x2.48 inches (45.01x63.02 mm).
Shared on September 12th, 2016 16:48.

LED holder board for right corner of subvisor

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

Thomas Ears

by VolpinProps.
Top
Bottom

2 layer board of 1.44x1.44 inches (36.53x36.53 mm).
Shared on September 12th, 2016 16:48.

Circular LED boards for Thomas helmet ear pucks

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

Thomas Matrix Outline

by VolpinProps.
Top
Bottom

2 layer board of 1.67x0.82 inches (42.49x20.88 mm).
Shared on September 12th, 2016 16:47.

better of 7221 chip

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project
