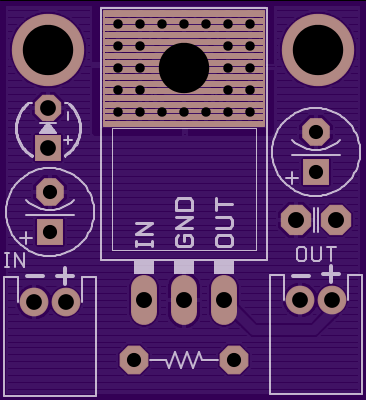

schizobovine - Postage Stamp Regulator Mk 3 - WarHawk's Tweak
by
WarHawk-AVG.
2
layer board of
0.92x1.00
inches
(23.27x25.43
mm).
Shared on
September 27th, 2014 21:45.
Added back polygon pour to double the size of the heatsink for the L78xx TO-220
BLF SK68 15mm 5*7135 Nanjg 105C V1.0
by
WarHawk-AVG.
2
layer board of
0.60x0.60
inches
(15.11x15.11
mm).
Shared on
July 18th, 2014 08:54.
15mm Nanjg 105C compatible LED/flashlight driver for Sipik SK68
- Diode D1 is a SOD-323
- C1 is 10 uF.
- Resistors are 19.1K (R1) and 4.7K (R2), 1%
- Regulator chips are AMC7135
- Processor is ATTINY13
BLF discussion thread: http://budgetlightforum.com/node/31315

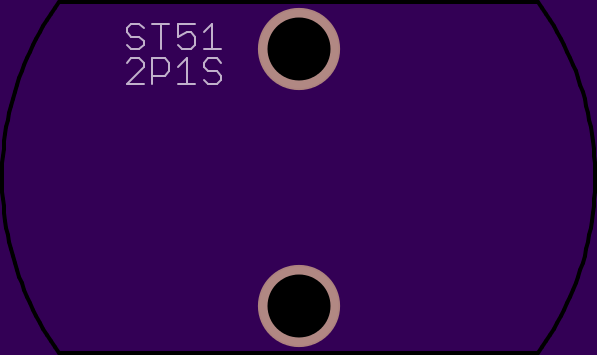

ST51 2P1S Battery Adapter Bottom Plate
by
WarHawk-AVG.
2
layer board of
1.49x0.89
inches
(37.92x22.56
mm).
Shared on
July 2nd, 2014 12:56.

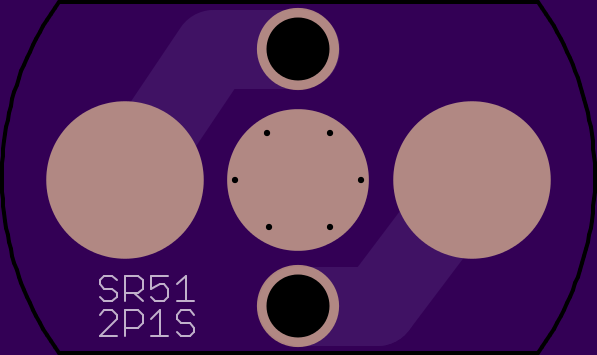

ST51 2P1S Battery Adapter Bottom Plate

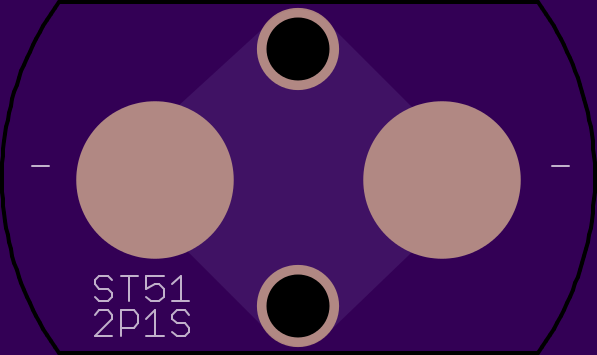

ST51 2P1S Battery Adapter Top Plate
by
WarHawk-AVG.
2
layer board of
1.49x0.89
inches
(37.92x22.56
mm).
Shared on
July 2nd, 2014 12:56.

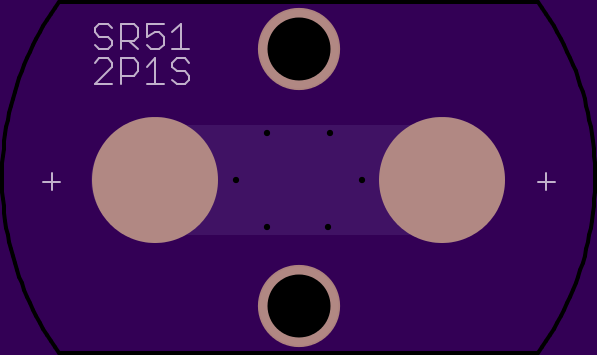

ST51 2P1S Battery Adapter Top Plate

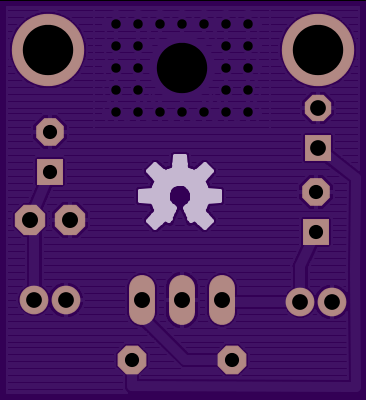

amc7135_test_board_Hybrid_w_XP-E_PWM
by
WarHawk-AVG.
2
layer board of
0.49x0.73
inches
(12.42x18.44
mm).
Shared on
June 22nd, 2014 08:20.
amc7135_test_board_Hybrid_w_XP-E_PWM
