Shared projects

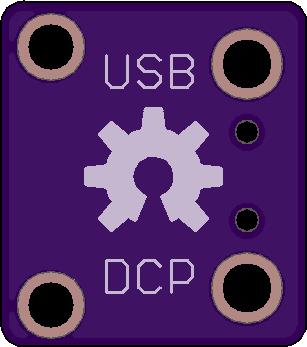

USB DCP/USB Wrapper Adapter [final]
by
Warhawk.
2
layer board of
0.62x0.69
inches
(15.62x17.63
mm).
Shared on
October 25th, 2014 15:50.
USB DCP/USB Wrapper Adapter
Componentless Dedicated Charge Port adapter and USB Wrapper that prevents Juice-Jacking as the data connection no longer reaches the charging port data pins.
Simple design, only two USB components and it’s ready to go, data pins on the output side are shorted together guaranteeing at least 1A charge rate to the device plugged in
BOM:
2 layer board of 0.62x0.69 inches (16x18mm). $2.10 for three.

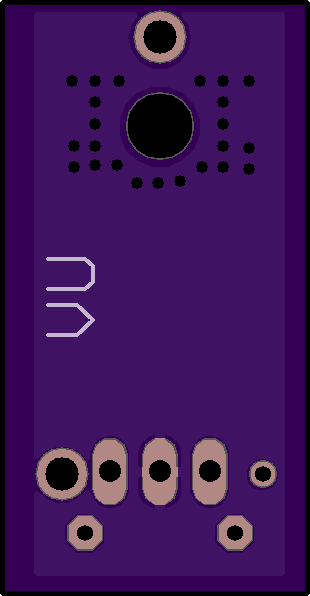

VAPING UNDERGROUND MOSFET box mod board V1.0
by
Warhawk.
2
layer board of
0.62x1.19
inches
(15.77x30.28
mm).
Shared on
October 19th, 2014 04:27.
VAPING UNDERGROUND MOSFET box mod board V1.0

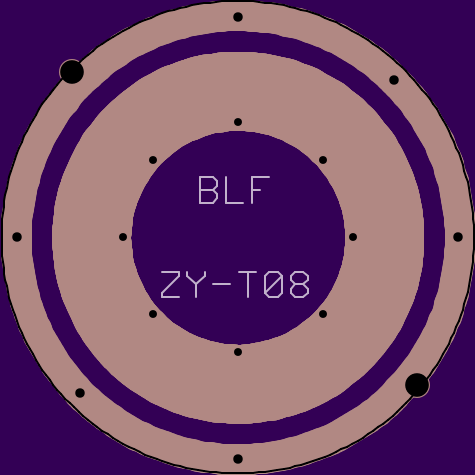

BLF ZY-T08 30mm Contact Plate
by
Warhawk.
2
layer board of
1.19x1.19
inches
(30.12x30.12
mm).
Shared on
August 12th, 2014 13:20.
BLF ZY-T08 30mm Contact Plate

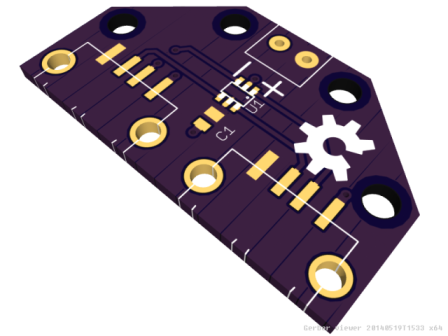

USB 2 Port Hub DCP Enumerator / Charge Adapter V2
by
Warhawk.
2
layer board of
0.87x1.50
inches
(22.10x38.10
mm).
Shared on
August 6th, 2014 20:09.
USB 2 Port Hub DCP Enumerator / Charge Adapter V2
Discussion Here : http://budgetlightforum.com/node/33038
TexasPyro 20mm Nanjg - WarHawks' Tweak final
by
Warhawk.
2
layer board of
0.79x0.79
inches
(20.12x20.12
mm).
Shared on
July 28th, 2014 13:32.
TexasPyro 20mm Nanjg
Discussion thread here:http://budgetlightforum.com/node/28251
Corrected for SOD-323 diode
