Shared projects

ADAFRUIT USB LiIon/LiPoly charger - v1.2

by Warhawk.
Top
Bottom

2 layer board of 1.38x1.38 inches (35.00x35.00 mm).
Shared on February 16th, 2014 00:41.

https://github.com/adafruit/MCP73833

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

Adafruit-MicroLipo-PCB

by Warhawk.
Top
Bottom

2 layer board of 1.20x0.48 inches (30.38x12.09 mm).
Shared on February 16th, 2014 00:35.

https://github.com/adafruit/Adafruit-MicroLipo-PCB

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

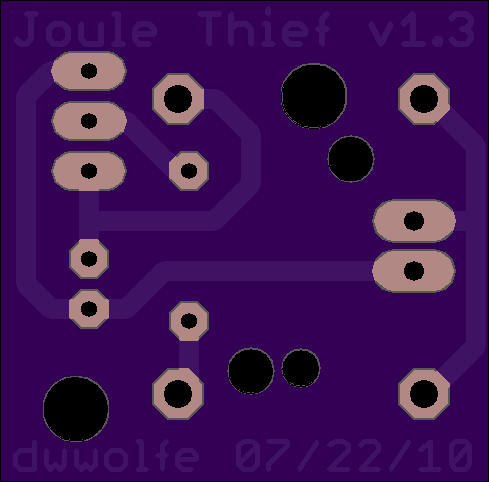

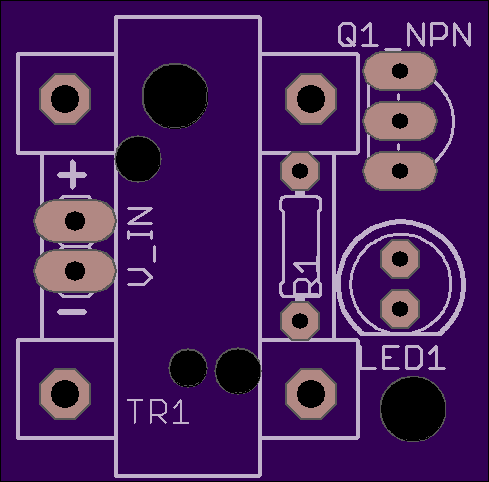

Joule Thief revision 3

by Warhawk.
Top
Bottom

2 layer board of 0.98x0.96 inches (24.77x24.43 mm).
Shared on February 15th, 2014 12:16.

http://www.circuitstew.com/pcbs/joule_thief.html

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

njsharkracer.12vdc lead acid battery desulfator

by Warhawk.
Top
Bottom

2 layer board of 1.31x1.80 inches (33.17x45.62 mm).
Shared on January 11th, 2014 11:56.

12vdc Desulfator

njsharkracer.12vdc lead acid battery desulfator

https://github.com/njsharkracer/12voltdesulfator

http://www.youtube.com/playlist?list=PL82DFDAD35E4BFC59

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project
