Shared projects

Extension pour sonde d'ambiance V2.1

by ZIONIII.
Top
Bottom

2 layer board of 0.86x0.71 inches (21.74x17.91 mm).
Shared on May 29th, 2017 18:22.

https://easydomoticz.com/forum/viewtopic.php?f=7&t=1956#p17270

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

Sonde d'ambiance B V2.1

by ZIONIII.
Top
Bottom

2 layer board of 0.87x0.84 inches (21.97x21.23 mm).
Shared on May 29th, 2017 18:16.

https://easydomoticz.com/forum/viewtopic.php?f=7&t=1956#p17270

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

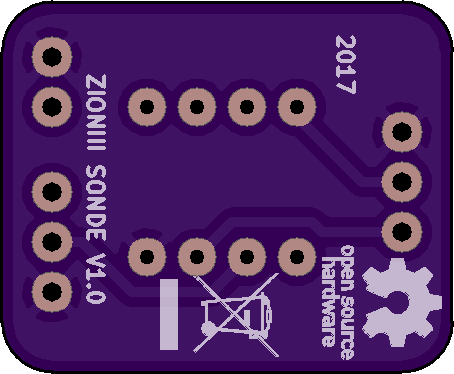

Sonde d'ambiance V1.0 - 1 Circuit (Ok)

by ZIONIII.
Top
Bottom

2 layer board of 0.91x0.75 inches (22.99x18.92 mm).
Shared on April 10th, 2017 18:15.

Sonde d'ambiance pour Domoticz. Forum: https://easydomoticz.com/forum/viewtopic.php?f=7&t=1956. Le sketch : https://github.com/vil1driver/ATtiny85/ … master.zip Matériel: - CMS 1206 Résistance 4,7 K ohms - CMS 1206 Condensateur 10uF - Microcontrôleur Attiny85-P - Socket pour Attiny85 - Émetteur RF 433 Mhz - Sonde DS18B20

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

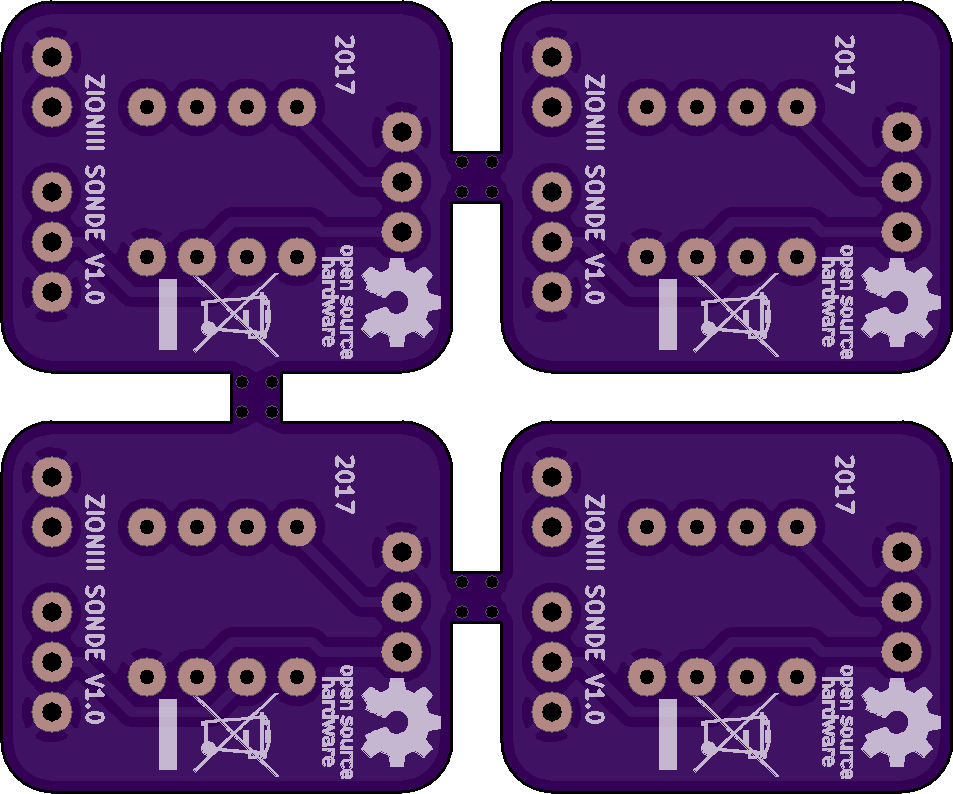

Sonde d'ambiance V1.0 4 circuits (ok)

by ZIONIII.
Top
Bottom

2 layer board of 1.91x1.59 inches (48.39x40.26 mm).
Shared on March 19th, 2017 08:59.

Sonde d'ambiance pour Domoticz.

Forum: https://easydomoticz.com/forum/viewtopic.php?f=7&t=1956.

Le sketch : https://github.com/vil1driver/ATtiny85/ … master.zip

Matériel: - CMS 1206 Résistance 4,7 K ohms - CMS 1206 Condensateur 10uF - Microcontrôleur Attiny85-P - Socket pour Attiny85 - Émetteur RF 433 Mhz - Sonde DS18B20
