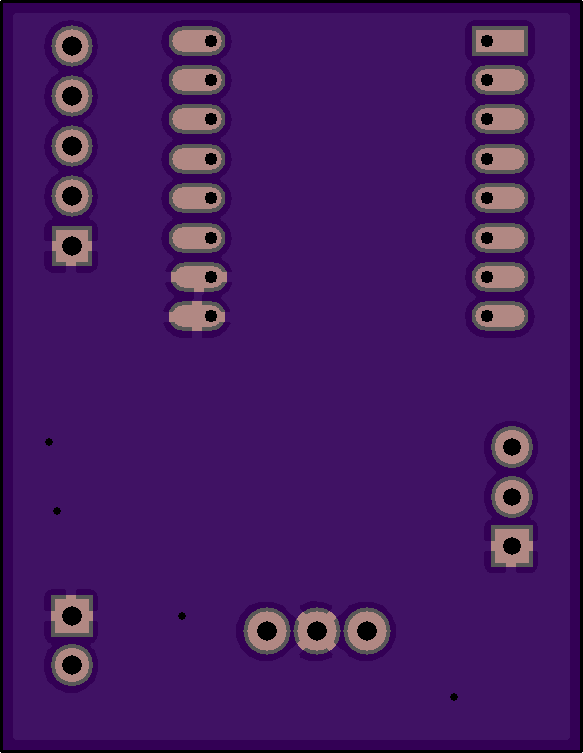

ESP8266 WiFi Capacitive Soil Moisture Sensor and probe
by
alanlord.
2
layer board of
6.50x1.16
inches
(165.00x29.36
mm).
Shared on
March 22nd, 2017 12:36.

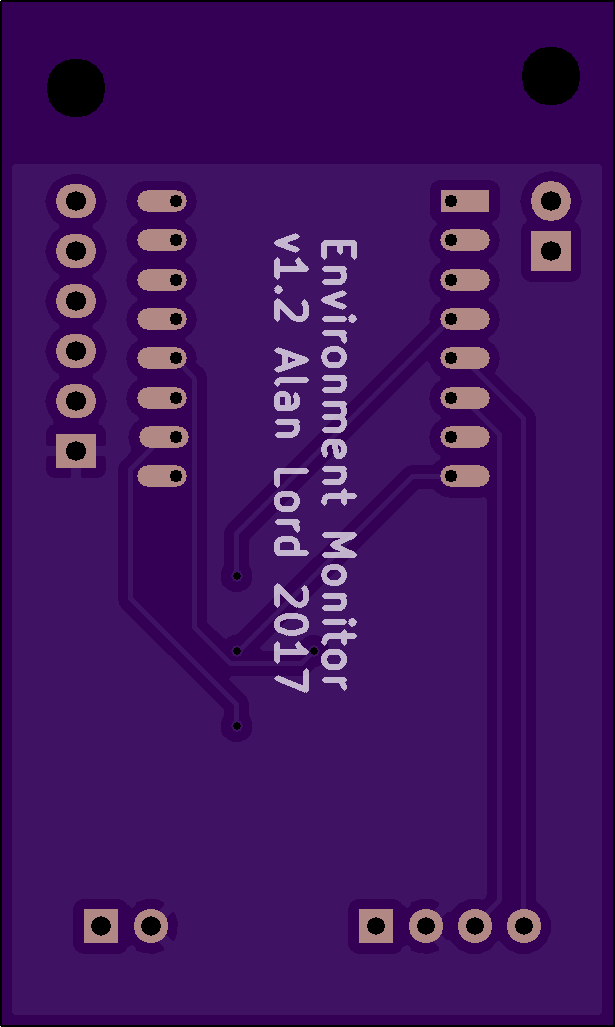

ESP8266 Environment Monitor V1.2
by
alanlord.
2
layer board of
1.23x2.05
inches
(31.22x52.17
mm).
Shared on
February 24th, 2017 09:02.

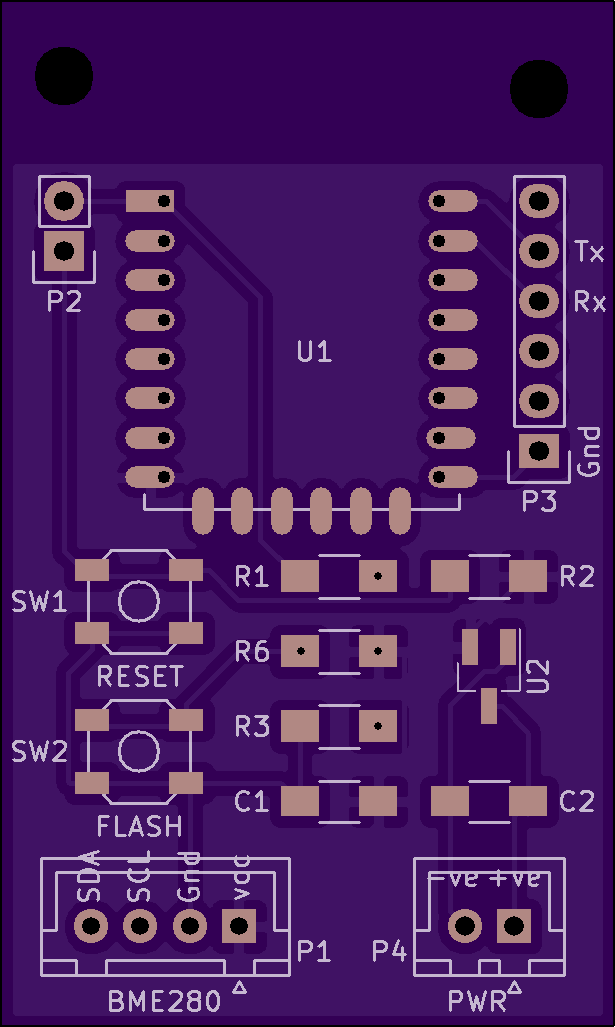

For an ESP8266, with programming connectors and switches and supporting Deep Sleep mode. Designed to connect to a BME280 Temp/Humidity/Barometer by wire using I2C.
BOM
- C1 1uF 1206 SMD
- C2 10uF 1206 SMD
- P1 JST XH B04B 4 Pin Straight
- P2 2 Pin Header Straight
- P3 6 Pin Header Straight
- P4 JST XH B02B 2 Pin Straight
- R1 0R 1206 SMD 1%
- R2 4.7K 1206 SMD 1%
- R3 4.7K 1206 SMD 1%
- R6 4.7K 1206 SMD 1%
- SW1 ALPS SKQGAFE010 SMD Tactile NO
- SW2 ALPS SKQGAFE010 SMD Tactile NO
- U1 ESP-12F
- U2 MCP1700T-3302E/TT SOT-23
The board design has been updated since this version:
- I missed off a pull up resistor on CH_PD (but can easily be tacked on the back of the board if you use this version)
- redesigned the layout so my fingers could get at the switches ;-)
- Added a switch to bypass the regulator so the circuit could be used either with 3.2v LifePO4, or 3.7v Li-ion batteries
All updates on my github repo here: https://github.com/theopensourcerer/esp8266_envmonitor
ESP8266 DS18B20 Sensor v1.0
by
alanlord.
2
layer board of
1.17x1.51
inches
(29.62x38.25
mm).
Shared on
February 24th, 2017 08:59.
(UNTESTED)
ESP8266-12 based temperature sensor. Using a waterproof DS18B20 1-wire sensor. Board powered from 12v DC using a switching regulator (Murata OKI 78SR)
- All resistors are 1206 SMD 4.7k
- All capacitors are 1206 10uF ceramic
- Main connectors are JST XH style.
- Tactile Switches are ALPS SKQGAFE010 SMD Tactile NO
- Switching Regulator is OKI-78SR-3.3/1.5-W36-C
Project details all on Github: https://github.com/theopensourcerer/esp8266-external-temp-sensor
