Shared projects

GPIOLabel-NPTH.zip

by baldwisdom.

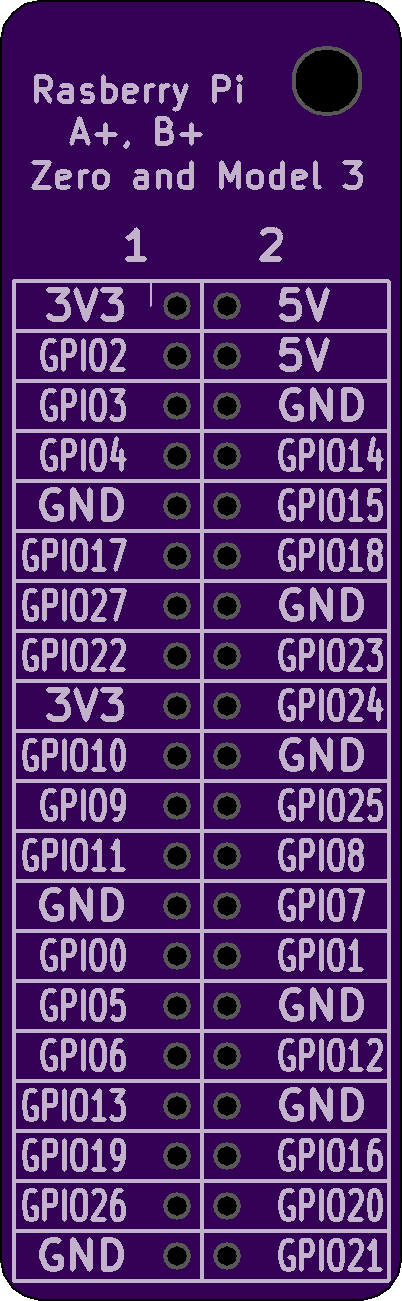

Top

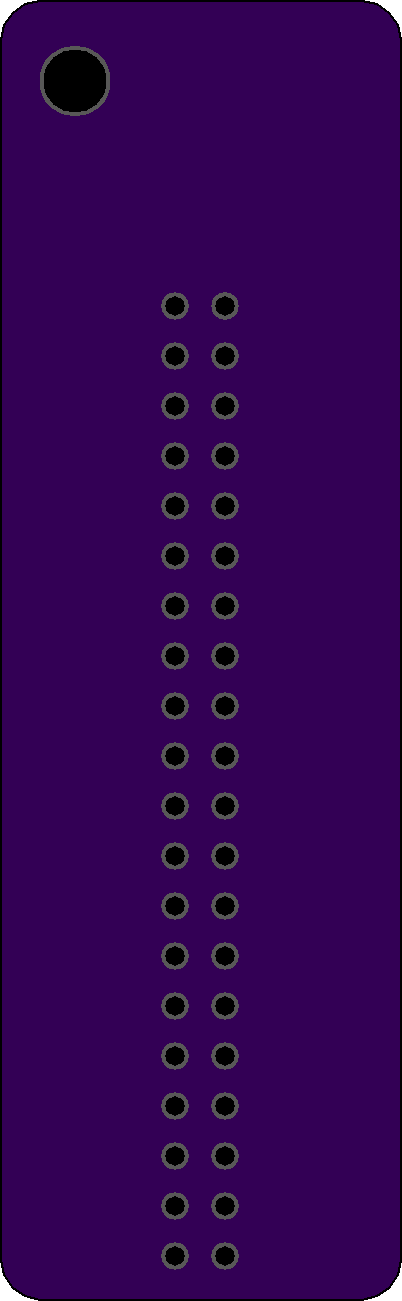

Bottom

2 layer board of 0.81x2.64 inches (20.45x67.11 mm).
Shared on April 20th, 2017 02:45.

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

GPIOLabel_Gerbers.zip

by baldwisdom.
Top
Bottom

2 layer board of 0.80x2.60 inches (20.42x66.07 mm).
Shared on April 6th, 2017 20:39.

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

Accessory_Breakout_X1.zip

by baldwisdom.

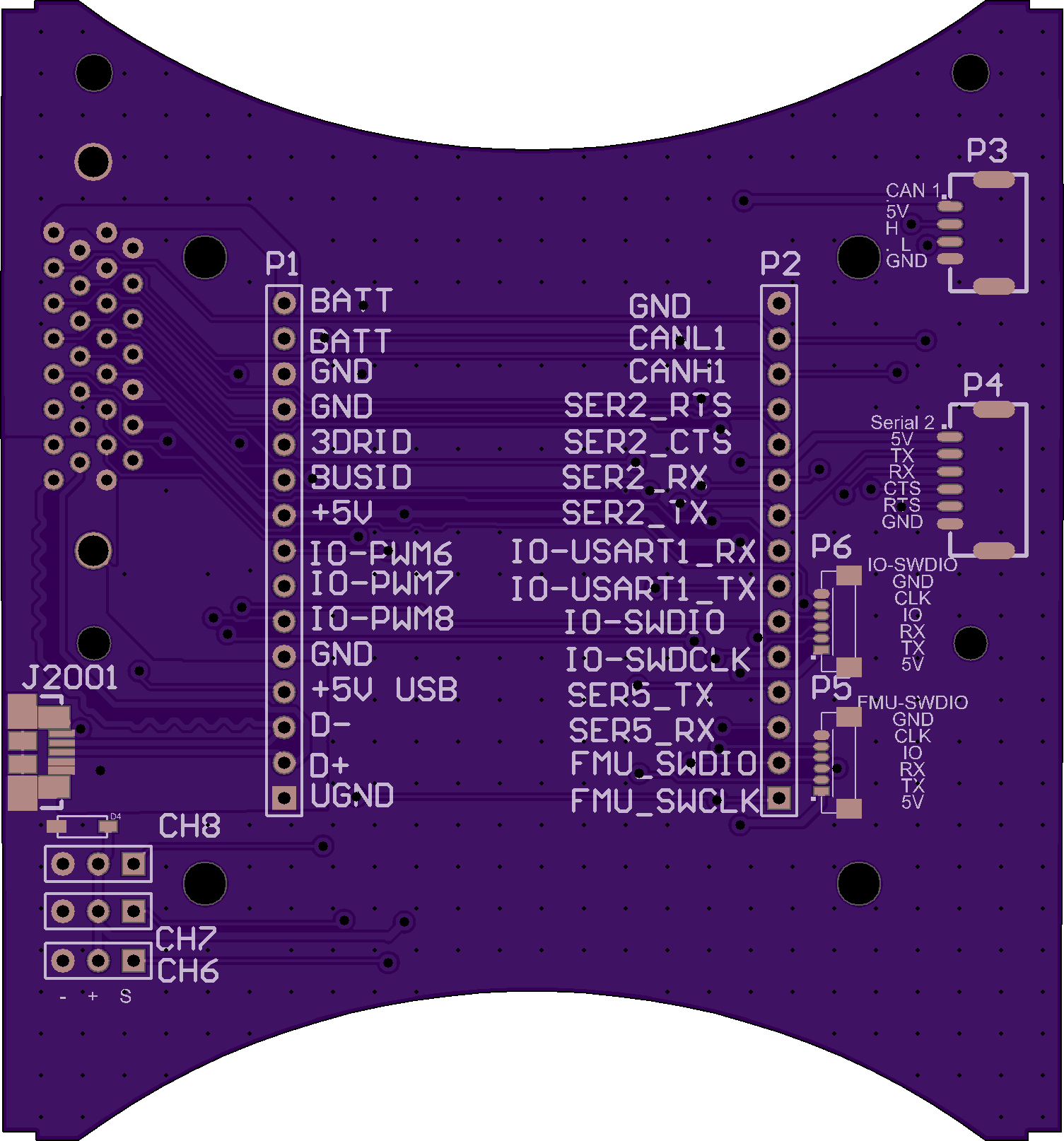

Top

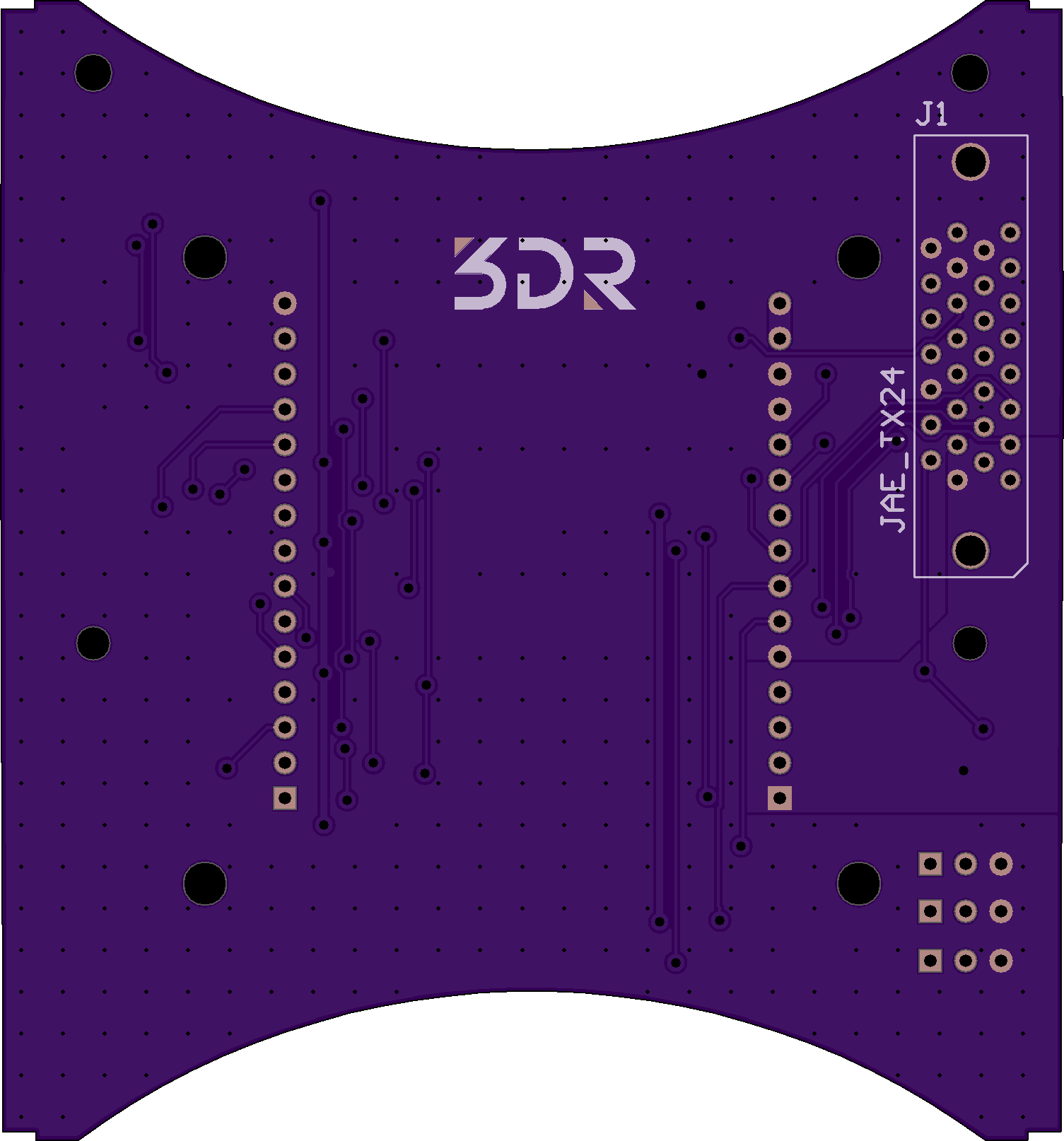

Bottom

2 layer board of 3.01x3.23 inches (76.50x81.99 mm).
Shared on November 3rd, 2016 20:03.

Note, the drill file has been fixed for this one.

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

Robo-trinket

by baldwisdom.

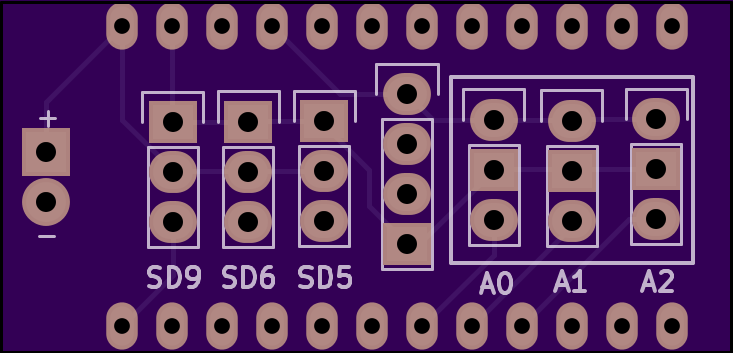

Top

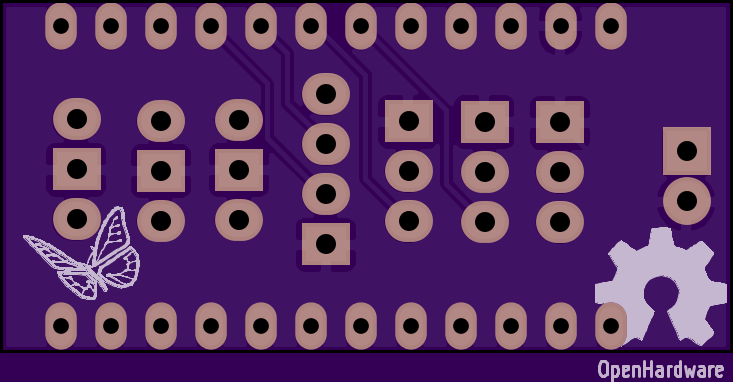

Bottom

2 layer board of 1.47x0.71 inches (37.24x17.93 mm).
Shared on April 21st, 2016 03:13.

Adafruit Trinket pro shield for servo based robots.

There are:

  • 3 headers for servos (2 continuous rotation for movement, and one additional)
  • 1 header for HC-SR04 ultrasonic distance sensor
  • 3 PGS (power ground signal) headers for analog or digital sensors (A0-A2)
  • connector for battery pack (4 AA recommended)

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project
