OSH Park
Profile for bloguetronica
Shared projects
Si7021
by
bloguetronica.
2
layer board of
0.60x0.60
inches
(15.27x15.27
mm).
Shared on
May 14th, 2015 19:26.
Si7021 module

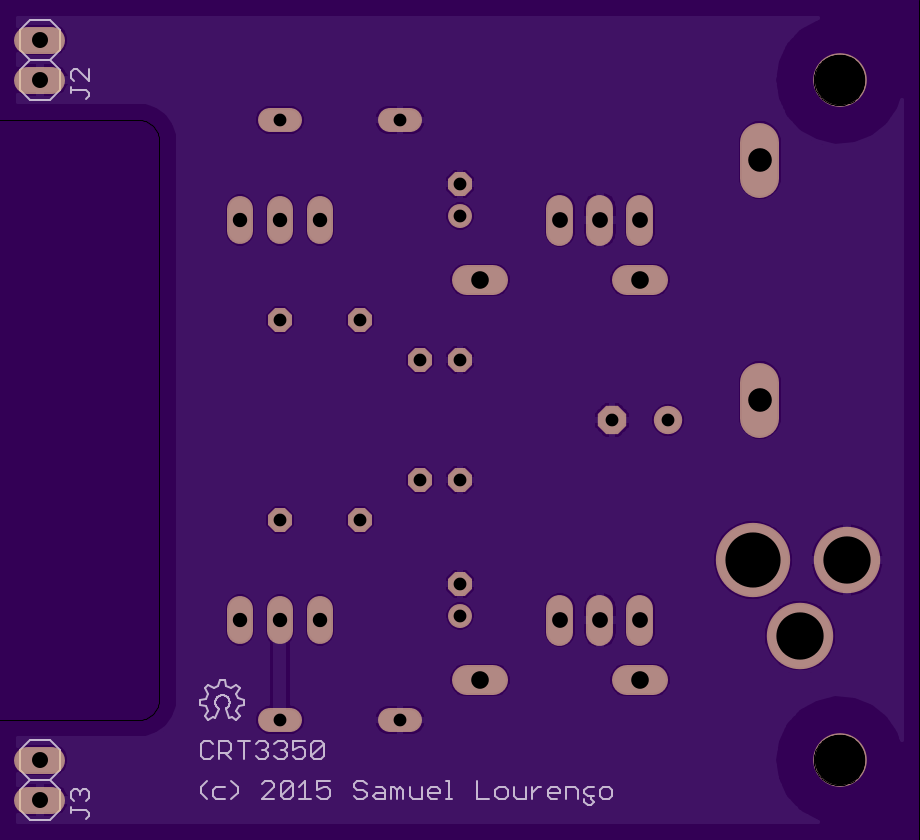

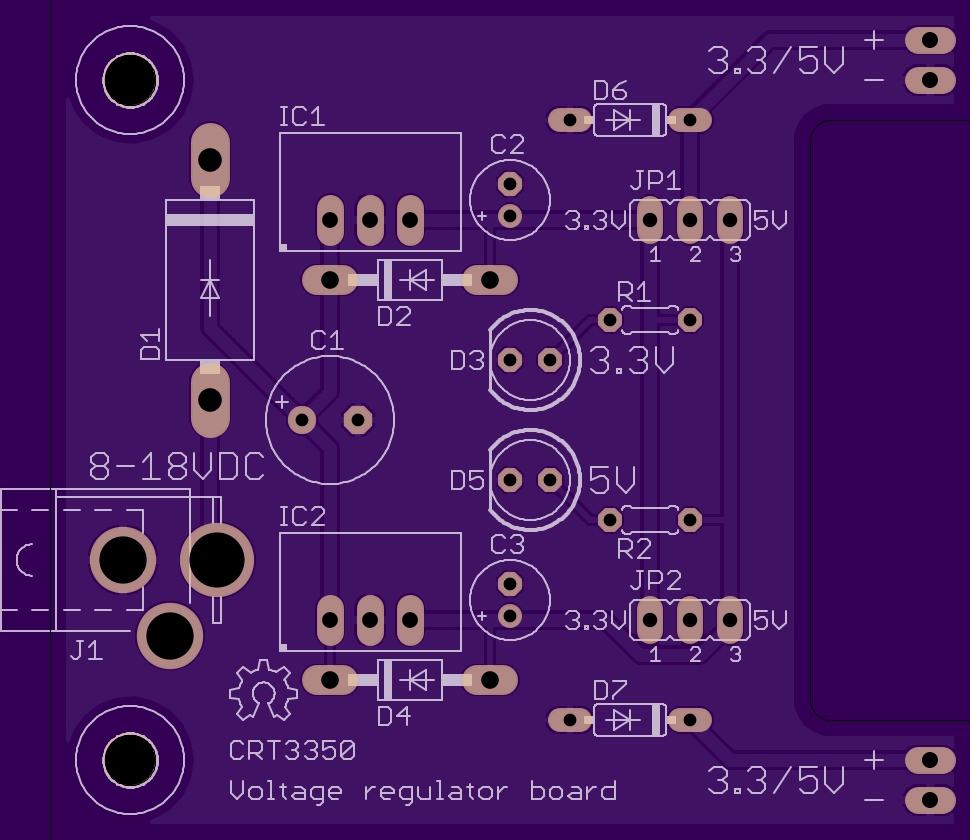

CRT3350
by
bloguetronica.
2
layer board of
2.30x2.10
inches
(58.45x53.37
mm).
Shared on
January 11th, 2015 13:06.
Voltage regulator board. This board can supply 3.3V and 5V simultaneously to a circuit mounted on a breadboard. The rails are fully configurable.

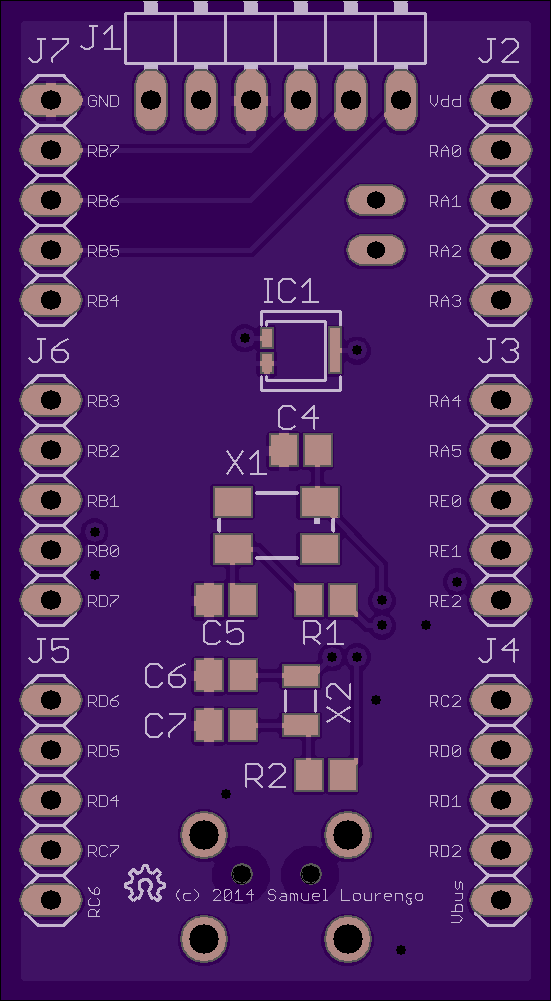

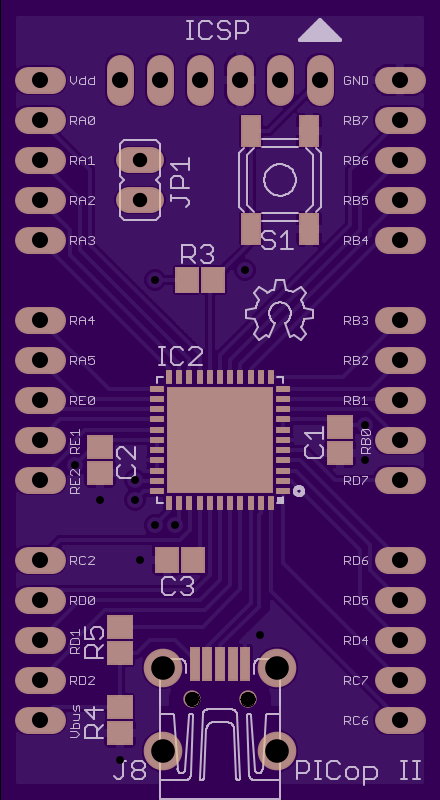

PICop II
by
bloguetronica.
4
layer board of
1.10x2.00
inches
(27.94x50.80
mm).
Shared on
November 3rd, 2014 20:27.
PIC18F4550 development board
Project page (in Portuguese): http://www.bloguetronica.com/2014/12/placa-de-desenvolvimento-picop-ii.html

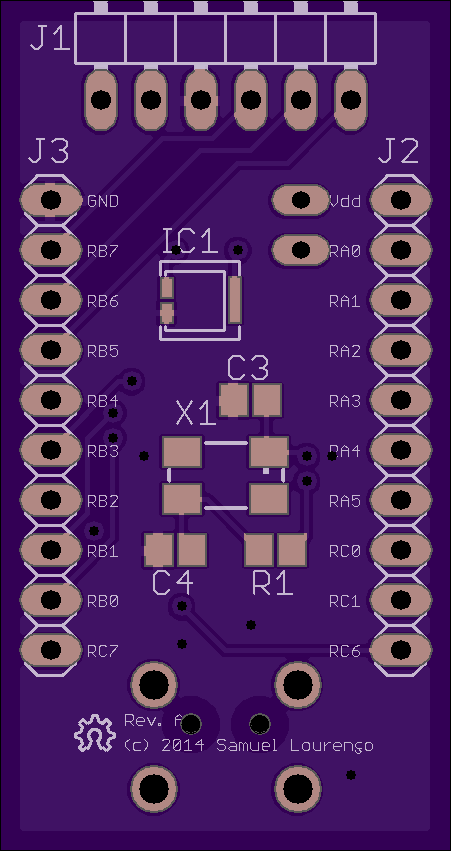

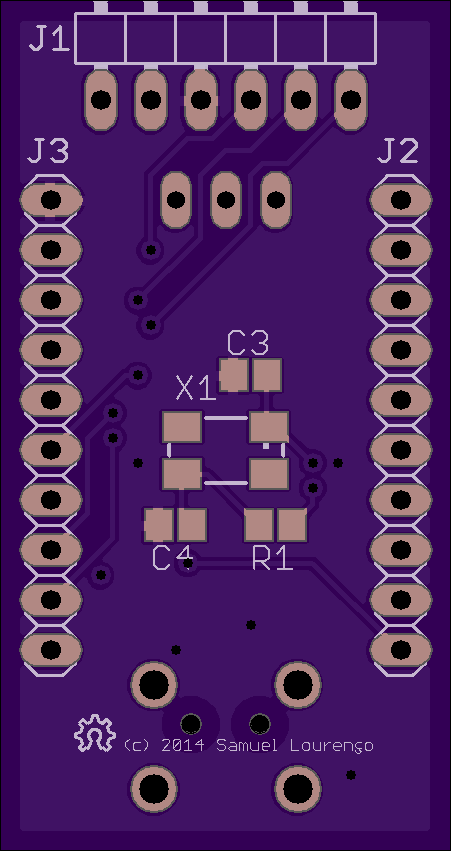

PICop (Rev. A)
by
bloguetronica.
4
layer board of
0.90x1.70
inches
(22.89x43.18
mm).
Shared on
November 2nd, 2014 20:13.
PIC18F2450 development board
Project page (in Portuguese): http://www.bloguetronica.com/2014/11/placa-de-desenvolvimento-picop-rev-a.html

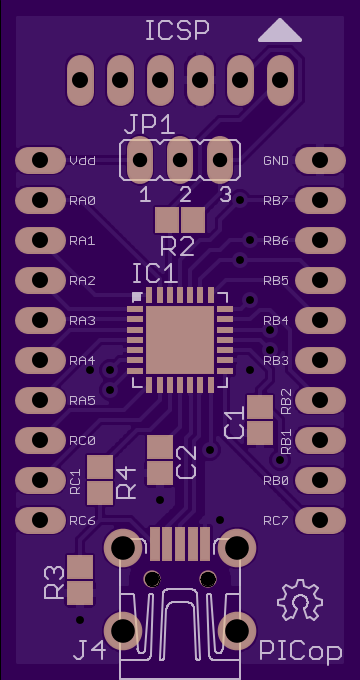

PICop
by
bloguetronica.
4
layer board of
0.90x1.70
inches
(22.89x43.18
mm).
Shared on
July 4th, 2014 09:03.
PIC18F2450 development board
Project page (in Portuguese): http://www.bloguetronica.com/2014/07/placa-de-desenvolvimento-picop.html
