Shared projects

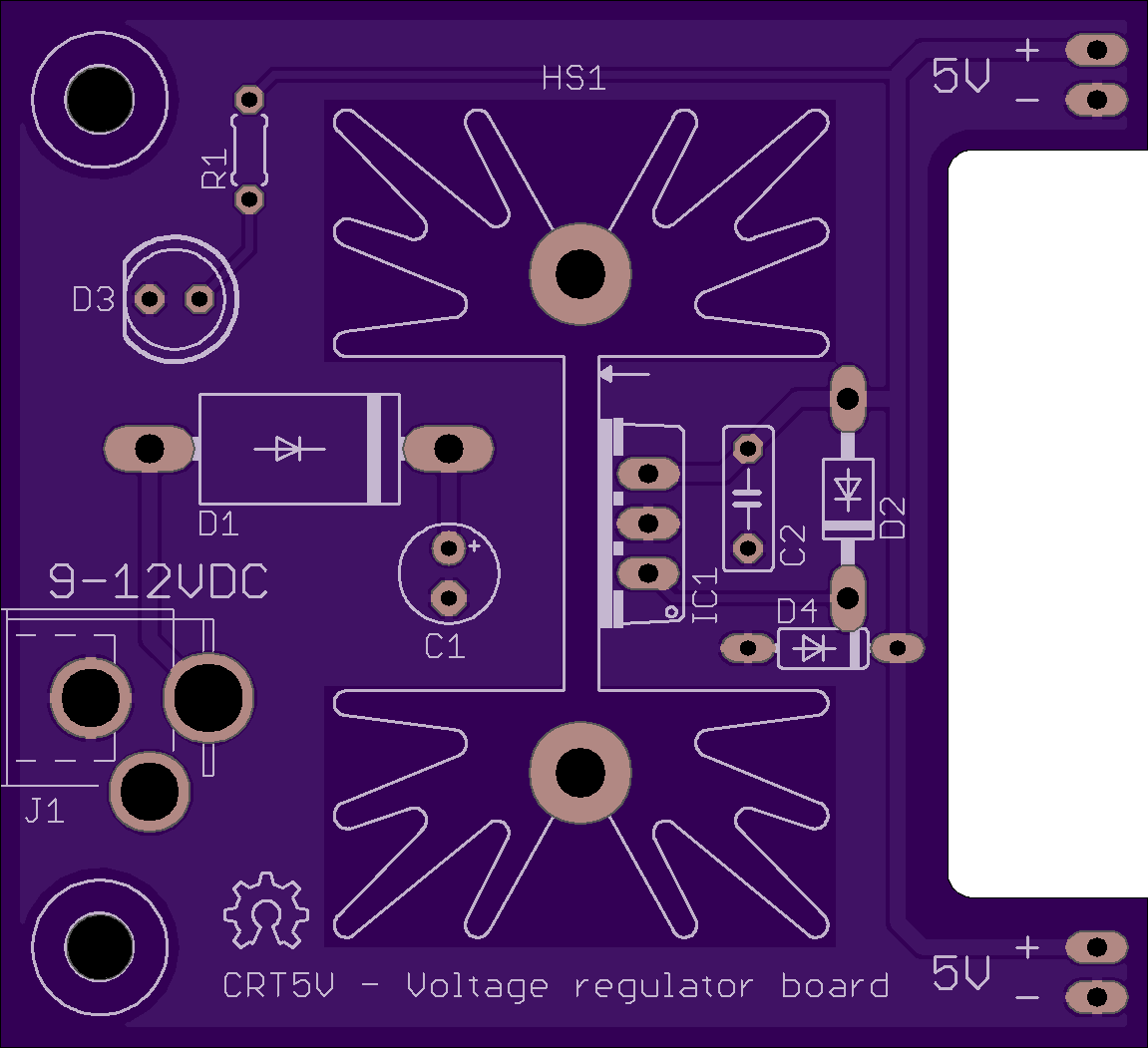

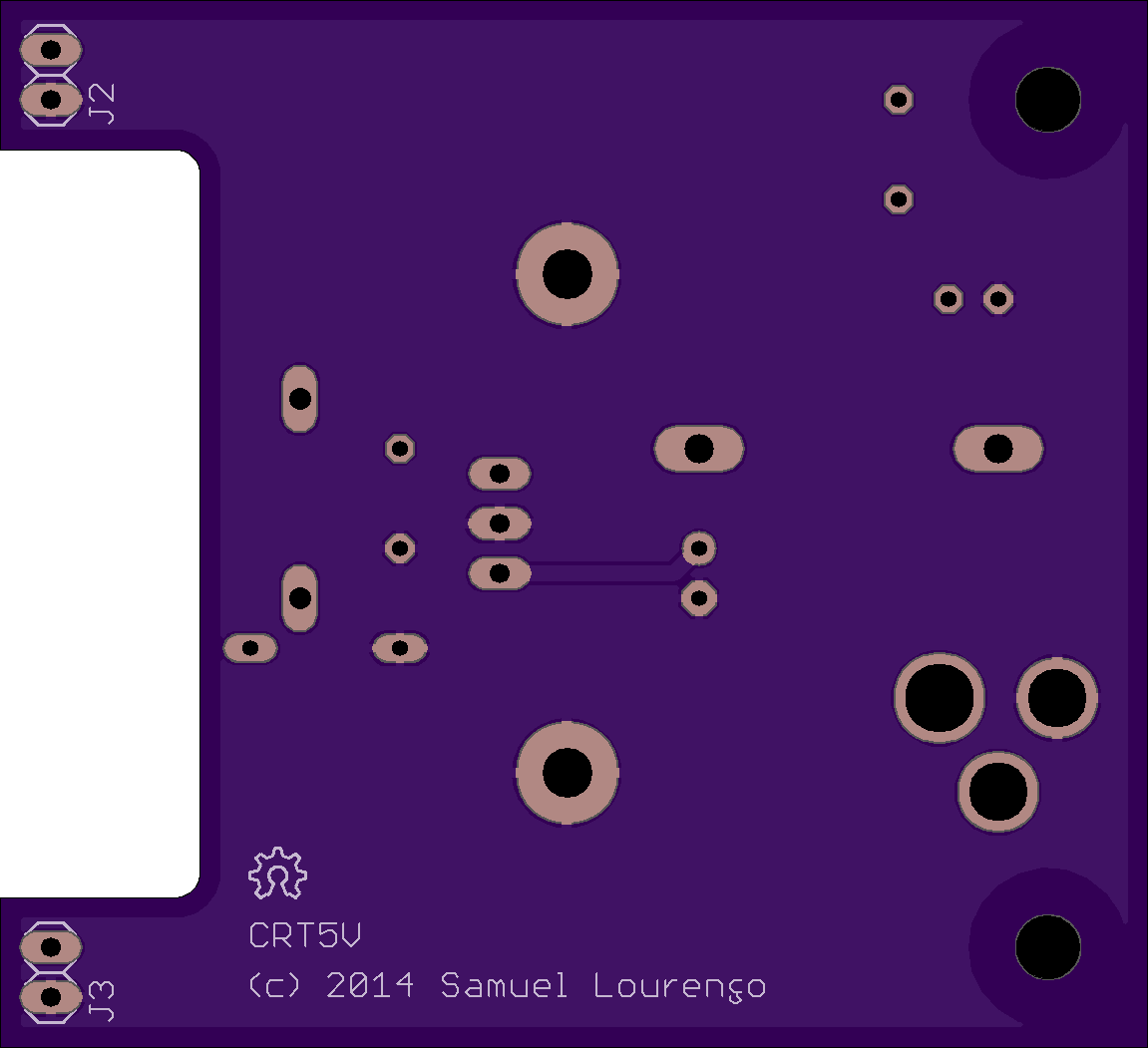

CRT5V
by
bloguetronica.
2
layer board of
2.30x2.10
inches
(58.45x53.37
mm).
Shared on
June 15th, 2014 14:43.
Voltage regulator board. This board uses a 7805 regulator in order to supply 5V and up to 1A to any circuit mounted on a breadboard.
Components list:
C1 – 10µF 25V electrolytic capacitor;
C2 – 100nF 63V polyester capacitor;
D1 – 1N5400 rectifier diode;
D2 – 1N4001 rectifier diode;
D3 – Red LED;
D4 – 1N4150 fast switching diode;
HS1 – 4,8°C/W passive heatsink;
IC1 – 7805 voltage regulator (LM7805/µA7805);
J1 – 5,5mm x 2,1mm DC jack;
J2/3 – 2 pins male header connector;
R1 – 180Ω±5% 1/8W carbon resistor.
Project page (in Portuguese): http://www.bloguetronica.com/2014/07/circuito-regulador-de-tensao-crt5v.html

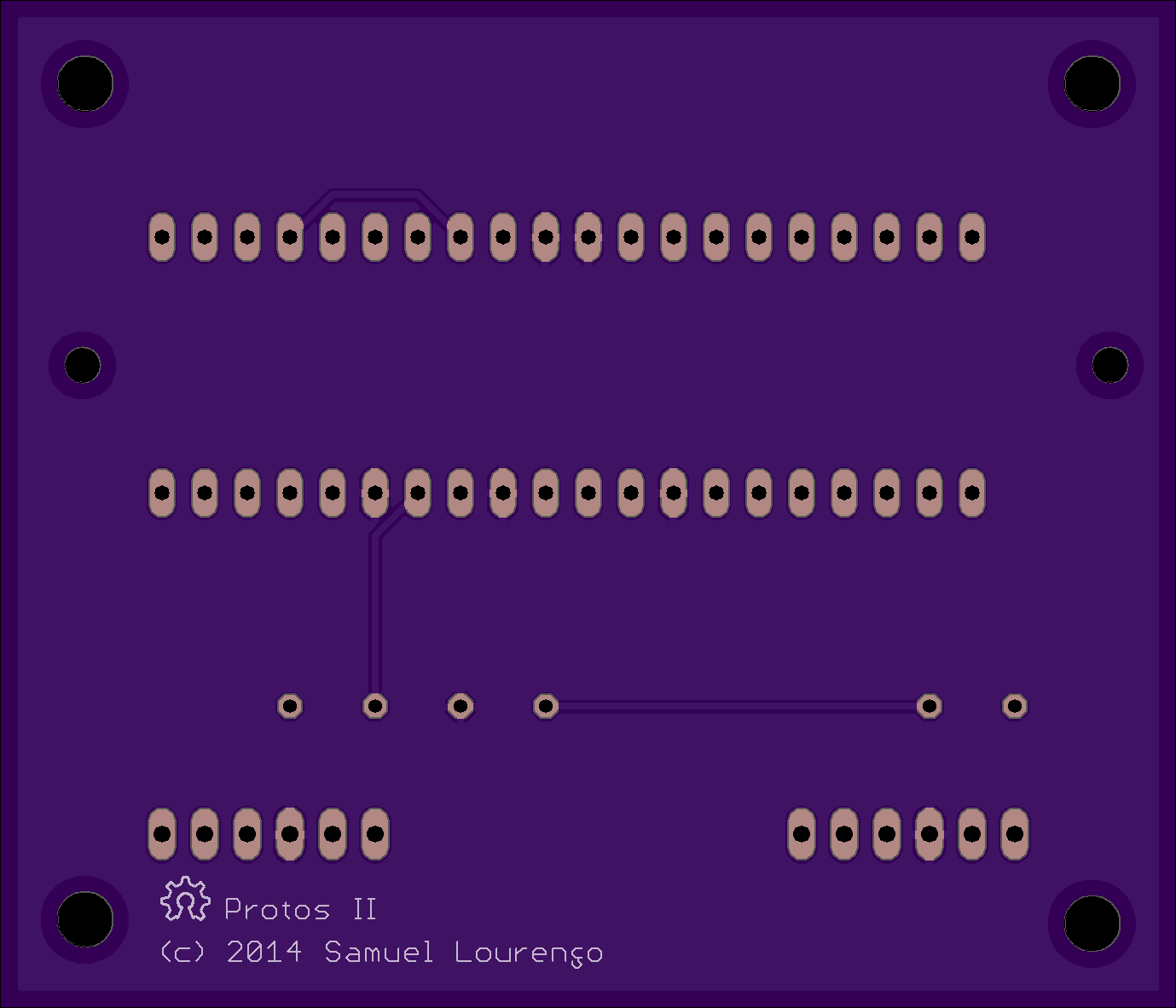

Protos II
by
bloguetronica.
2
layer board of
2.76x2.36
inches
(70.00x60.02
mm).
Shared on
May 13th, 2014 12:38.

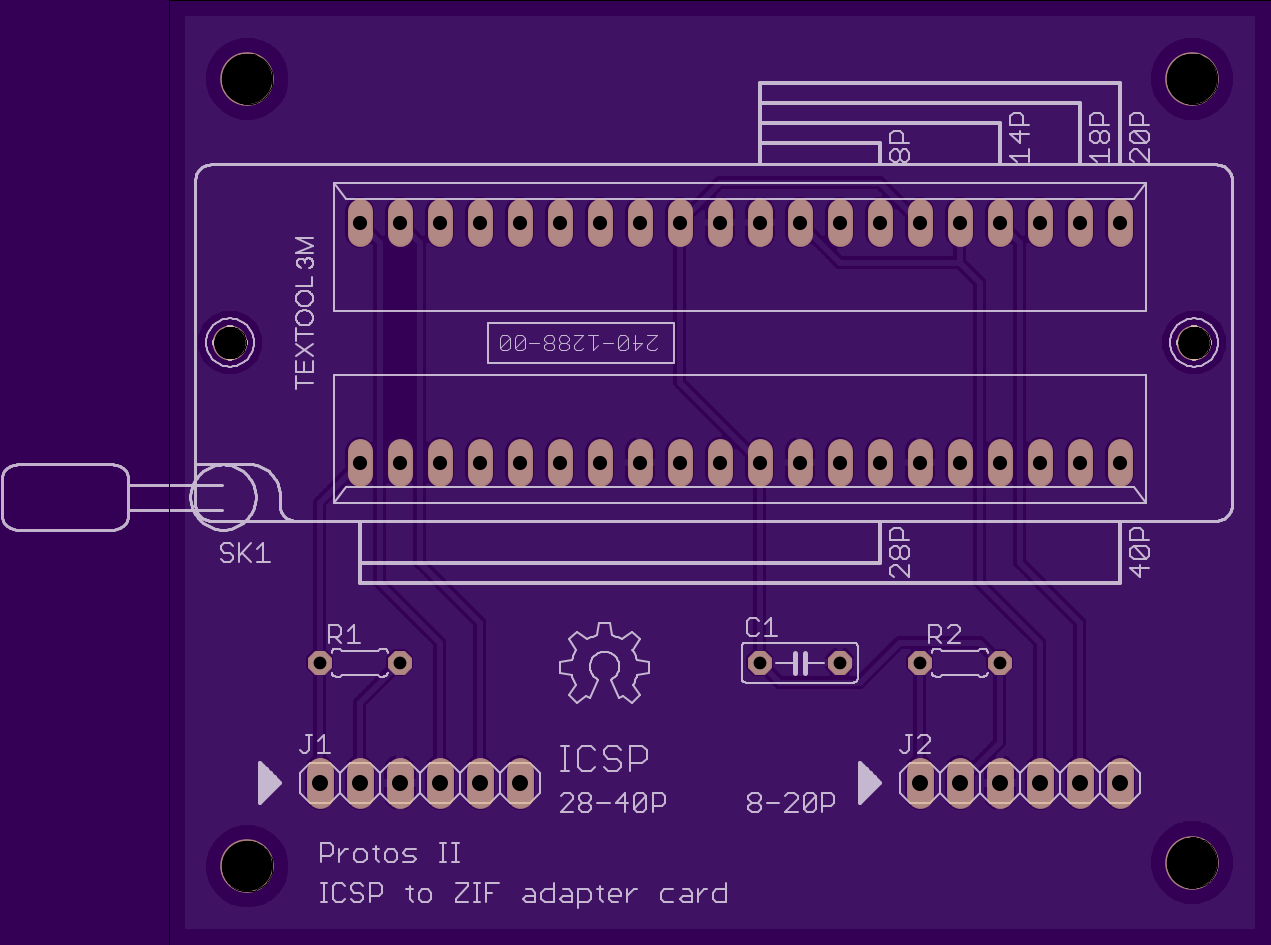

ICSP to ZIF adapter card

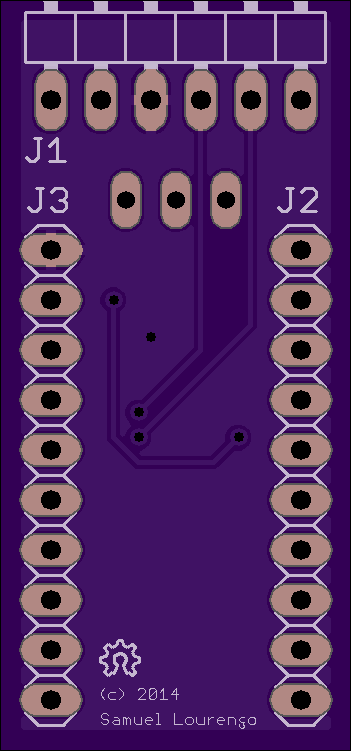

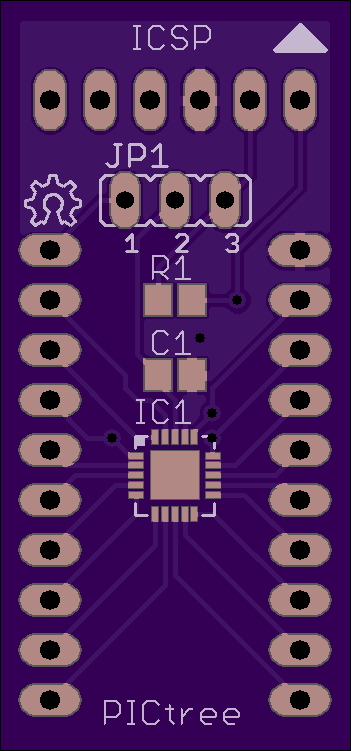

PICtree
by
bloguetronica.
2
layer board of
0.70x1.50
inches
(17.78x38.13
mm).
Shared on
April 25th, 2014 09:26.
PIC16F690 development board

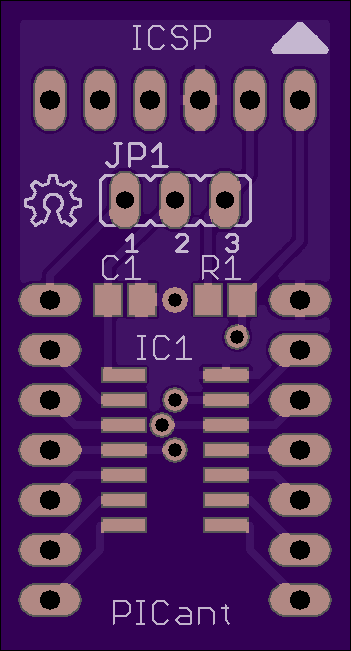

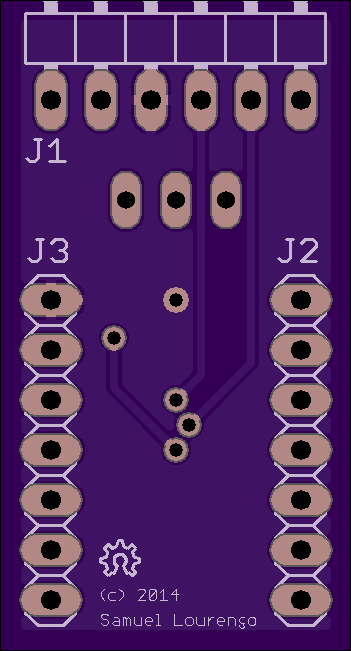

PICant
by
bloguetronica.
2
layer board of
0.70x1.30
inches
(17.78x33.02
mm).
Shared on
April 8th, 2014 20:05.
PIC16F688 development board

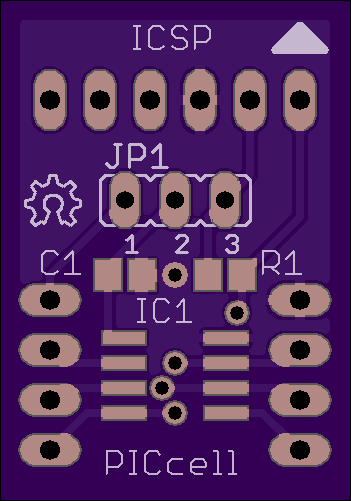

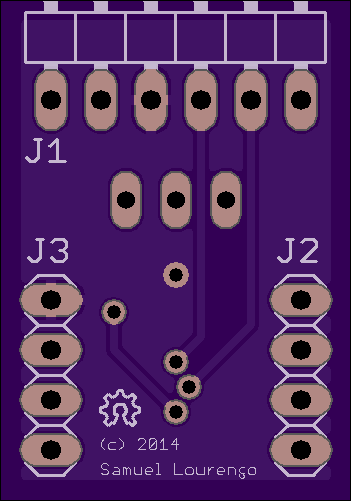

PICcell
by
bloguetronica.
2
layer board of
0.70x1.00
inches
(17.78x25.43
mm).
Shared on
April 6th, 2014 10:34.
PIC12F683 development board
