Keyboard PC

by bombTECH-Research-and-Development.
Top
Bottom

2 layer board of 4.05x0.90 inches (102.90x22.89 mm).
Shared on October 10th, 2013 20:23.

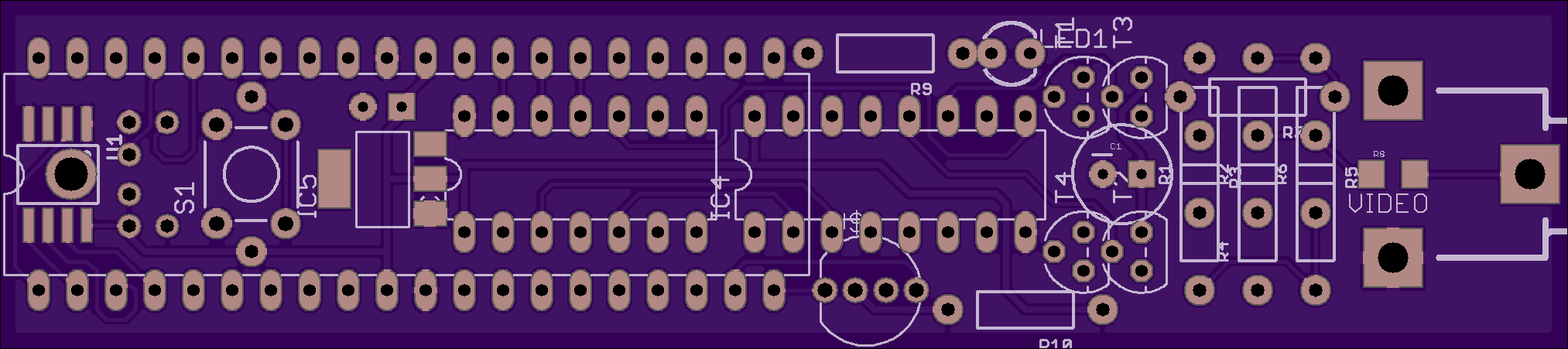

Keyboard PC - ATMEGA323+PIC16F mini computer

Composite Video Output MINI DIN 6 Keyboard Connector 64Mbit Flash Memory

PIC16F handles video (along with a 16x4 FIFO buffer). ATMEGA323 handles keyboard, flash, and general processing. NO POWER JACK! You have to wire a 7V 1600mA (minimum) power source to both regulator input pins.

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

External Sound Card

by bombTECH-Research-and-Development.
Top
Bottom

2 layer board of 3.00x3.95 inches (76.20x100.33 mm).
Shared on October 3rd, 2013 06:28.

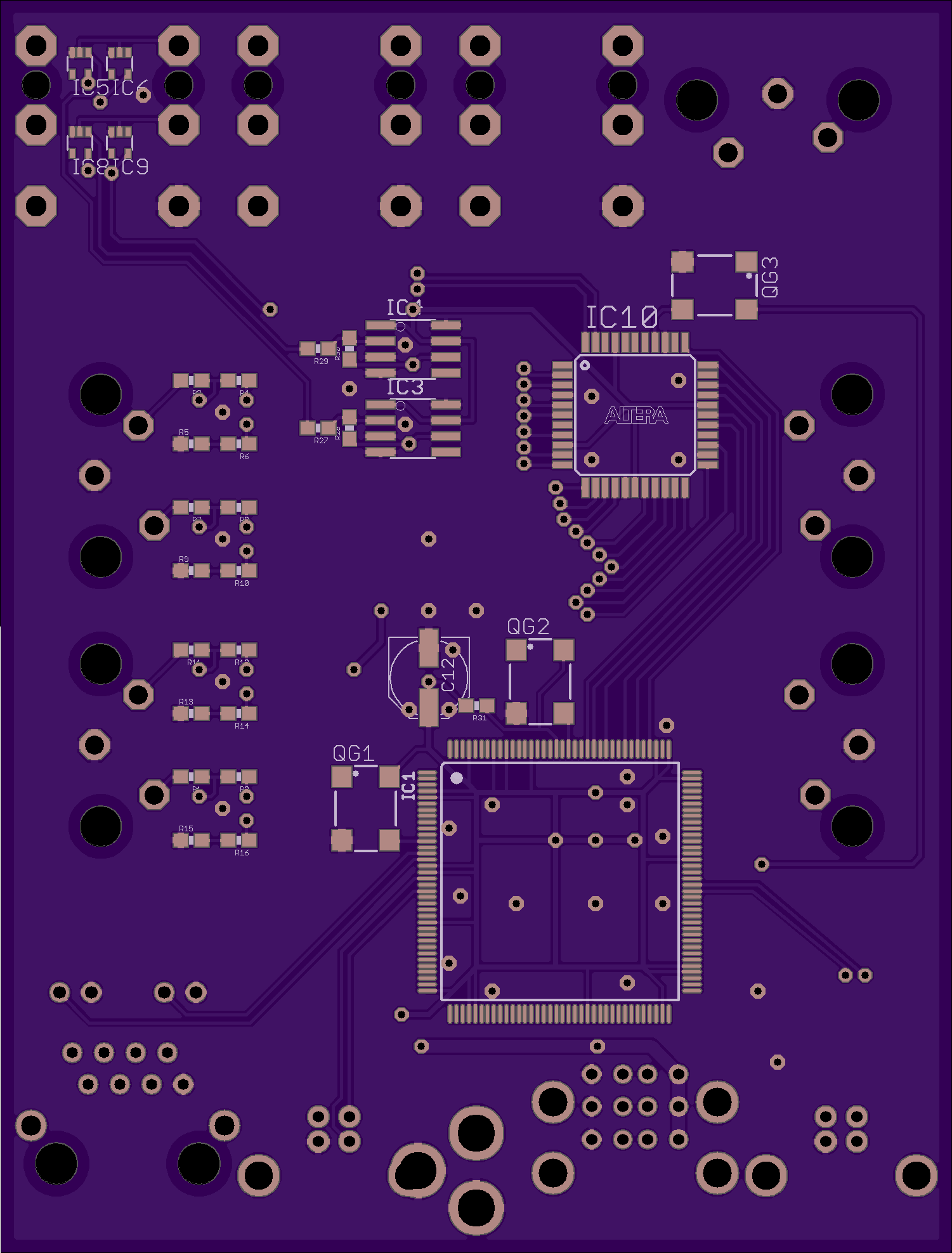

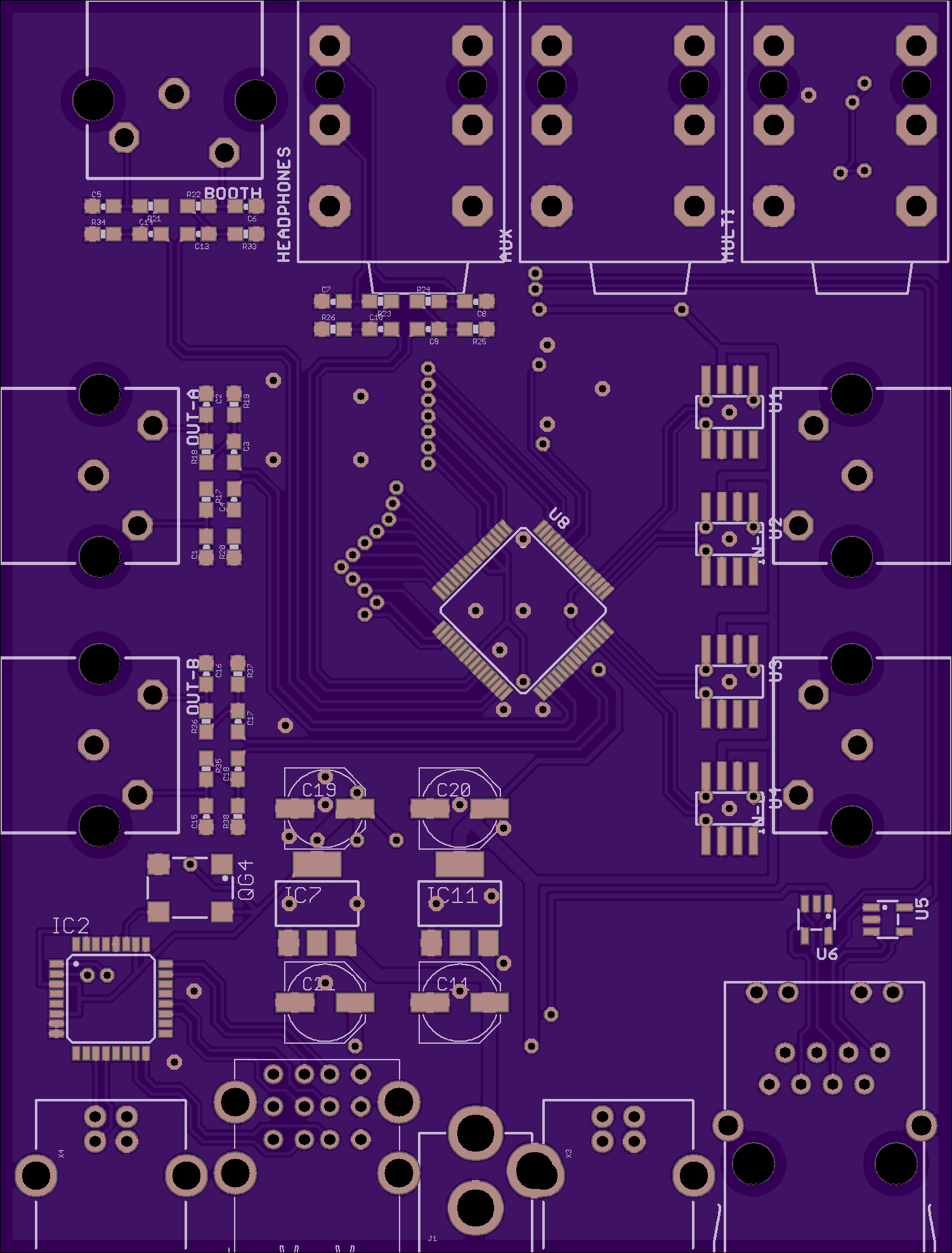

External Sound Card
