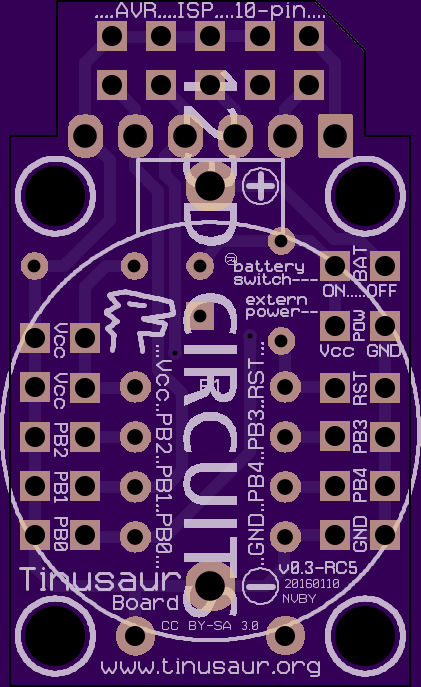

Tinusaur Board v0.3 RC5
by
boyanov.
2
layer board of
0.80x1.37
inches
(20.42x34.90
mm).
Shared on
January 10th, 2016 16:34.
Briefly, the Tinusaur is a minimal micro-controller hardware configuration based on Atmel AVR ATtiny family of products and more specifically those with DIP-8 case such as ATtiny25/ATtiny45/ATtiny85, ATtiny13 as well as their variations.
The home of the Tinusaur is at this address: http://tinusaur.org
The goal of the Tinusaur project is to have a simple, cheap and accessible quick-start platform for everyone interested in learning and creating things.

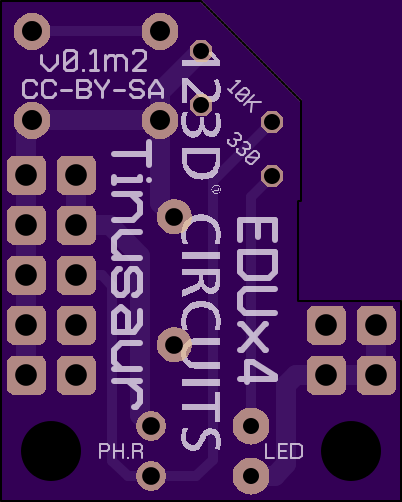

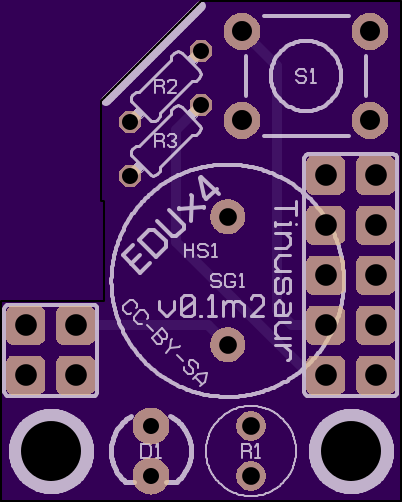

Tinusaur Shield EDUx4 8x10 v0.1 m2
by
boyanov.
2
layer board of
0.80x1.00
inches
(20.42x25.50
mm).
Shared on
November 22nd, 2015 22:46.
This is an educational shield for the Tinusaur board that has 4 I/O components - 2 input and 2 output; of which 3 analog and 3 digital:
- LED (output, analog or digital)
- Buzzed (output, analog or digital)
- Button (input, digital)
- Photo-resistor (input, analog)
Briefly, the Tinusaur is a minimal micro-controller hardware configuration based on Atmel AVR ATtiny family of products and more specifically those with DIP-8 case such as ATtiny25/ATtiny45/ATtiny85, ATtiny13 as well as their variations.
It’s a kit. You assemble it yourself.
The home of the Tinusaur is at this address: http://tinusaur.org
The goal of the Tinusaur project is to have a simple, cheap, accessible, quick-start platform for everyone interested in learning and creating things.

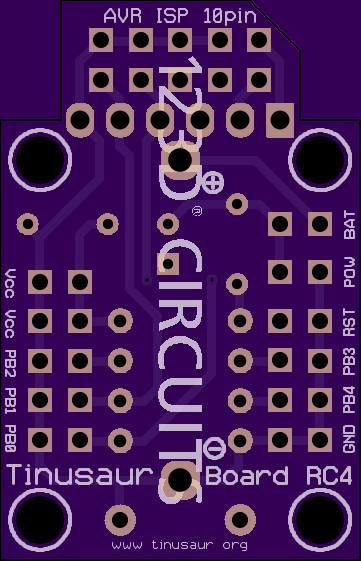

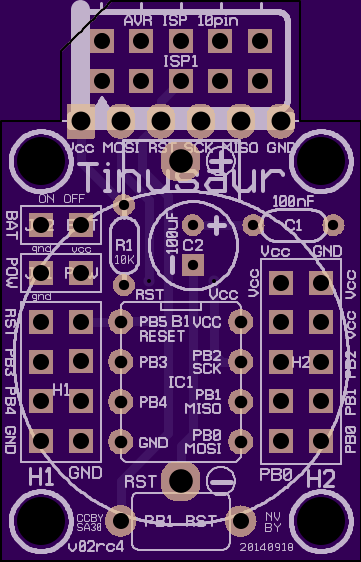

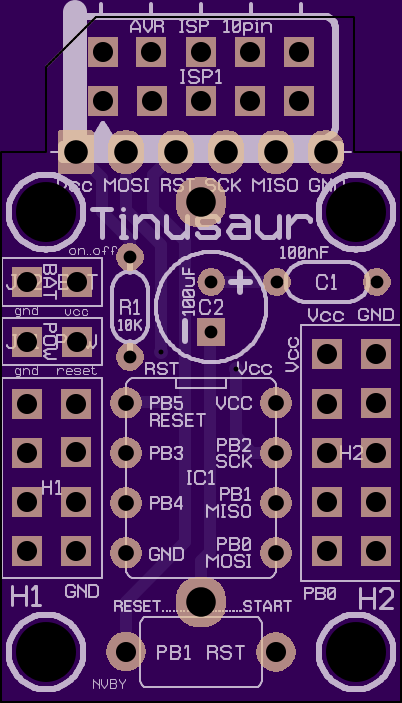

Tinusaur Board v0.2 RC4
by
boyanov.
2
layer board of
0.90x1.40
inches
(22.96x35.66
mm).
Shared on
October 1st, 2014 02:43.
The Tinusaur - a minimal micro-controller hardware configuration based on Atmel AVR ATtiny85

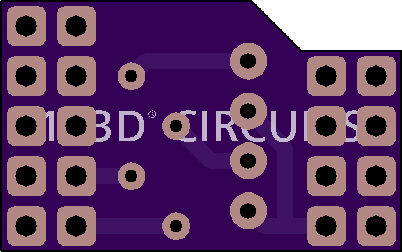

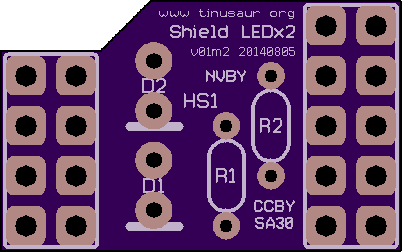

Tinusaur Shield LEDx2 8x5 v0.1 m2
by
boyanov.
2
layer board of
0.80x0.50
inches
(20.42x12.80
mm).
Shared on
August 5th, 2014 08:39.
Tinusaur Shield LED x2 v0.1 m2

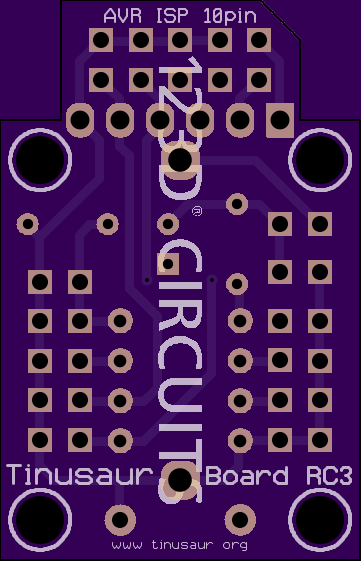

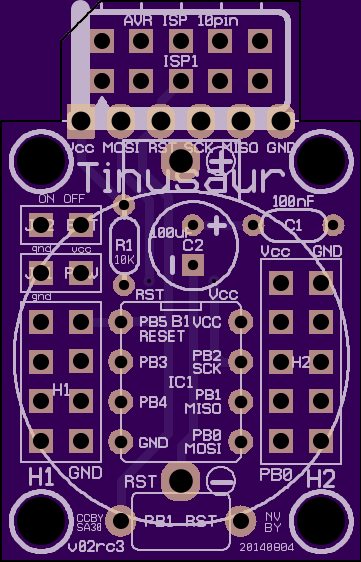

Tinusaur Board v0.2 RC3a
by
boyanov.
2
layer board of
0.90x1.40
inches
(22.96x35.66
mm).
Shared on
August 4th, 2014 12:11.
Briefly, the Tinusaur is a minimal micro-controller hardware configuration based on Atmel AVR ATtiny family of products and more specifically those with DIP-8 case such as ATtiny25/ATtiny45/ATtiny85, ATtiny13 as well as their variations.
The home of the Tinusaur is at this address: http://tinusaur.wordpress.com
The goal of the Tinusaur project is to have a simple, cheap and accessible quick-start platform for everyone interested in learning and creating things.
