Profile for boyanov
Shared projects

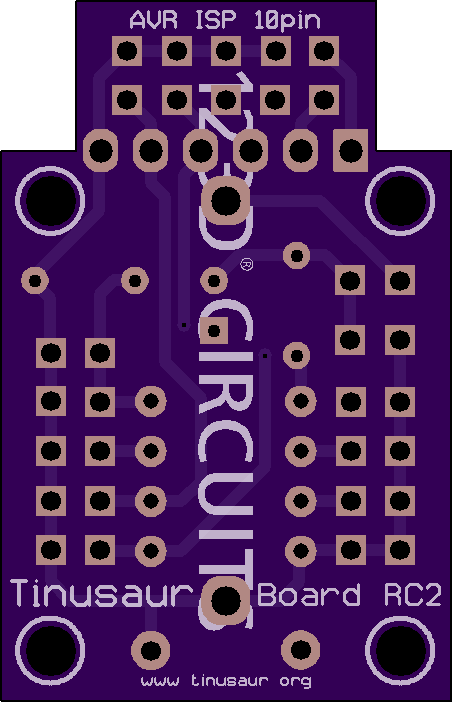

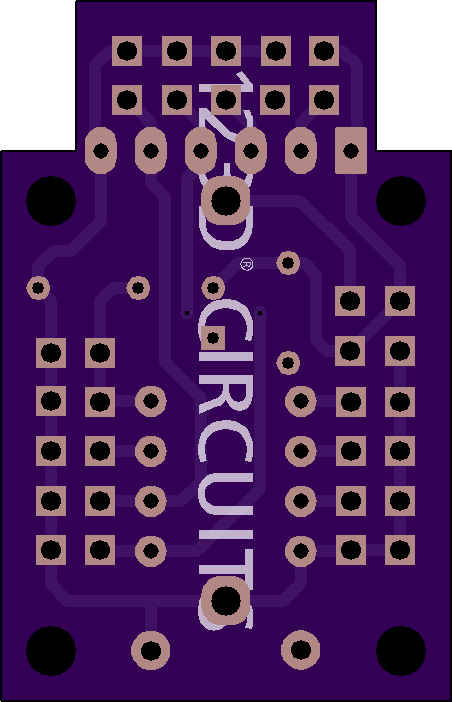

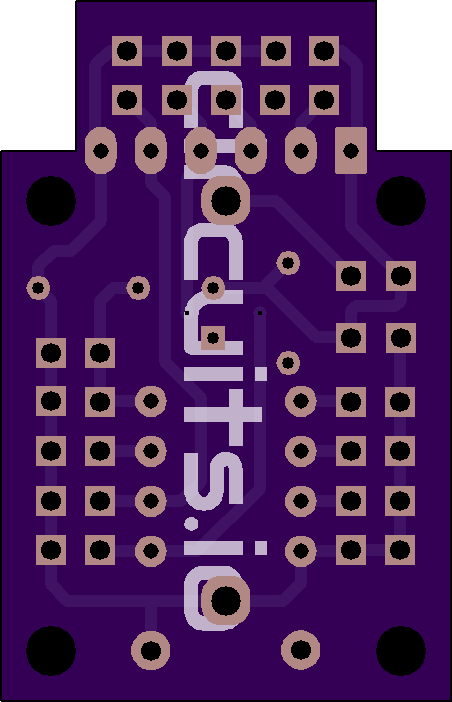

Tinusaur Board v0.2 RC2a copy
by
boyanov.
2
layer board of
0.90x1.40
inches
(22.96x35.66
mm).
Shared on
July 16th, 2014 07:18.
Briefly, the Tinusaur is a minimal micro-controller hardware configuration based on Atmel AVR ATtiny family of products and more specifically those with DIP-8 case such as ATtiny25/ATtiny45/ATtiny85, ATtiny13 as well as their variations.
The home of the Tinusaur is at this address: http://tinusaur.wordpress.com
The goal of the Tinusaur project is to have a simple, cheap and accessible quick-start platform for everyone interested in learning and creating things.

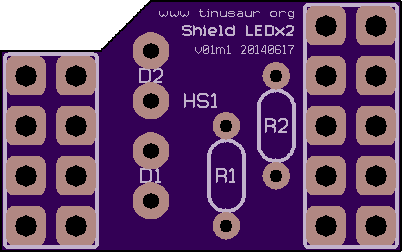

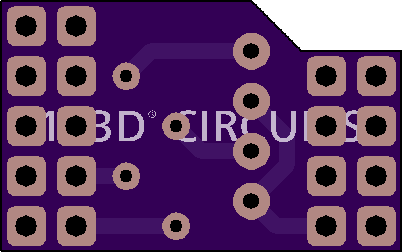

Tinusaur Shield LEDx2 8x5 v0.1 m1
by
boyanov.
2
layer board of
0.80x0.50
inches
(20.42x12.80
mm).
Shared on
June 17th, 2014 13:58.
Tinusaur Shield LEDx2 8x5 v0.1 m1

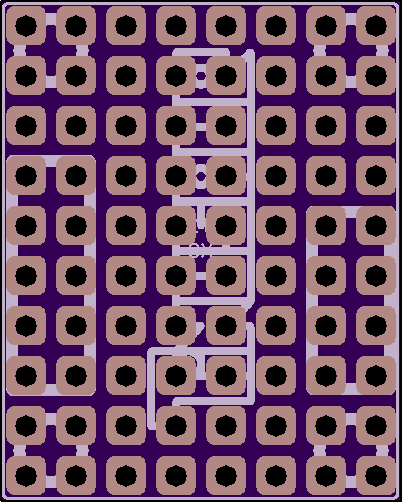

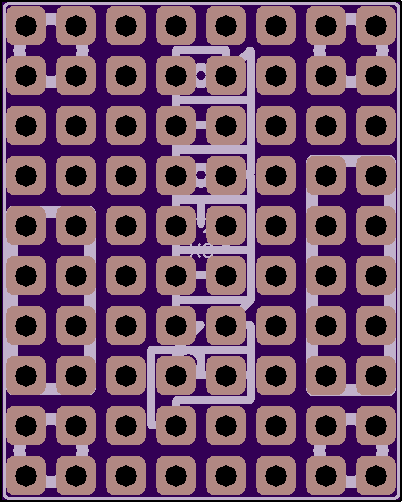

Tinusaur Proto S v0.1 m1
by
boyanov.
2
layer board of
0.80x1.00
inches
(20.42x25.50
mm).
Shared on
February 14th, 2014 08:27.
This is prototyping board for the Tinusaur project board.
The Tinusaur is a minimal micro-controller hardware configuration based on Atmel AVR ATtiny family of products and more specifically those with DIP-8 case such as ATtiny25/ATtiny45/ATtiny85, ATtiny13 as well as their variations.
The home of the Tinusaur is at this address: tinusaur.wordpress.com
Tinusaur Board v0.2 RC1
by
boyanov.
2
layer board of
0.90x1.40
inches
(22.96x35.66
mm).
Shared on
February 8th, 2014 14:15.
The Tinusaur - a minimal micro-controller hardware configuration based on Atmel AVR ATtiny family of products and more specifically those with DIP-8 case such as ATtiny25/ATtiny45/ATtiny85, ATtiny13 as well as their variations.
Circuit is available at 123d.circuits.io
The home of the Tinusaur is at this address: tinusaur.wordpress.com

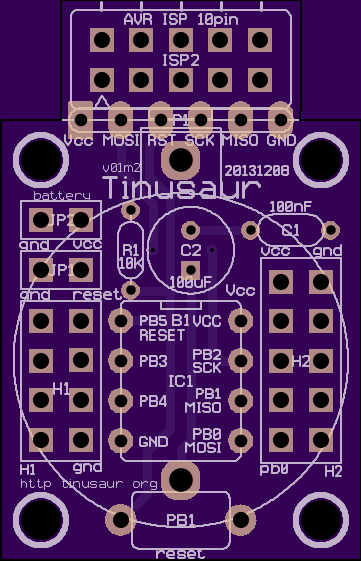

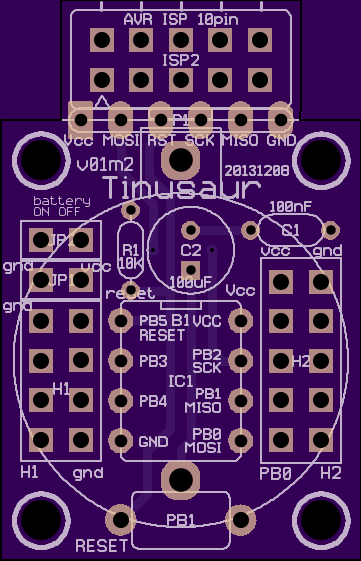

Tinusaur Board v0.1 m2
by
boyanov.
2
layer board of
0.90x1.40
inches
(22.96x35.66
mm).
Shared on
December 8th, 2013 21:13.
The Tinusaur - a minimal micro-controller hardware configuration based on Atmel AVR ATtiny family of products and more specifically those with DIP-8 case such as ATtiny25/ATtiny45/ATtiny85, ATtiny13 as well as their variations.
Circuit is available at 123d.circuits.io
The home of the Tinusaur is at this address: http://tinusaur.wordpress.com
