Shared projects

Watch

by brunob45.

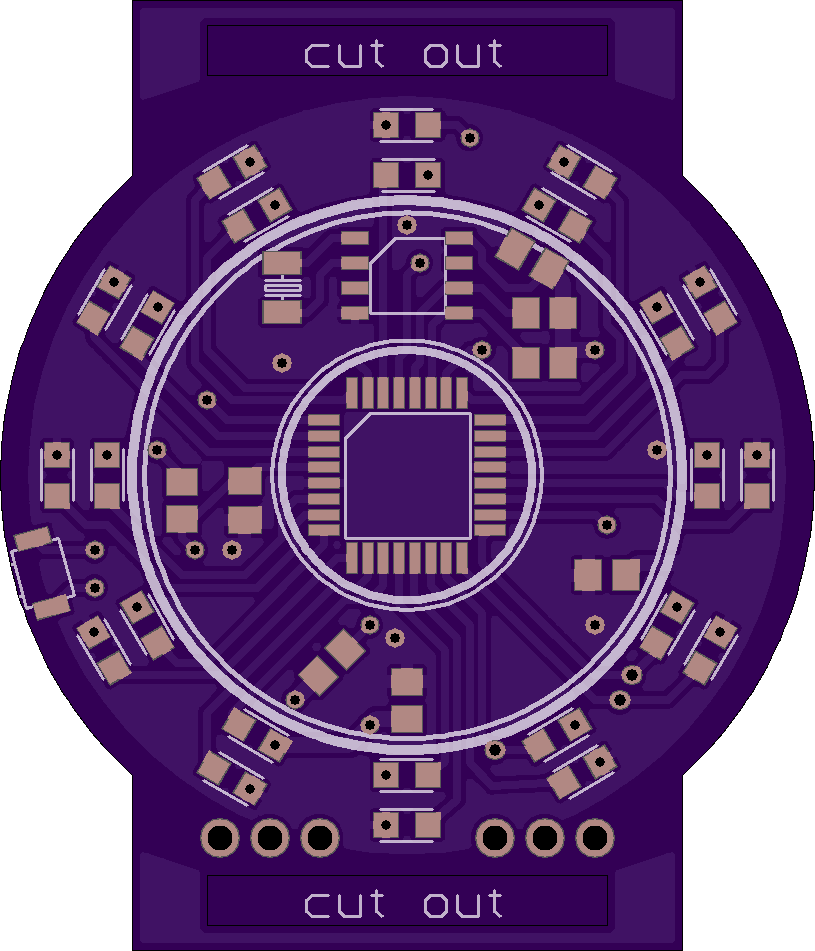

Top

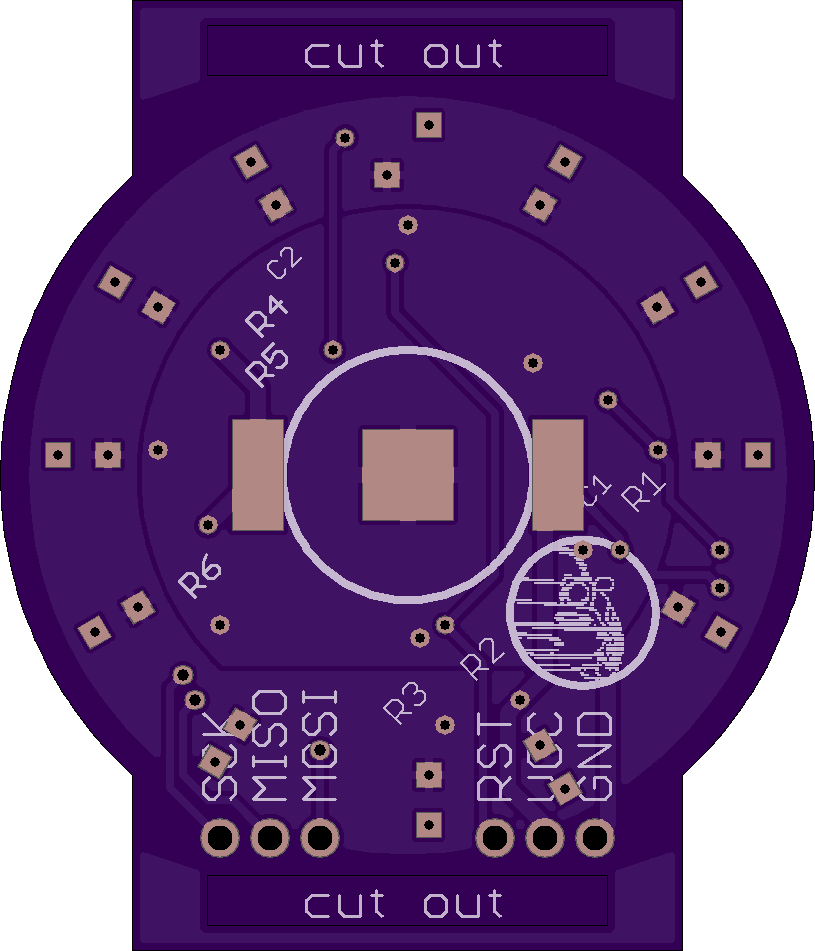

Bottom

2 layer board of 1.63x1.90 inches (41.35x48.29 mm).
Shared on December 20th, 2016 07:02.

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

TPS switch to ADC

by brunob45.
Top
Bottom

2 layer board of 0.84x0.60 inches (21.26x15.24 mm).
Shared on October 19th, 2016 20:49.

using 2n2222 transistors. Connect Vref to : WOT -> SIG @ 4.0V; IDLE -> SIG @ 3.0V; others -> SIG @ 3.5V. Unmarked resistors are pull-ups for transistors, value to be chosen.

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

MS2_MODS_BB

by brunob45.
Top
Bottom

2 layer board of 1.11x1.25 inches (28.27x31.78 mm).
Shared on October 19th, 2016 20:49.

Mod board for MS2 v3.57. Needed for installation in ‘90-97 Mazda Miata.
