PanaCDC v6

by carl.
Top
Bottom

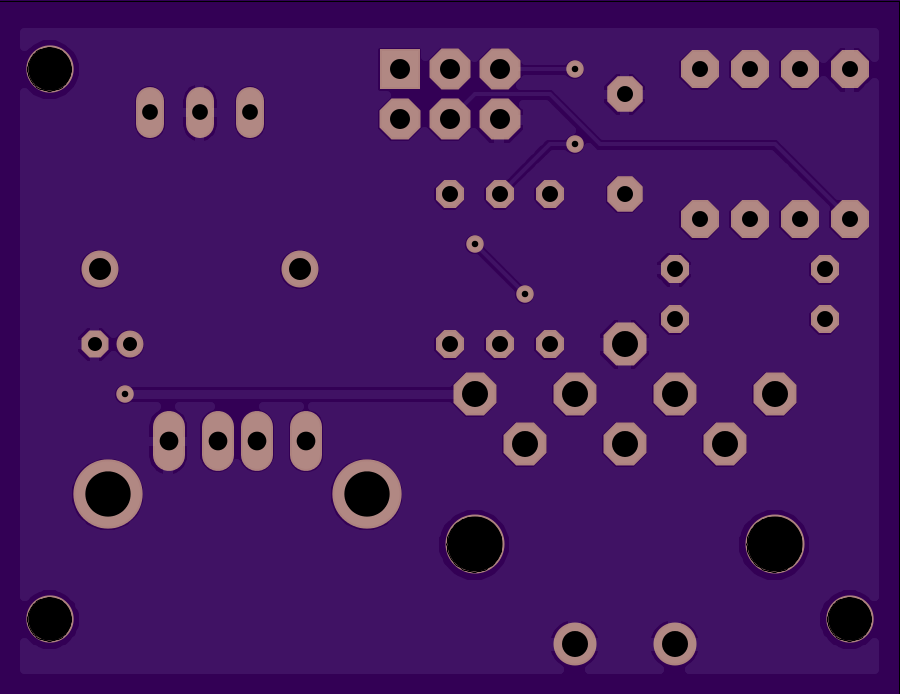

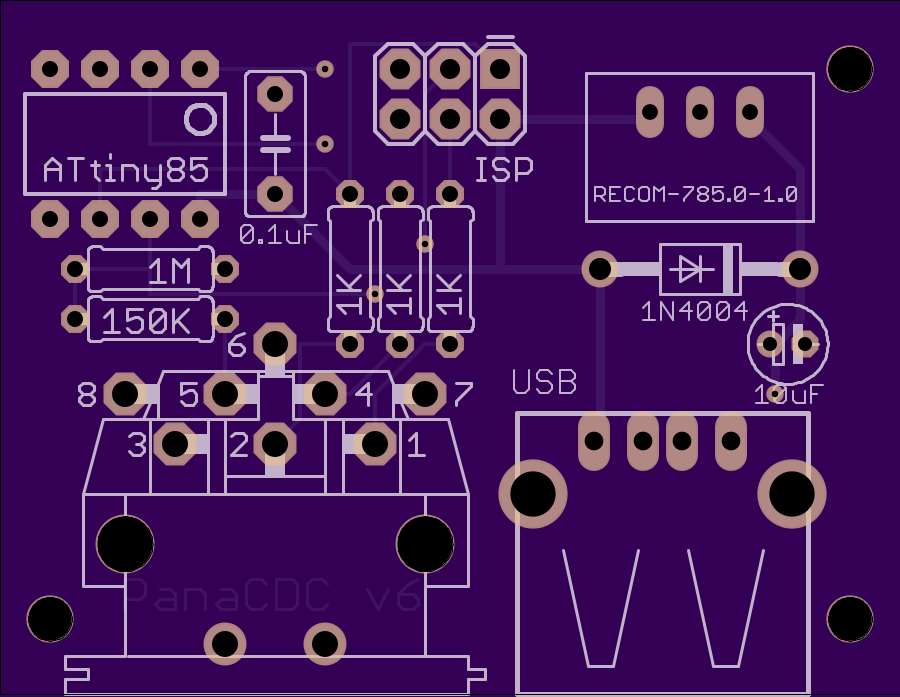

2 layer board of 1.80x1.39 inches (45.72x35.26 mm).
Shared on May 9th, 2016 06:59.

Panasonic CDC emulator.

Software and description here.

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

Zigbit 2.4GHz DIP v1.2

by carl.
Top
Bottom

2 layer board of 1.00x1.85 inches (25.40x46.99 mm).
Shared on September 14th, 2013 17:39.

DIP adapter for Atmel’s 2.4GHz Zigbit module.

Details and Eagle schematic can be found here.

Order board. Download. Permalink. Embed order link.
