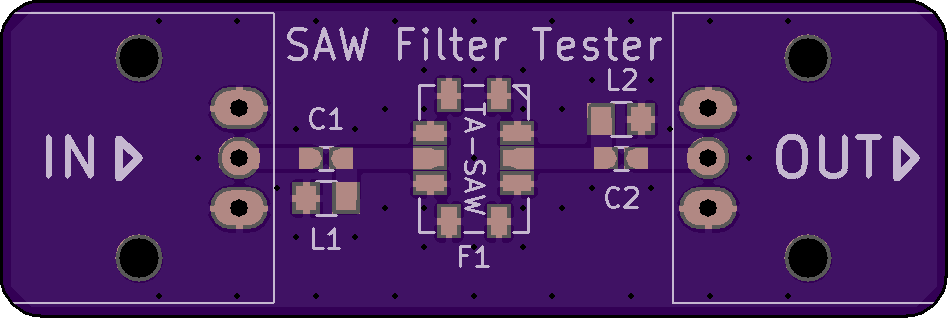

SAW Filter Tester

by

2 layer board of 1.90x0.64 inches (48.16x16.15 mm).
Shared on November 30th, 2016 05:45.

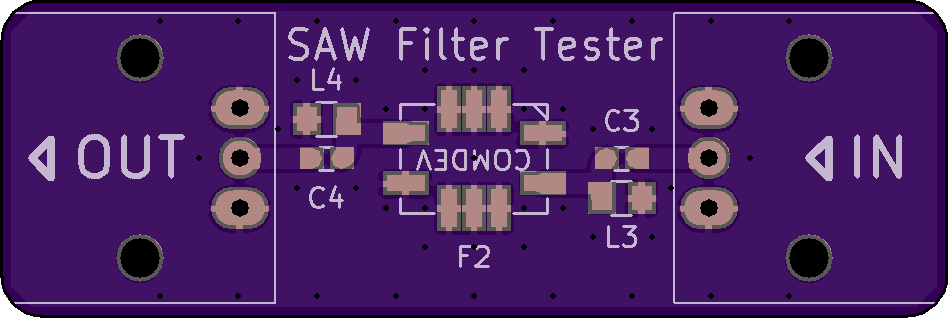

Breakout board to test TAI-SAW and COMDEV 7x5mm SAW filters

Copy this HTML into your page to embed a link to order this shared project

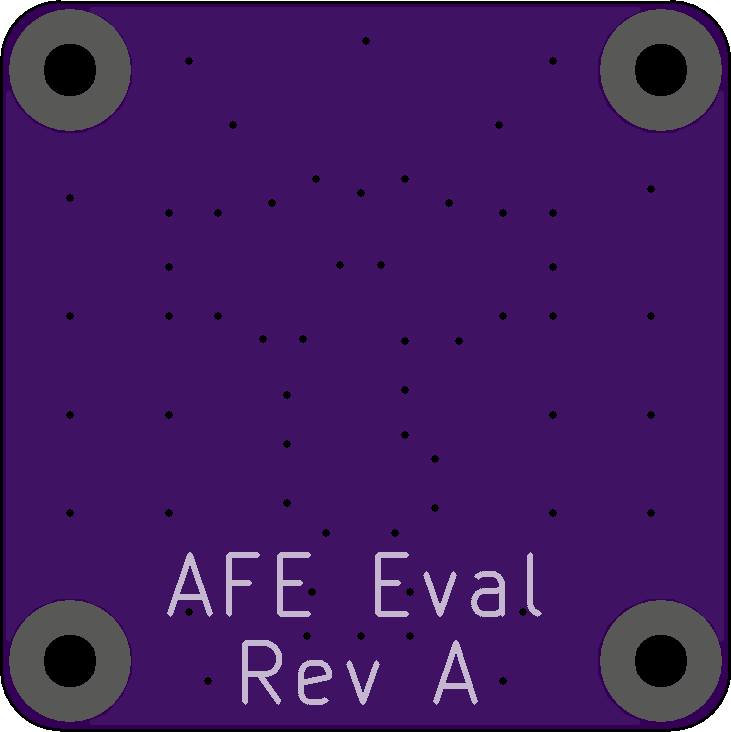

AFE Eval Rev A

by

2 layer board of 1.46x1.46 inches (37.16x37.16 mm).
Shared on June 13th, 2016 05:27.

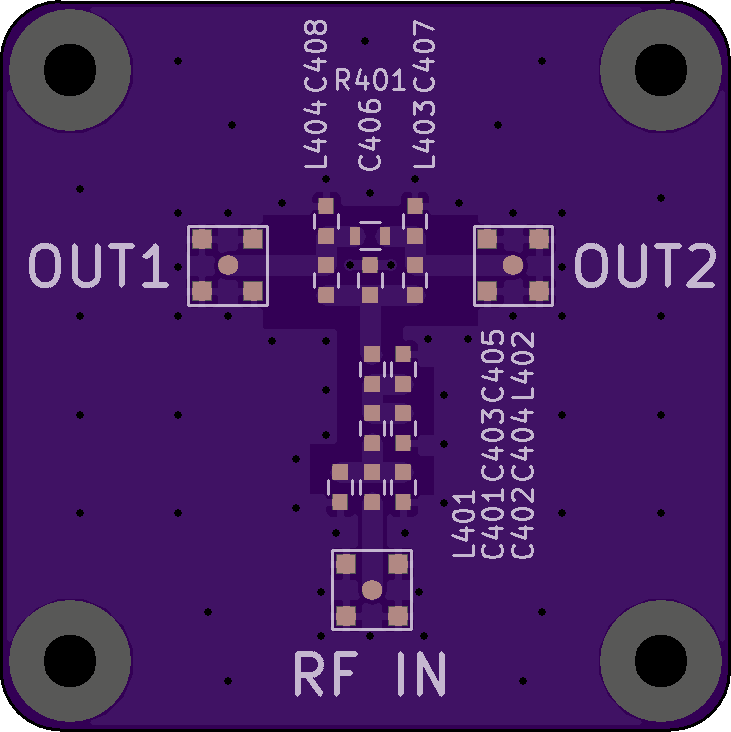

PCB for verifying bandpass filter followed by a splitter. 0603 passives with MMCX connectors (Molex 73415-2061)

Copy this HTML into your page to embed a link to order this shared project

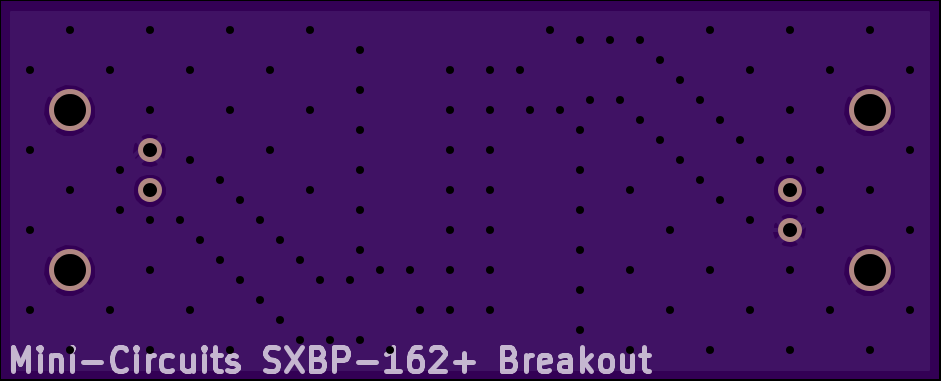

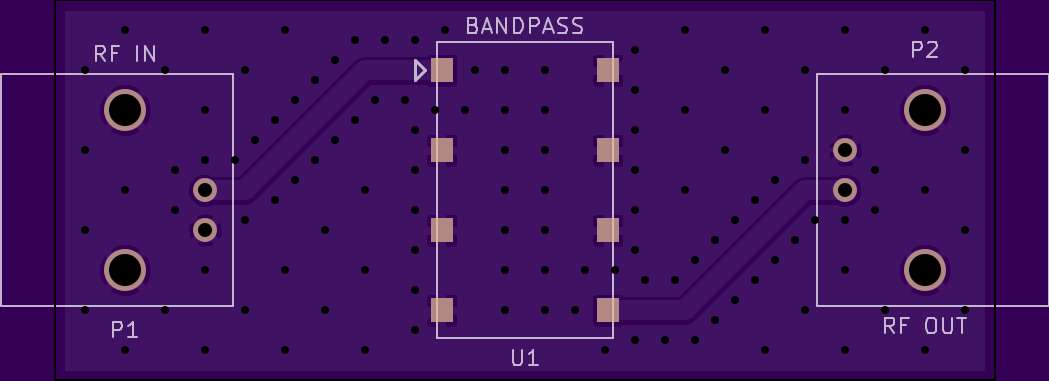

by

2 layer board of 2.35x0.95 inches (59.79x24.23 mm).
Shared on September 16th, 2014 01:34.

Copy this HTML into your page to embed a link to order this shared project

by

2 layer board of 1.96x1.56 inches (49.89x39.73 mm).
Shared on May 6th, 2014 17:42.

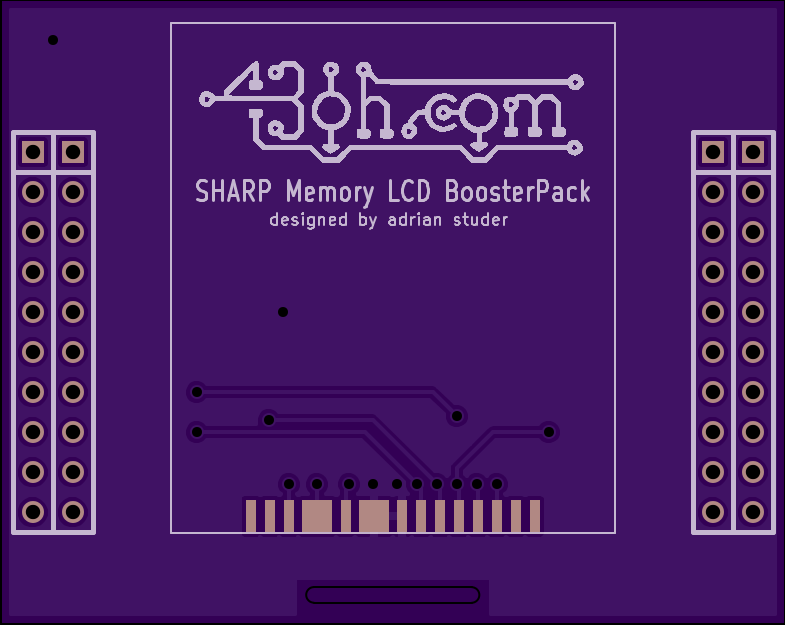

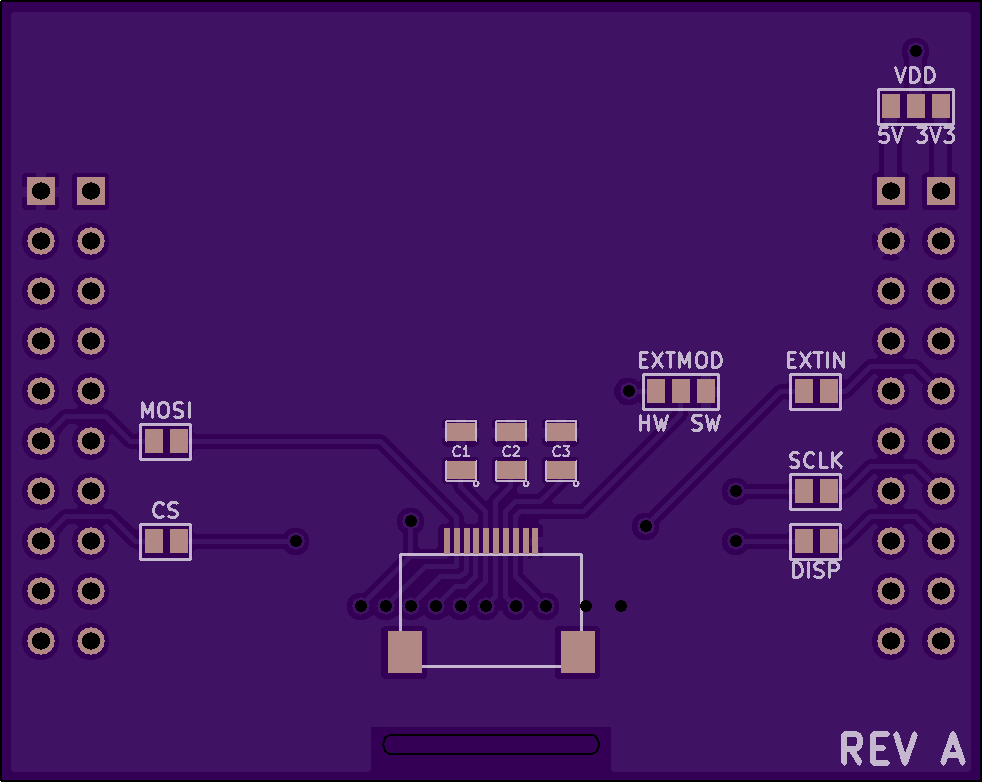

BoosterPack for TI LaunchPad. For more information see project log on 43oh

Copy this HTML into your page to embed a link to order this shared project

by

2 layer board of 1.00x0.90 inches (25.50x22.96 mm).
Shared on March 19th, 2014 15:05.

Breakout for Si4362 for building a basic AIS receiver. More on github and 43oh.

Copy this HTML into your page to embed a link to order this shared project
