Korg Polysix Overdrive Enabler wArduino

by chipaudette.

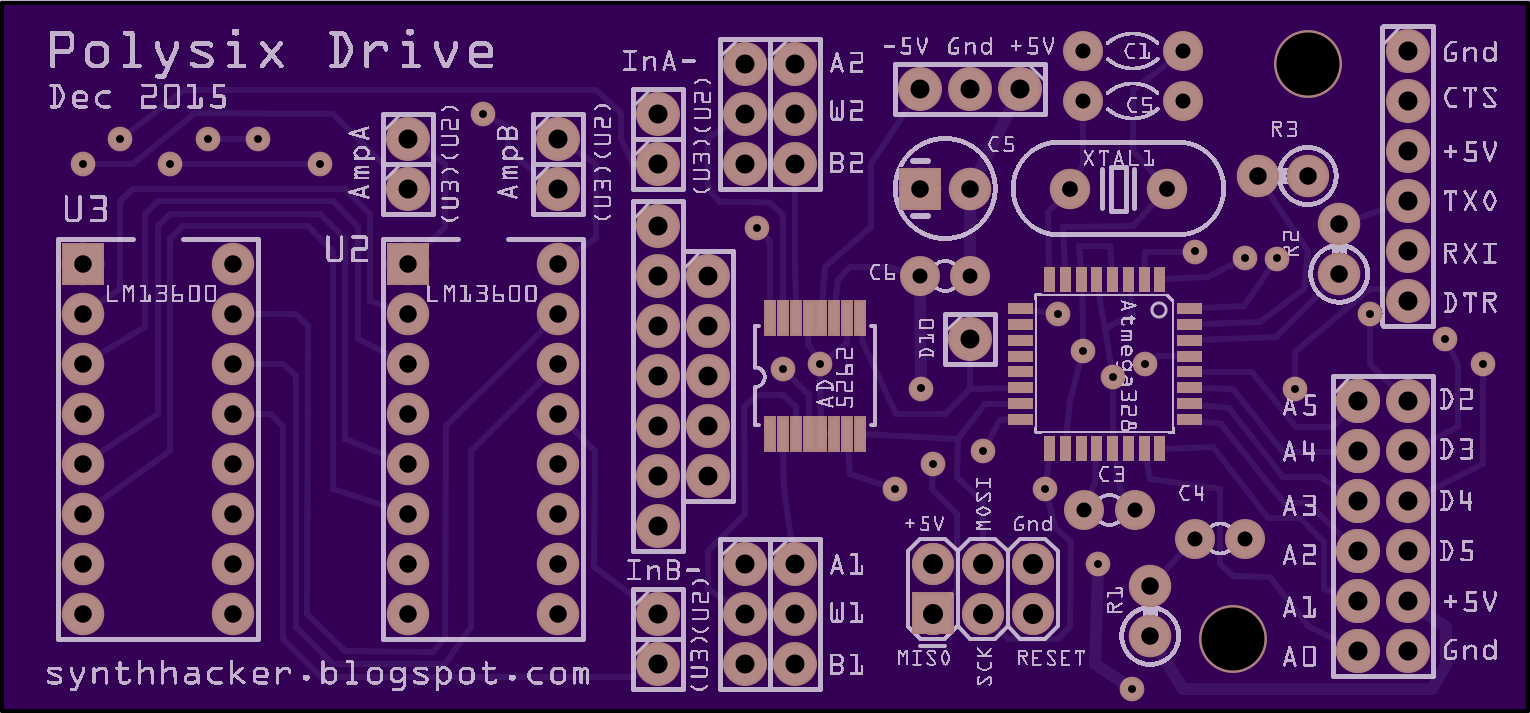

Top

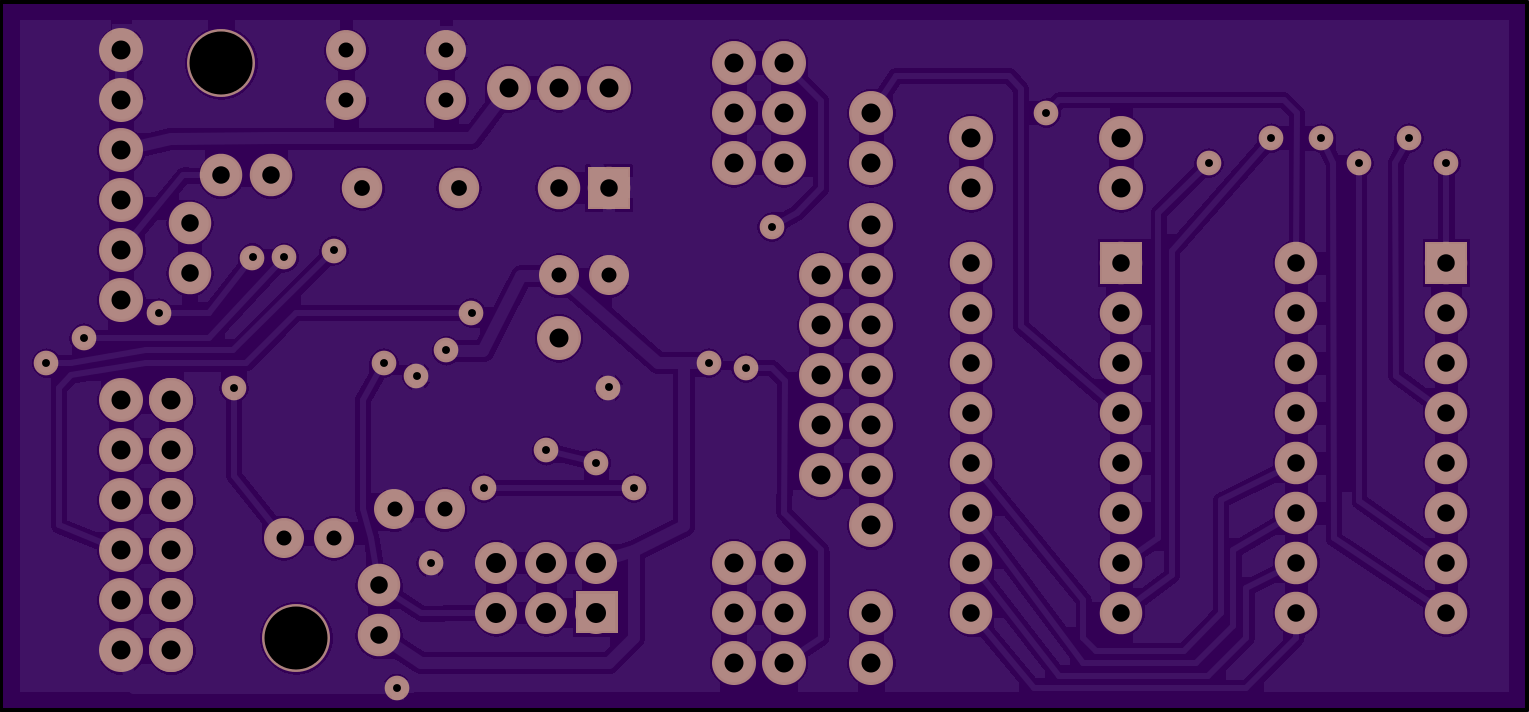

Bottom

2 layer board of 3.06x1.43 inches (77.70x36.20 mm).
Shared on December 14th, 2015 17:00.

Insert this to enable overdrive of one the Polysix’s LM13600 OTAs.

Includes a ATMEGA328 which (hopefully) will allow it to be programmed via the Arduino IDE like an Arduino Uno.

I received it. It works!

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

MCP4922 Breakout V1.0

by chipaudette.
Top
Bottom

2 layer board of 0.94x1.25 inches (23.83x31.75 mm).
Shared on September 3rd, 2013 02:27.

Breakout for MCP4922 2-channel, 12-bit DAC
