Shared projects

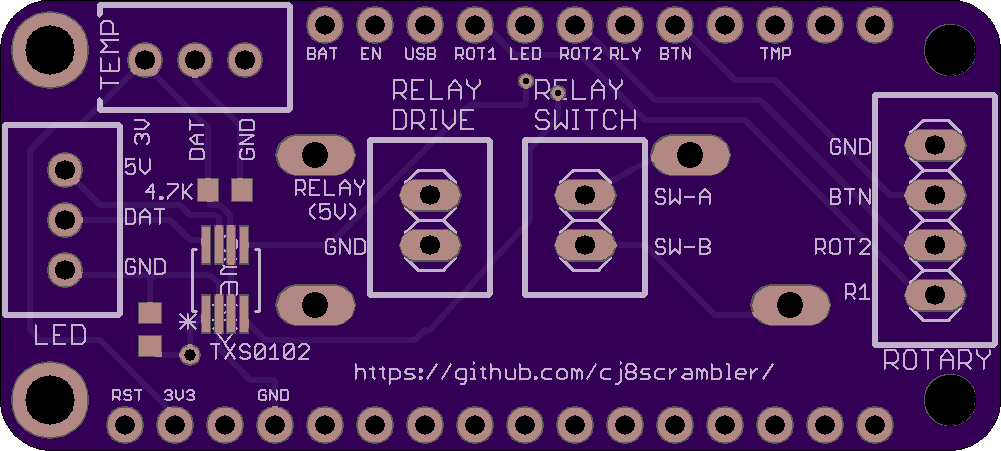

Networked temp controller accessory feather
by
cj8scrambler.
2
layer board of
2.00x0.90
inches
(50.80x22.89
mm).
Shared on
April 30th, 2017 22:41.
Board v 2.1 Accessory feather board for Huzzah based networked temperature controller. https://github.com/cj8scrambler/eagle/tree/master/HUZZAH_TEMP_CONTROL

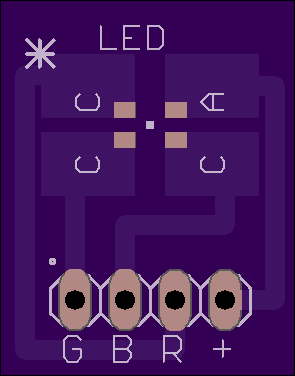

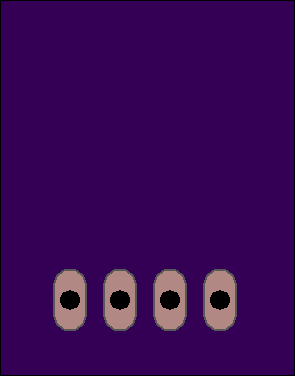

LED Carrier
by
cj8scrambler.
2
layer board of
0.59x0.75
inches
(14.91x19.05
mm).
Shared on
April 19th, 2017 21:49.
PLCC-4 LED breakout board

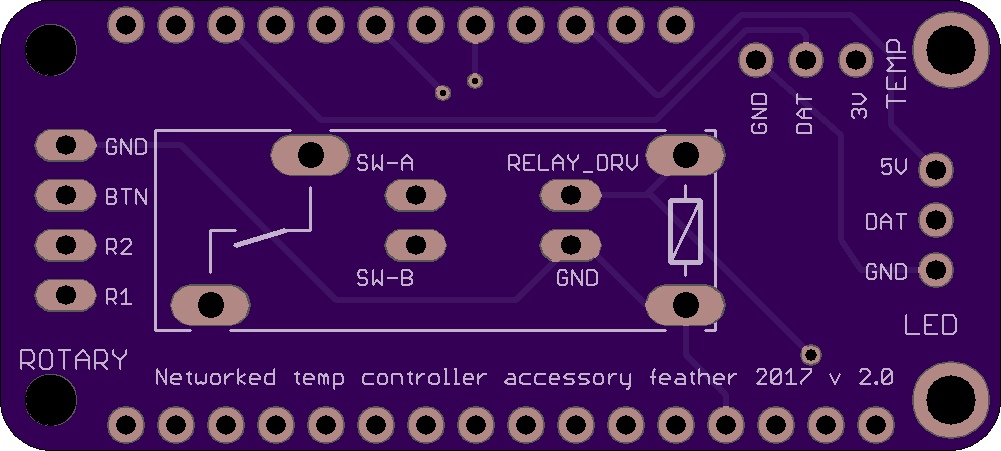

Networked temp controller accessory feather
by
cj8scrambler.
2
layer board of
2.00x0.90
inches
(50.80x22.89
mm).
Shared on
February 25th, 2017 22:36.
Board v 2.0 Accessory feather board for Huzzah based networked temperature controller. https://github.com/cj8scrambler/eagle/tree/master/HUZZAH_TEMP_CONTROL

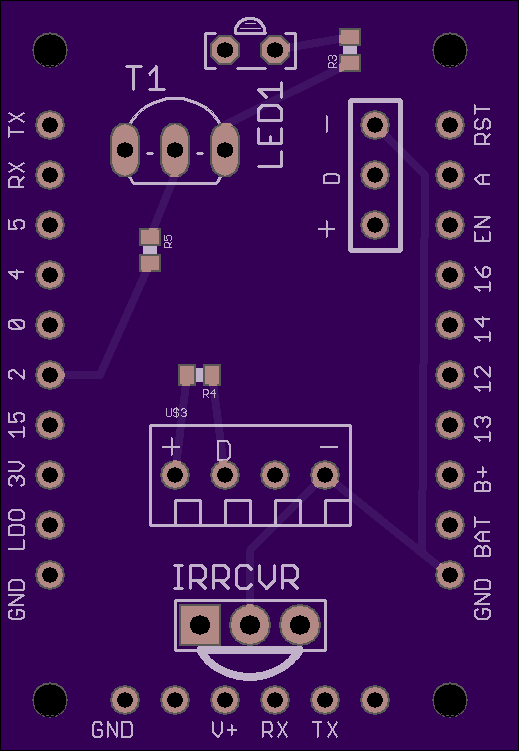

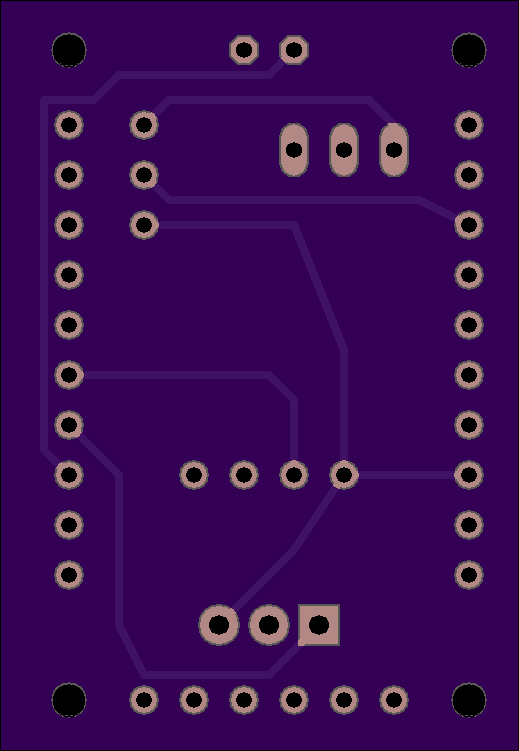

Huzzah IR/temp shield
by
cj8scrambler.
2
layer board of
1.04x1.50
inches
(26.34x38.10
mm).
Shared on
June 21st, 2016 03:12.
IR receive/xmit and temp shield for Huzzah

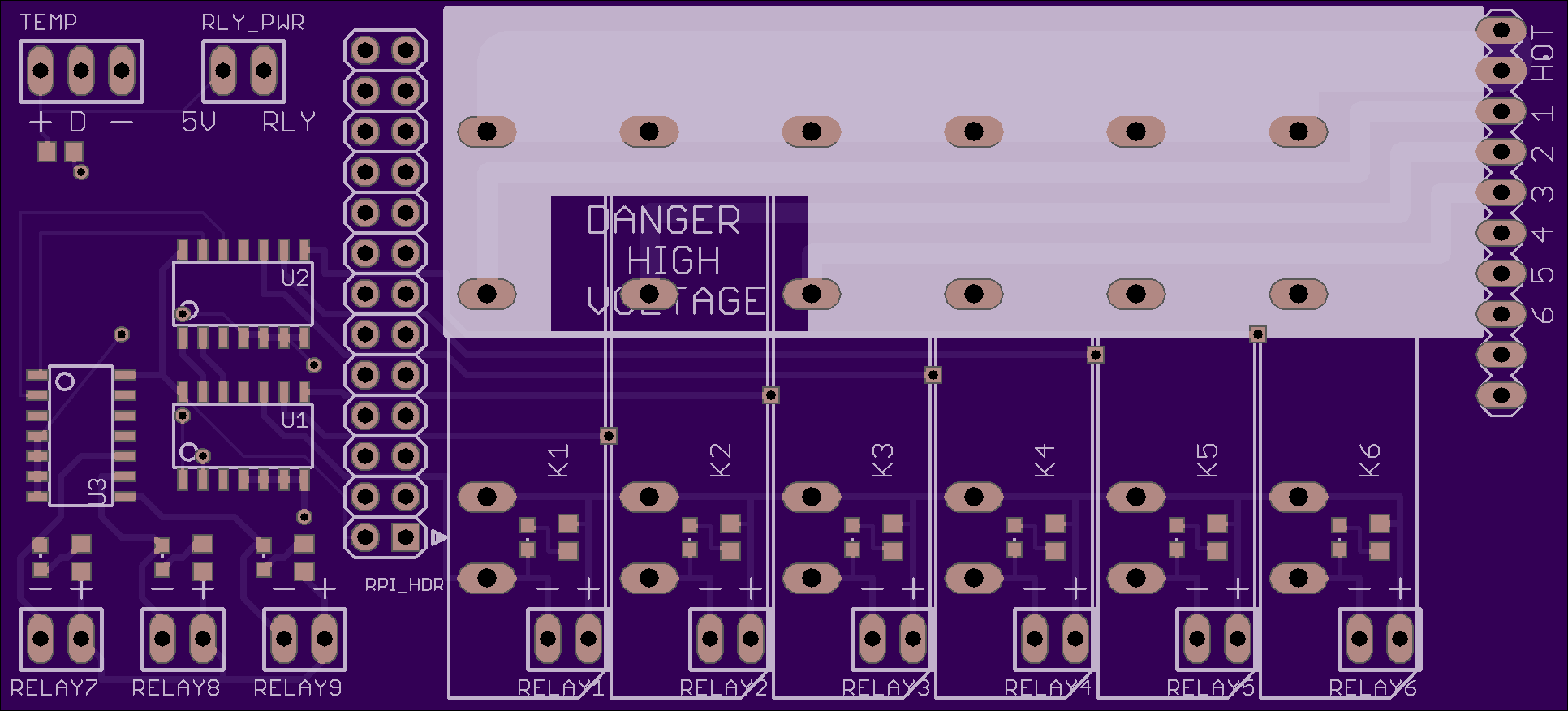

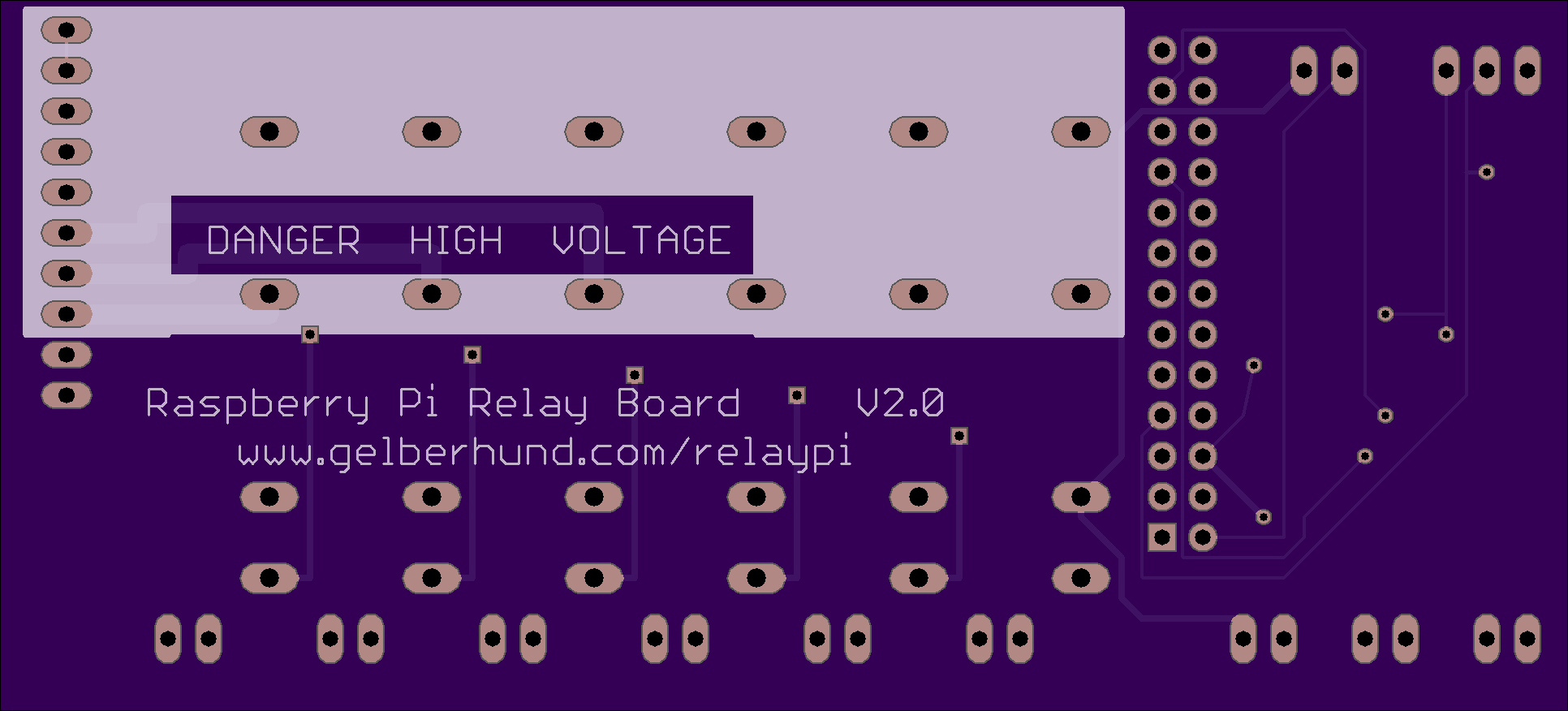

RPI_V2.0d
by
cj8scrambler.
2
layer board of
3.86x1.75
inches
(98.09x44.45
mm).
Shared on
November 26th, 2013 20:56.
Raspberry Pi 9 relay board and OWB temp sensor
