LEDClamper

by

2 layer board of 1.72x1.42 inches (43.61x35.99 mm).
Shared on October 12th, 2016 14:07.

Stick a IFE97 bright LED with fiber optic clamper, plus current limiting resistor (150 ohm) on a board that will fit Actobotics parts

Copy this HTML into your page to embed a link to order this shared project

Photodiode Puller

by

2 layer board of 1.22x1.02 inches (30.91x25.81 mm).
Shared on October 12th, 2016 14:04.

5x10^6V/A (adj) amp for IFD91 photodiode fiber housing

Copy this HTML into your page to embed a link to order this shared project

by

2 layer board of 0.57x0.77 inches (14.38x19.48 mm).
Shared on July 26th, 2016 18:04.

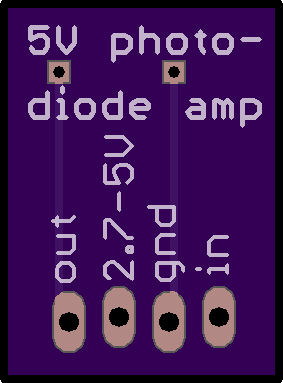

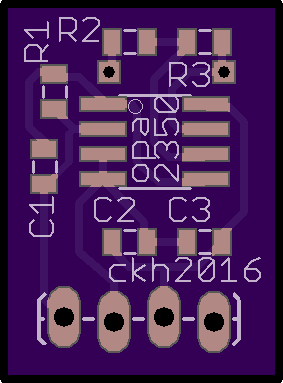

A 2 stage amplifier with gain 2.7e6 V/A. R1=180K, R2=3.3K, R3=47K, C1=1pF, C2=10uF, C3=0.1uF tested and working

Copy this HTML into your page to embed a link to order this shared project

by

2 layer board of 0.61x3.16 inches (15.52x80.29 mm).
Shared on August 3rd, 2013 12:19.

Cellular automata blinking light soldering project for large groups

Copy this HTML into your page to embed a link to order this shared project
