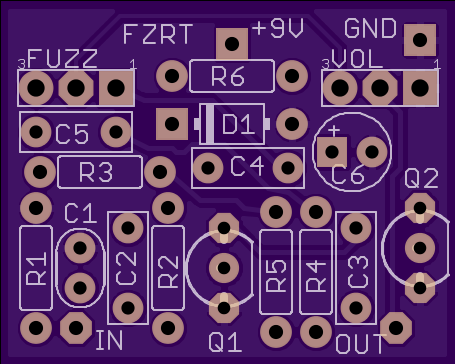

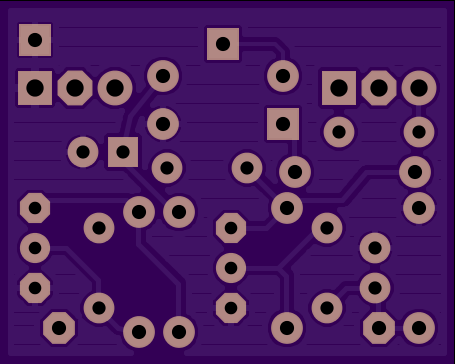

Fuzz Rite

by

2 layer board of 1.14x0.91 inches (28.91x23.11 mm).
Shared on March 15th, 2015 01:24.

Silicon Fuzz Rite. Schematic: https://db.tt/PiJ9SNxh

Copy this HTML into your page to embed a link to order this shared project

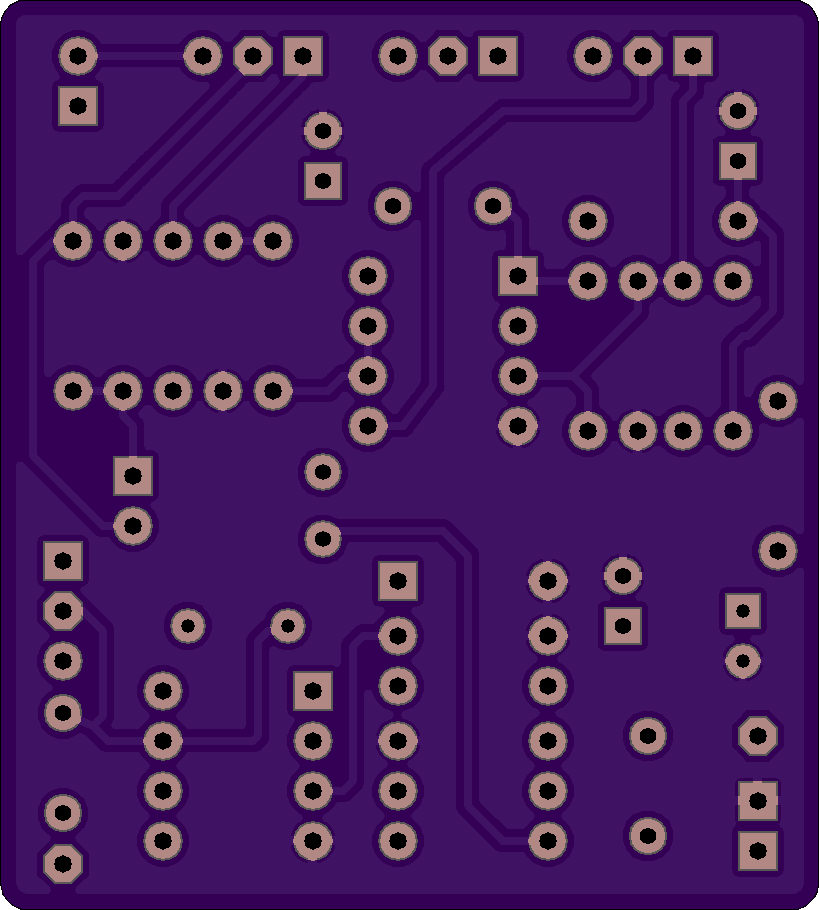

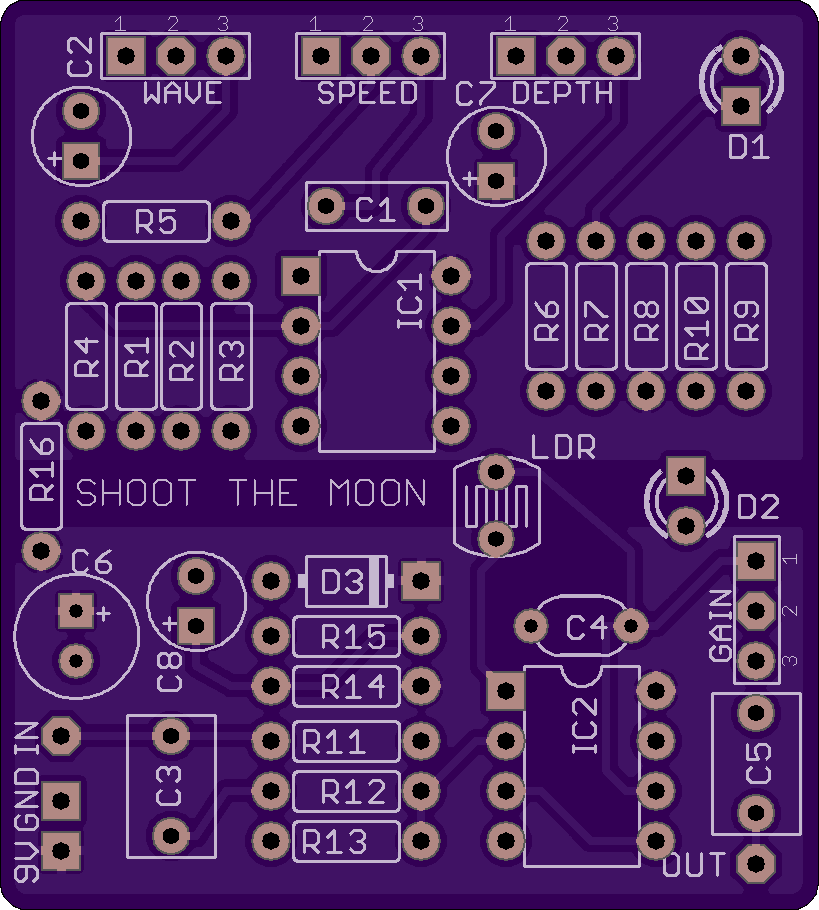

Shoot the Moon Tremolo

by

2 layer board of 1.64x1.82 inches (41.55x46.23 mm).
Shared on November 17th, 2013 23:17.

Schematic: https://www.dropbox.com/s/abkbpvu4uzdt770/STM_V1_Schematic.png

Copy this HTML into your page to embed a link to order this shared project

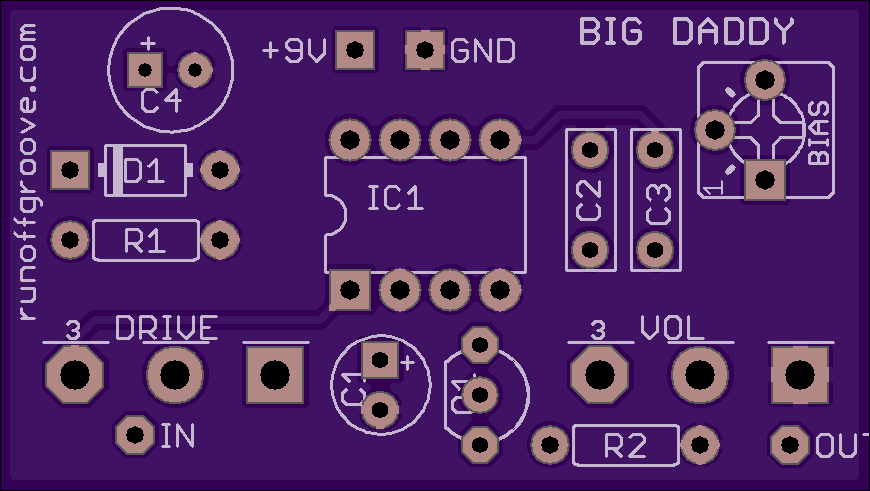

by

2 layer board of 1.74x0.98 inches (44.15x24.89 mm).
Shared on September 30th, 2013 01:47.

Schematic: https://dl.dropboxusercontent.com/u/40171261/OSHpark/bigdaddy-v1.png

Copy this HTML into your page to embed a link to order this shared project

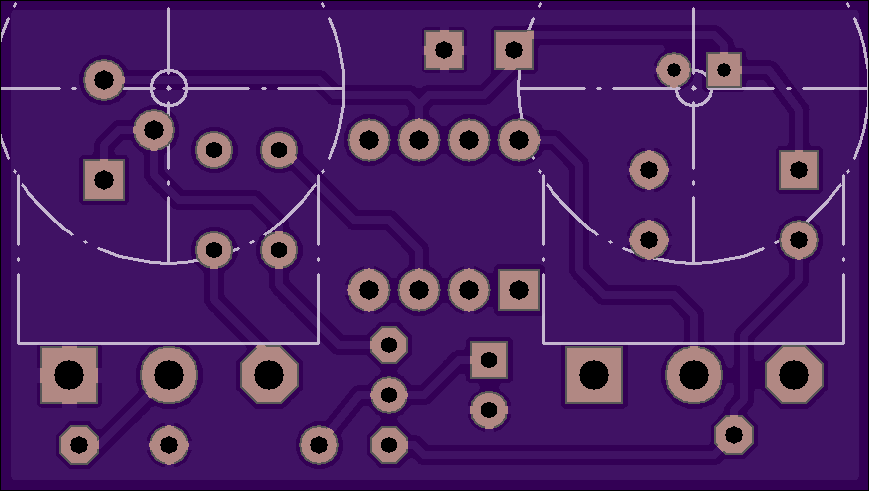

by

2 layer board of 1.58x1.42 inches (40.06x36.07 mm).
Shared on July 31st, 2013 14:10.

It’s a wah, fool!!! Schematic: https://dl.dropboxusercontent.com/u/40171261/OSHpark/Waht_V1-1_Schematic.png

Copy this HTML into your page to embed a link to order this shared project

by

2 layer board of 1.56x1.17 inches (39.55x29.72 mm).
Shared on July 31st, 2013 14:06.

Muff Fuzz-alike with a few mods. Schematic: https://dl.dropboxusercontent.com/u/40171261/OSHpark/Muffin.png

Copy this HTML into your page to embed a link to order this shared project
