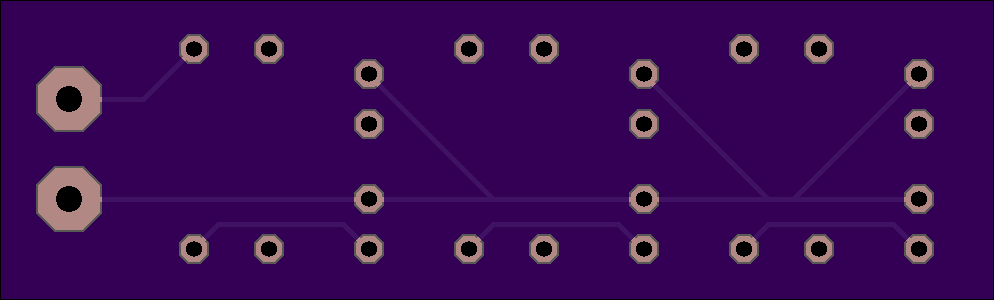

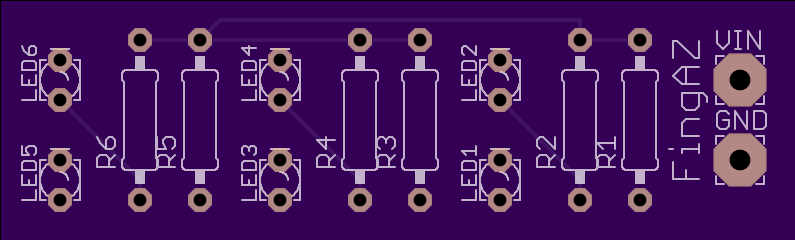

6 LED PCB

by dalgibbard.
Top
Bottom

2 layer board of 1.99x0.60 inches (50.50x15.24 mm).
Shared on July 9th, 2014 17:42.

Small PCB for mounting six LEDs

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

RasSwitcher v2.1

by dalgibbard.
Top
Bottom

2 layer board of 0.93x1.43 inches (23.72x36.22 mm).
Shared on September 22nd, 2013 21:01.

Raspberry Pi Mounted Relay Board. Just solder a 26pin Female pin header to the underside of the Board, then the referenced parts on top. Switch by pulling GPIO17 (Pin 11) High.

DGUnix.com - Raspberry Pi Relay Switcher
